Weider 8507 - Assembly: Arm Frame Assembly; Weight Guides, Arm Frame Bushings, and Bracket

7

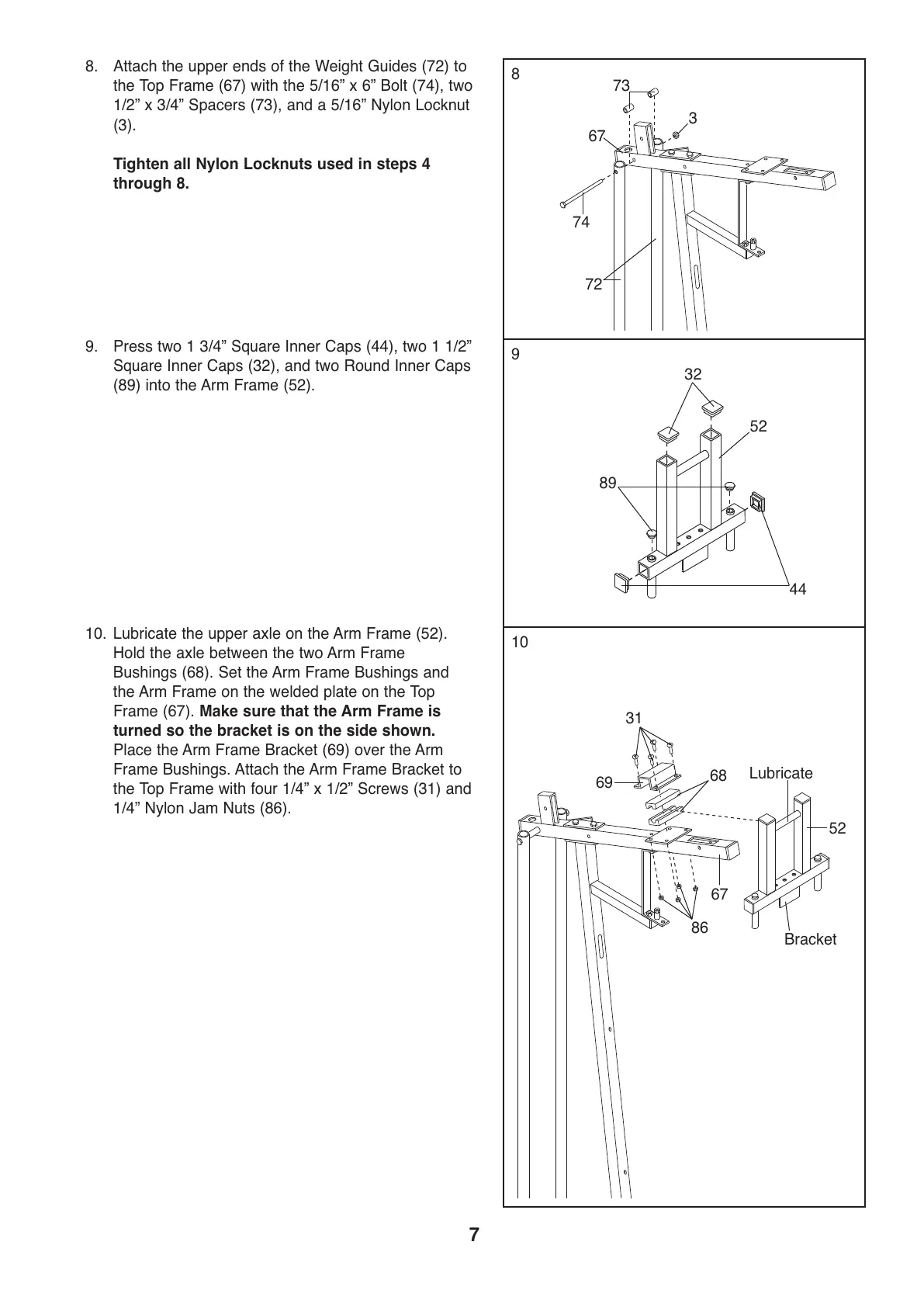

8. Attach the upper ends of the Weight Guides (72) to
the Top Frame (67) with the 5/16” x 6” Bolt (74), two
1/2” x 3/4” Spacers (73), and a 5/16” Nylon Locknut
(
3).
T
ighten all Nylon Locknuts used in steps 4
through 8.
9. Press two 1 3/4”
Square Inner Caps (44), two 1 1/2”
Square Inner Caps (32), and two Round Inner Caps
(89) into the Arm Frame (52).
10. Lubricate the upper axle on the Arm Frame (52).
Hold the axle between the two Arm Frame
Bushings (68). Set the Arm Frame Bushings and
the Arm Frame on the welded plate on the Top
Frame (67). Make sure that the Arm Frame is
turned so the bracket is on the side shown.
Place the Arm Frame Bracket (69) over the Arm
Frame Bushings. Attach the Arm Frame Bracket to
the Top Frame with four 1/4” x 1/2” Screws (31) and
1/4” Nylon Jam Nuts (86).
8
9
10
72
67
74
3
73
69
68
Lubricate
67
31
86
Bracket
52
89
52
32
44
