29. Rest the Seat Frame (36) on the indicated pin
in the Front Upright (42). Attach the Seat
Frame to the Front Upright with a 5/16Ó x
2 3/4Ó Carriage Bolt (14) and the Seat Knob
(40).
30. Press 3/4Ó Round Inner Caps (34) into the
ends of both 12 1/2Ó Pad Tubes (28).
Insert one 12 1/2Ó Pad Tube (28) into the
Seat Frame (36). Slide a 5 1/2Ó Pad (30) onto
each end of the Pad Tube.
Insert the other 12 1/2Ó Pad Tube (28) into the
Leg Lever (29). Slide a 5 1/2Ó Pad (30) onto
each end of the Pad Tube.
29
30
36
40
30
34
28
34
29
30
36

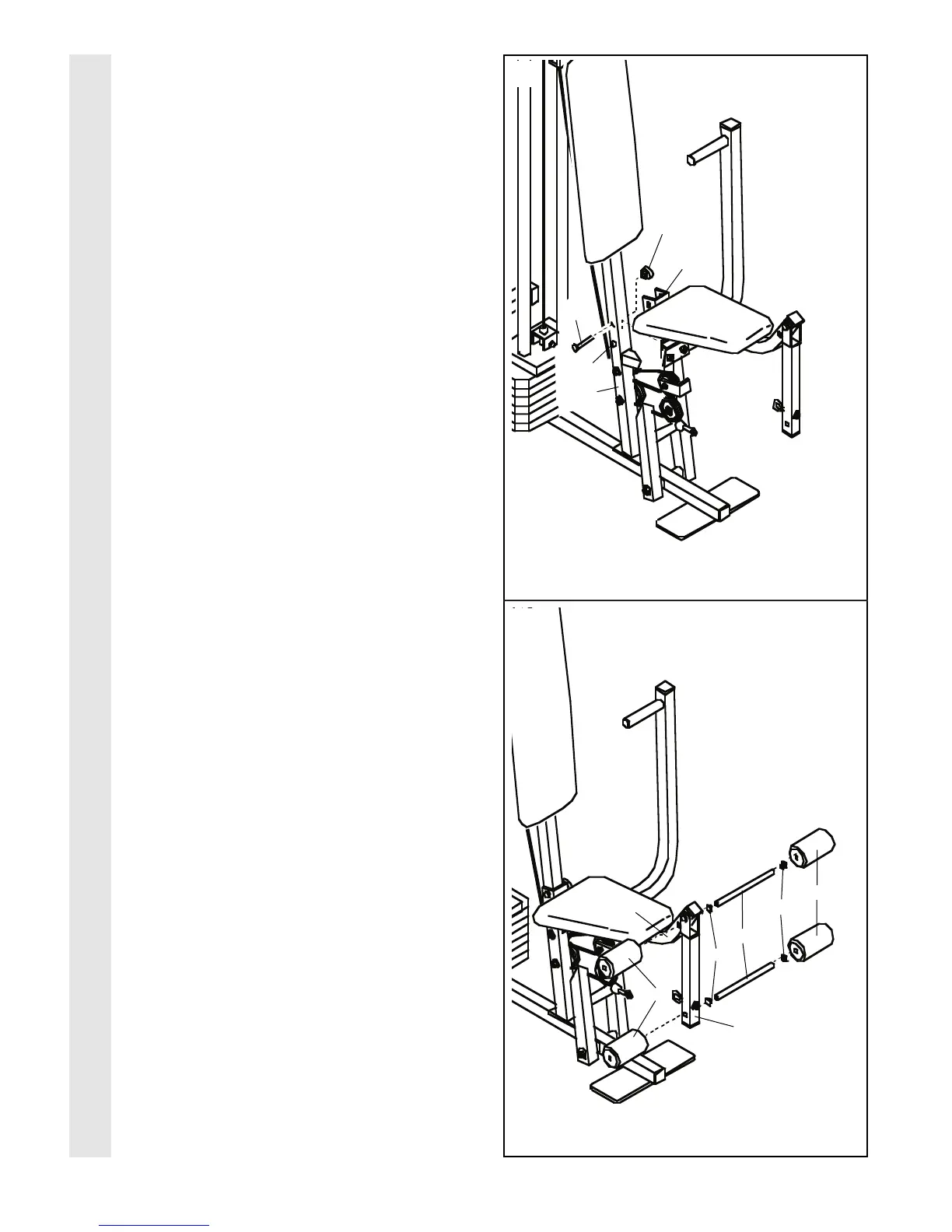

SEAT ASSEMBLY
Pin
42
14

Weider 8510 Specifications

General

Butterfly Station	Yes
Press Arm	Yes
High Pulley	Yes
Low Pulley	Yes
Leg Developer	Yes
Type	Home Gym
Resistance Type	Weight Stack
Weight Capacity	300 lbs.
