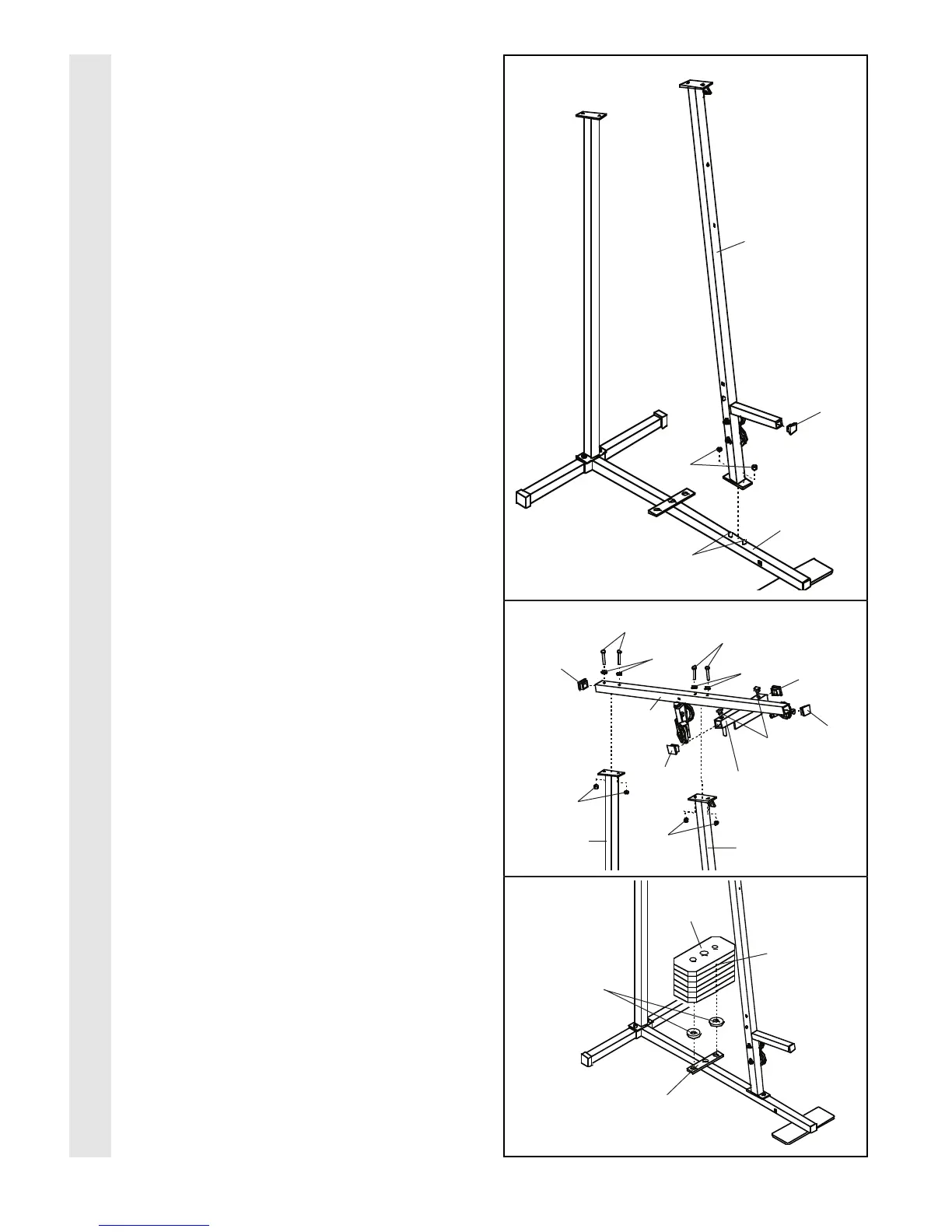

FRAME ASSEMBLY
2. Slide the Front Upright (42) onto the 5/16Ó x
2 1/2Ó Carriage Bolts (1) in the Base (4).
Hand tighten a 5/16Ó Nylon Locknut (3) onto
each Carriage Bolt. Do not tighten the
Nylon Locknuts yet.
Press a 1Ó Square Inner Cap (65) into the
Front Upright (42).
3. Press a 2Ó Square Inner Cap (27) into each
end of the Top Frame (55). Press a 1 3/4Ó
Square Inner Cap (44) into each end of the
crossbar on the Top Frame. Press two 1Ó
Round Inner Caps (49) into the top of the
crossbar.
Attach the Top Frame (55) to the Front Upright
(42) and the Rear Upright (56) with four 5/16Ó
x 2 3/4Ó Bolts (11), four 5/16Ó Flat Washers
(8), and four 5/16Ó Nylon Locknuts (3).
Tighten all Nylon Locknuts used in steps 1
through 3.
4. Set two Weight Bumpers (19) onto the brack-
et on the Base (4) as shown.
Stack six Weights (25) on the Weight
Bumpers (19). Be sure that all of the Weights
are turned so the pin grooves are on the
same side. Be careful not to tip the stack
of Weights.
4
2
3
42
65
3
1
4
11
11
49
8
44
44
27
27
55
56
42
3
Crossbar
25
Pin Groove
19
4ÑBracket
3
8
