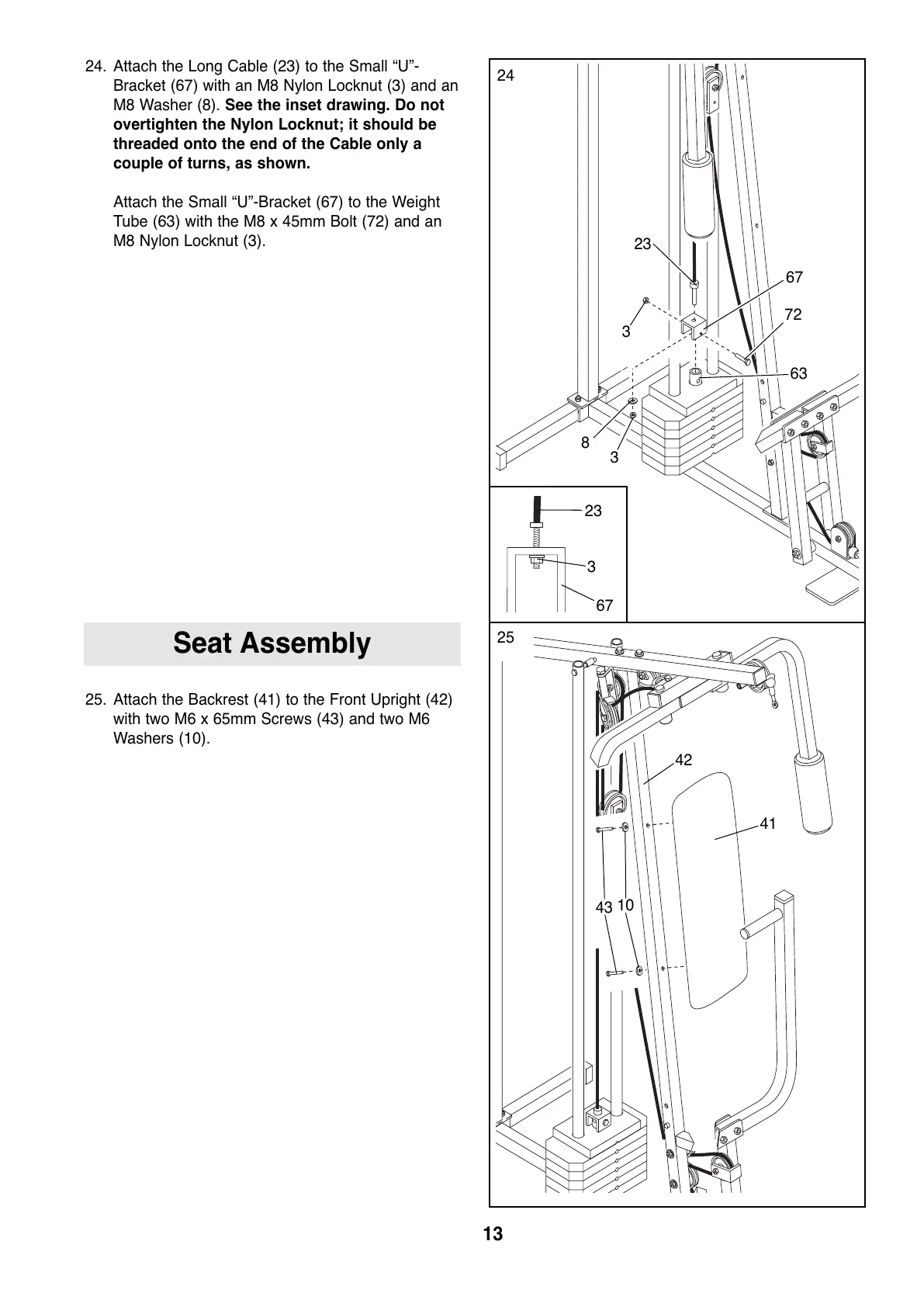

Weider 8525 - Seat Assembly - Part 1

24. Attach the Long Cable (23) to the Small “U”-
Bracket (67) with an M8 Nylon Locknut (3) and an
M8 Washer (8). See the inset drawing. Do not
overtighten the Nylon Locknut; it should be
threaded onto the end of the Cable only a
couple of turns, as shown.
Attach the Small “U”-Bracket (67) to the Weight
Tube (63) with the M8 x 45mm Bolt (72) and an
M8 Nylon Locknut (3).
24
63
72
67
3
8
3
23
13
23
67
3
25. Attach the Backrest (41) to the Front Upright (42)
with two M6 x 65mm Screws (43) and two M6
Washers (10).
Seat Assembly
25
41
42
10
43
