Weider 8525 - Part List

22
Note: “#” indicates a non-illustrated part. Specifications are subject to change without notice.

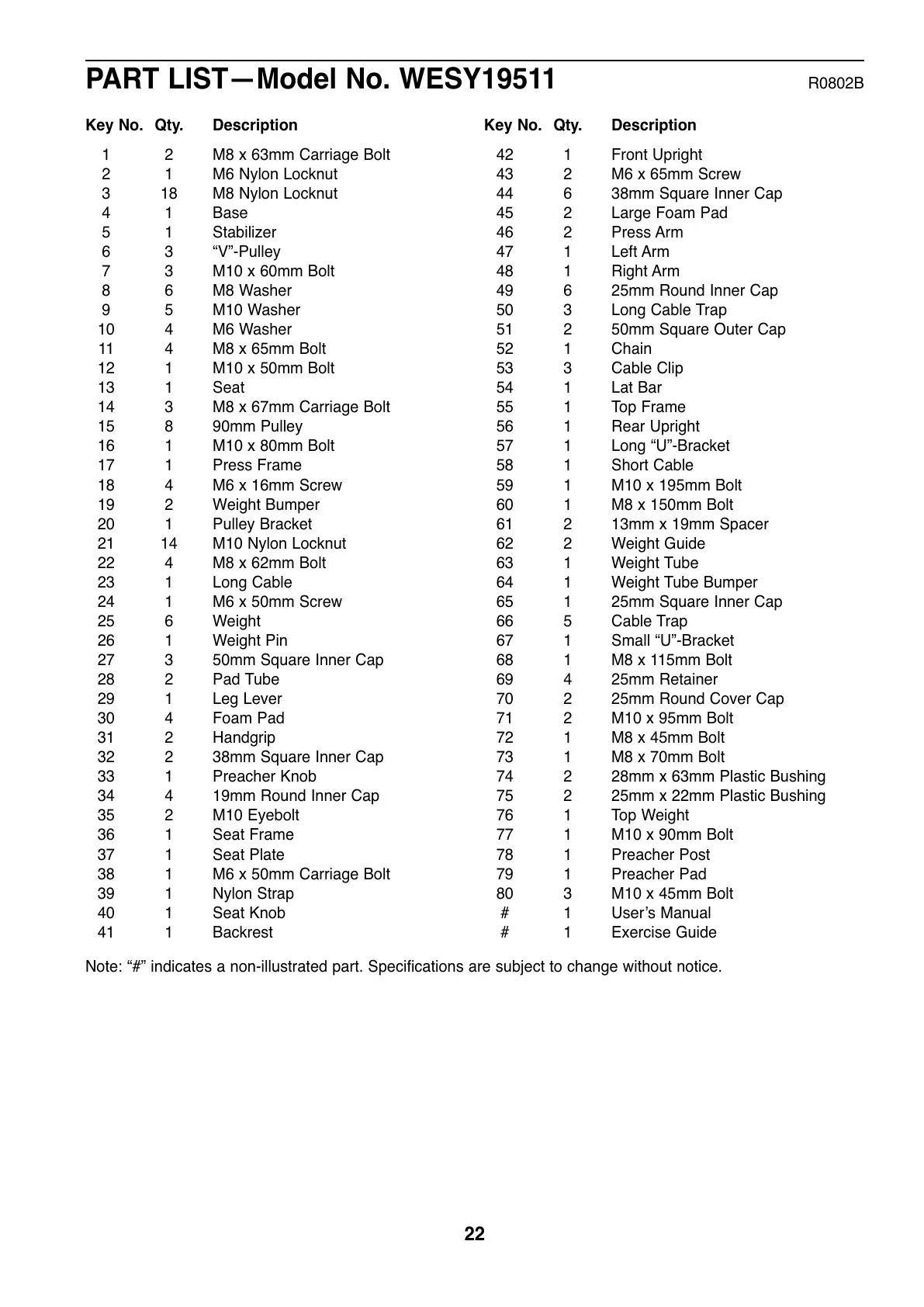

PART LIST—Model No. WESY19511 R0802B
1 2 M8 x 63mm Carriage Bolt
2 1 M6 Nylon Locknut
3 18 M8 Nylon Locknut
4 1 Base
5 1 Stabilizer
6 3 “V”-Pulley
7 3 M10 x 60mm Bolt
8 6 M8 Washer
9 5 M10 Washer
10 4 M6 Washer
11 4 M8 x 65mm Bolt
12 1 M10 x 50mm Bolt
13 1 Seat
14 3 M8 x 67mm Carriage Bolt
15 8 90mm Pulley
16 1 M10 x 80mm Bolt
17 1 Press Frame
18 4 M6 x 16mm Screw
19 2 Weight Bumper
20 1 Pulley Bracket
21 14 M10 Nylon Locknut
22 4 M8 x 62mm Bolt
23 1 Long Cable
24 1 M6 x 50mm Screw
25 6 Weight
26 1 Weight Pin
27 3 50mm Square Inner Cap
28 2 Pad Tube
29 1 Leg Lever
30 4 Foam Pad
31 2 Handgrip
32 2 38mm Square Inner Cap
33 1 Preacher Knob
34 4 19mm Round Inner Cap
35 2 M10 Eyebolt
36 1 Seat Frame
37 1 Seat Plate
38 1 M6 x 50mm Carriage Bolt
39 1 Nylon Strap
40 1 Seat Knob
41 1 Backrest
42 1 Front Upright
43 2 M6 x 65mm Screw
44 6 38mm Square Inner Cap
45 2 Large Foam Pad
46 2 Press Arm
47 1 Left Arm
48 1 Right Arm
49 6 25mm Round Inner Cap
50 3 Long Cable Trap
51 2 50mm Square Outer Cap
52 1 Chain
53 3 Cable Clip
54 1 Lat Bar
55 1 Top Frame
56 1 Rear Upright
57 1 Long “U”-Bracket
58 1 Short Cable
59 1 M10 x 195mm Bolt
60 1 M8 x 150mm Bolt
61 2 13mm x 19mm Spacer
62 2 Weight Guide
63 1 Weight Tube
64 1 Weight Tube Bumper
65 1 25mm Square Inner Cap
66 5 Cable Trap
67 1 Small “U”-Bracket
68 1 M8 x 115mm Bolt
69 4 25mm Retainer
70 2 25mm Round Cover Cap
71 2 M10 x 95mm Bolt
72 1 M8 x 45mm Bolt
73 1 M8 x 70mm Bolt
74 2 28mm x 63mm Plastic Bushing
75 2 25mm x 22mm Plastic Bushing
76 1 Top Weight
77 1 M10 x 90mm Bolt
78 1 Preacher Post
79 1 Preacher Pad
80 3 M10 x 45mm Bolt
# 1 User’s Manual
# 1 Exercise Guide
Key No. Qty. Description Key No. Qty. Description
