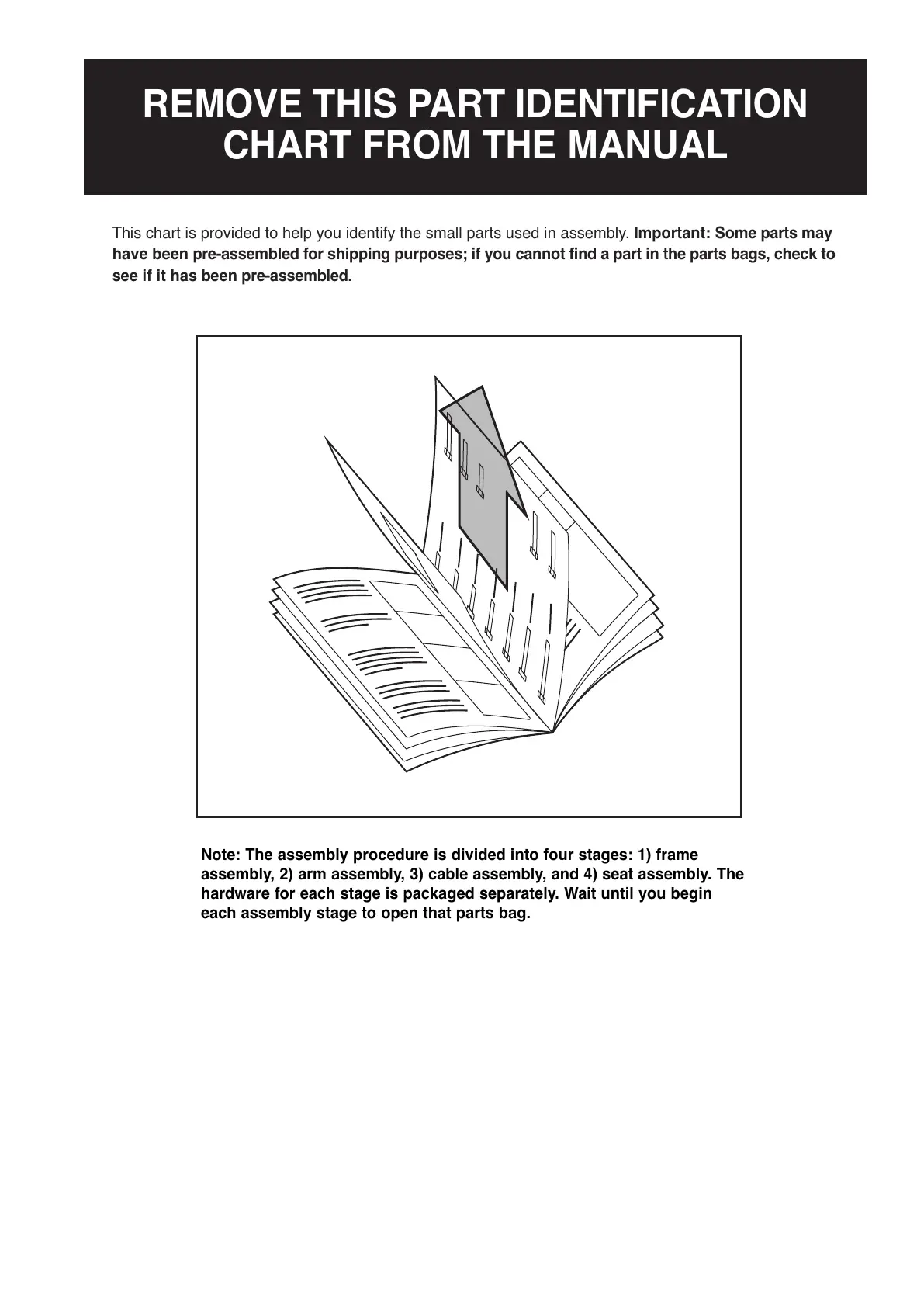

REMOVE THIS PART IDENTIFICATION
CHART FROM THE MANUAL
This chart is provided to help you identify the small parts used in assembly. Important: Some parts may
have been pre-assembled for shipping purposes; if you cannot find a part in the parts bags, check to
see if it has been pre-assembled.
Note: The assembly procedure is divided into four stages: 1) frame
assembly, 2) arm assembly, 3) cable assembly, and 4) seat assembly. The
hardware for each stage is packaged separately. Wait until you begin
each assembly stage to open that parts bag.
