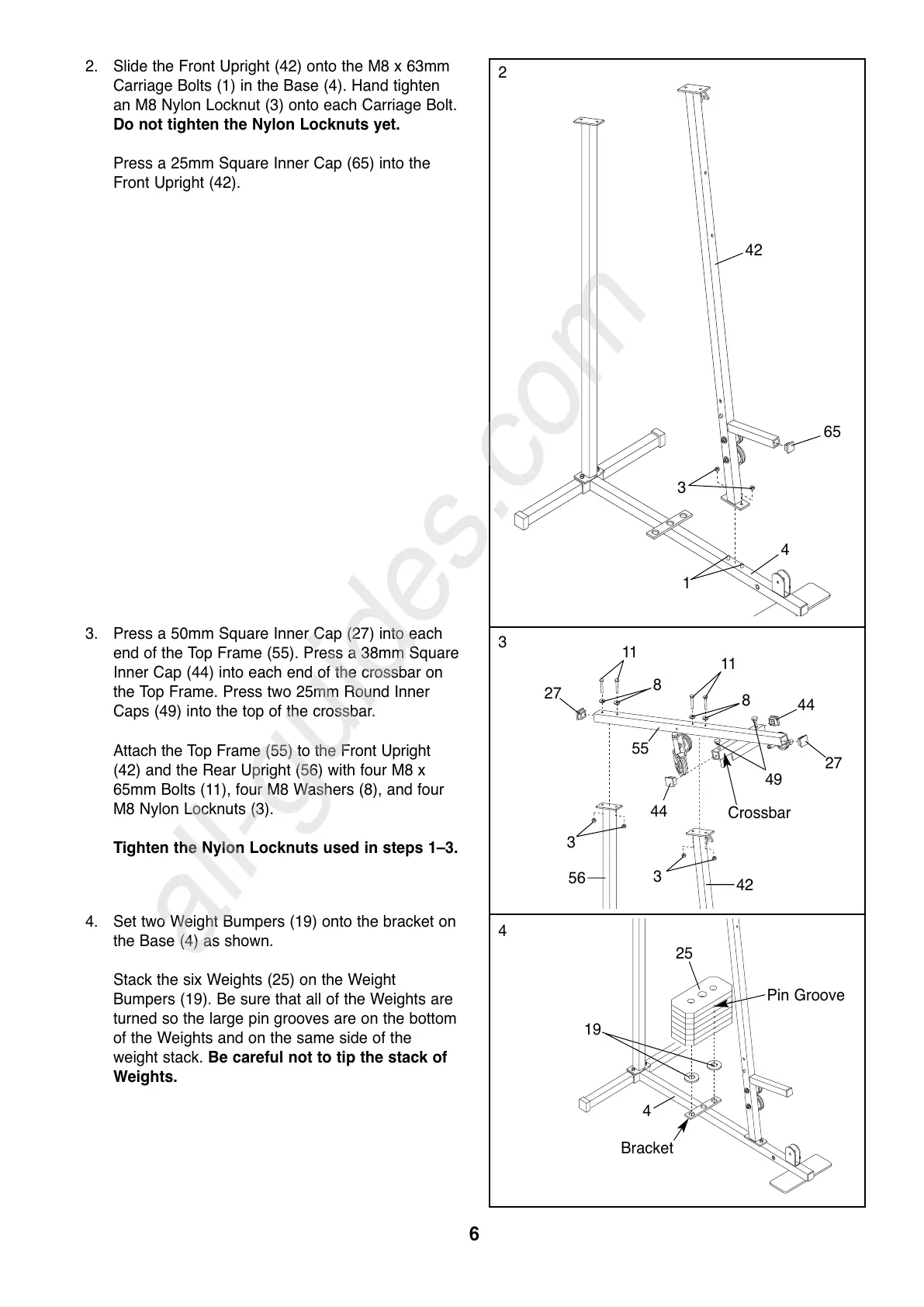

2. Slide the Front Upright (42) onto the M8 x 63mm
Carriage Bolts (1) in the Base (4). Hand tighten
an M8 Nylon Locknut (3) onto each Carriage Bolt.
Do not tighten the Nylon Locknuts yet.
Press a 25mm Square Inner Cap (65) into the
Front Upright (42).
3. Press a 50mm Square Inner Cap (27) into each
end of the Top Frame (55). Press a 38mm Square
Inner Cap (44) into each end of the crossbar on
the Top Frame. Press two 25mm Round Inner
Caps (49) into the top of the crossbar.
Attach the Top Frame (55) to the Front Upright
(42) and the Rear Upright (56) with four M8 x
65mm Bolts (11), four M8 Washers (8), and four
M8 Nylon Locknuts (3).
Tighten the Nylon Locknuts used in steps 1–3.
4. Set two Weight Bumpers (19) onto the bracket on
the Base (4) as shown.
Stack the six Weights (25) on the Weight
Bumpers (19). Be sure that all of the Weights are
turned so the large pin grooves are on the bottom
of the Weights and on the same side of the
weight stack. Be careful not to tip the stack of
Weights.
