Weider 8630 - Page 16

16

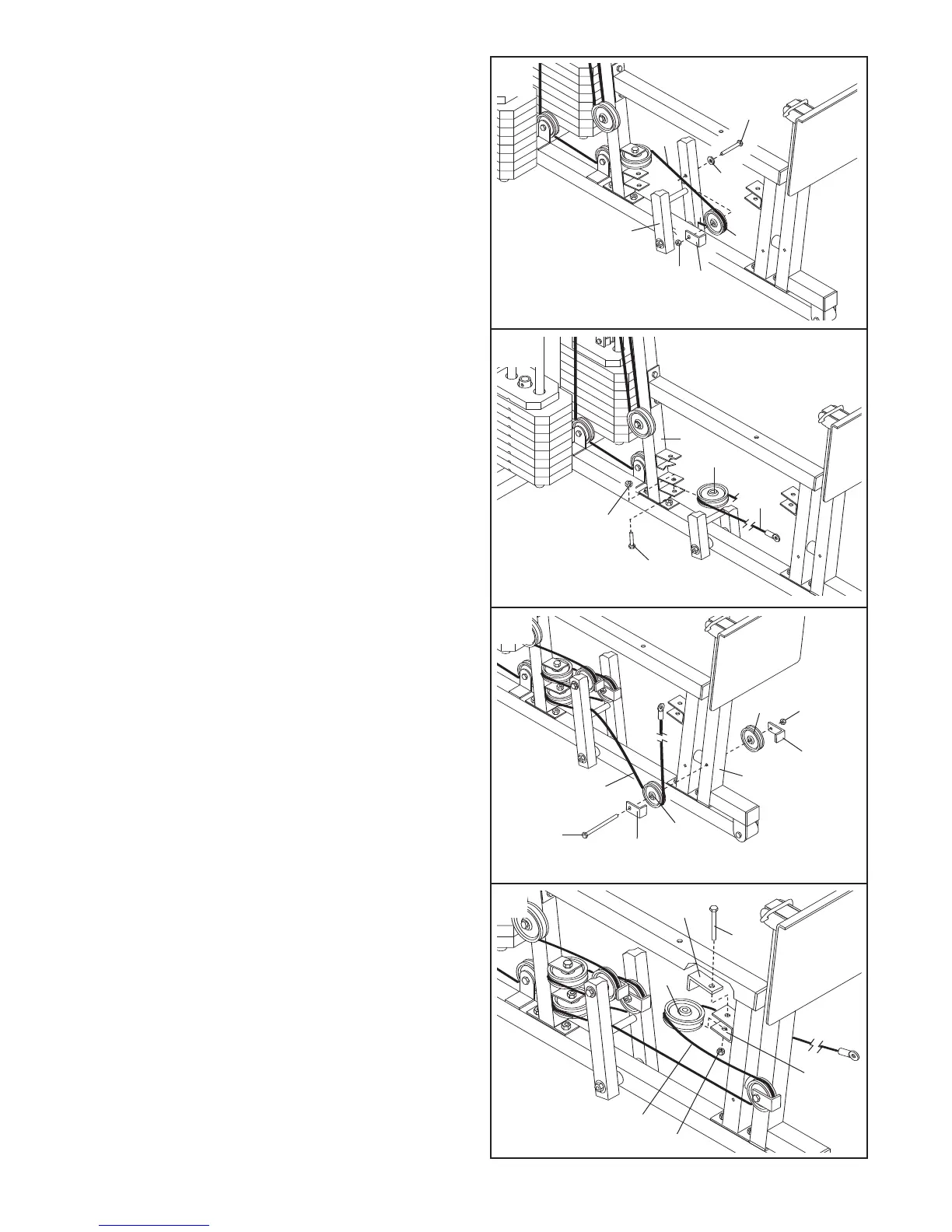

35. Route the Press Cable (88) over a 90mm Pulley
(82). Attach the Pulley and a Cable Trap (80) to
t
he indicated hole in the Press Frame (12) with
an M10 x 82mm Bolt (66), an M10 Washer (38),
a
nd an M10 Nylon Locknut (42).
36. Wrap the Press Cable (88) around a “V”-pulley
(81). Attach the “V”-pulley to the lower bracket on
the Leg Press Upright (4) with an M10 x 57mm
Bolt (91) and an M10 Nylon Locknut (42).
37. Wrap the Press Cable (88) around a 90mm
Pulley (82). Attach the Pulley and a Cable Trap
(80) to the Leg Press Arm (9) with the M10 x
120mm Bolt (74).
Slide another 90mm Pulley (82) with a Cable Trap
(80) onto the M10 x 120mm Bolt (74). Hand tight-
en an M10 Nylon Locknut (42) onto the Bolt.
Do
not tighten the Locknut until completing step
39.
38. Wrap the Press Cable (88) around a “V”-pulley
(81). Attach the “V”-pulley and a Large Cable
T
rap (83) to the bracket on the Front Seat Frame
(8) with an M10 x 60mm Bolt (65) and an M10
Nylon Locknut (42).
Make sure that the Large
Cable Trap is turned to hold the Cable in place
and that the Cable and Pulley move smoothly.
38
35
36
37
83
65
81
88
42
8
88
42
80
38
12
82
66
42
82
82
9
80
80
74
88
88
81
4
91
42
