Weider 8630 User Manual

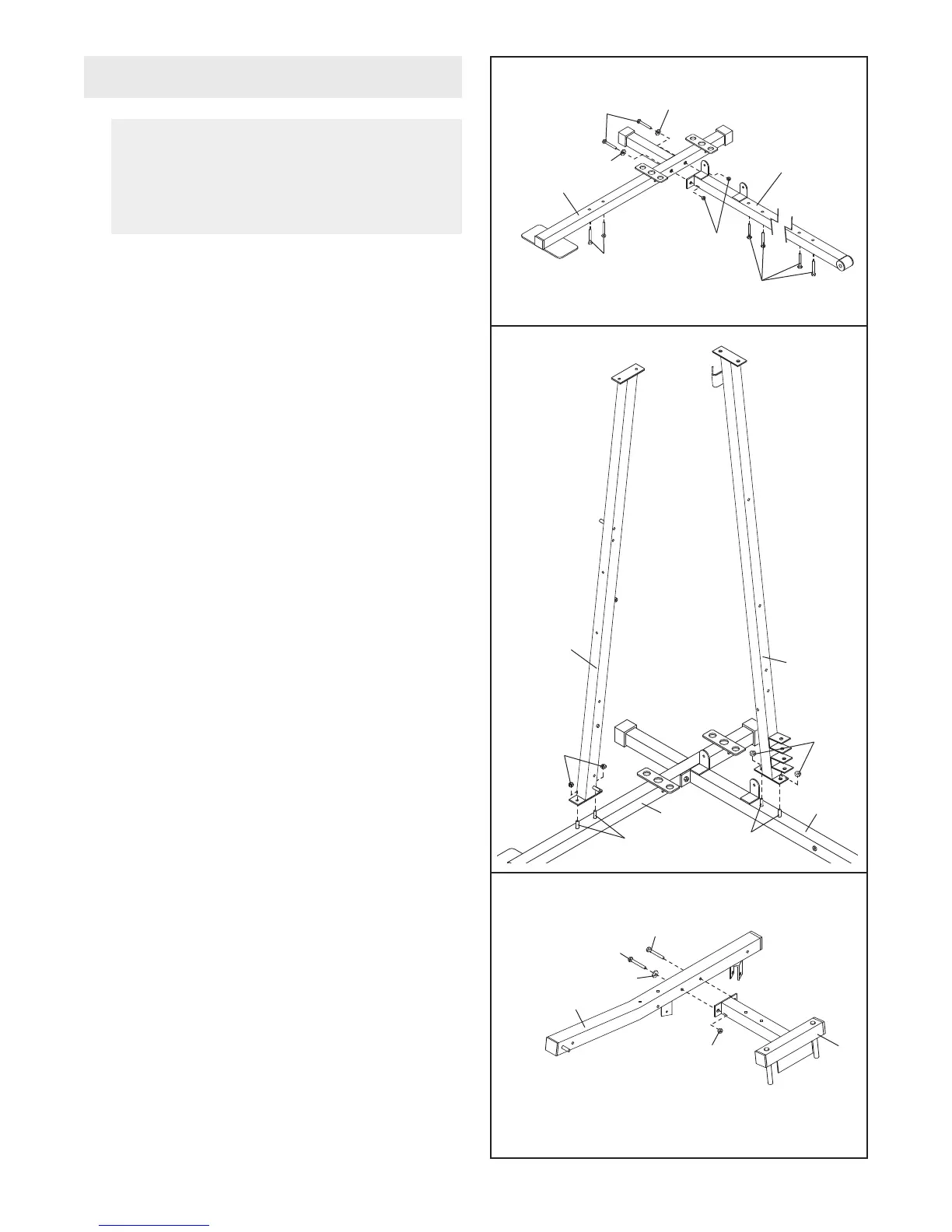

1.
Locate and open the parts bags labeled
“FRAME ASSEMBLY.”
Insert six M8 x 63mm Carriage Bolts (49) up
through the Press Base (13) and the Weight Base
(14).
Attach the Press Base (13) to the Weight Base
(14) with two M8 x 67mm Bolts (55), two M8
Washers (20), and two M8 Nylon Locknuts (40).
Do not tighten the Locknuts yet.
2. Slide the Ab Upright (1) onto the indicated M8 x
63mm Carriage Bolts (49) in the Weight Base
(14). Hand tighten two M8 Nylon Locknuts (40)
onto the Carriage Bolts. Do not tighten the
Locknuts yet.
Slide the Leg Press Upright (4) onto the indicated
M8 x 63mm Carriage Bolts (49) in the Press Base
(13). Hand tighten two M8 Nylon Locknuts (40)
onto the Carriage Bolts. Do not tighten the
Locknuts yet.
3.
Attach the Butterfly Frame (3) to the
T
op Frame
(2) with an M8 x 67mm Bolt (55), an M8 Washer
(20), and an M8 Nylon Locknut (40).
Do not
tighten the Locknut yet. Insert an M8 x 69mm
Shoulder Bolt (43) into the Top Frame and
Butterfly Frame from the side shown.
2
3
6
1
4
40
40
49
49
13
2
3
14
40
55
20
43
1
55
20
20
49
40
49
13
1
4
Before beginning assembly, make sure you
understand the information in the box on
page 5. Refer to the PART IDENTIFICATION
CHART in the center of this manual for help
identifying small parts.
Frame Assembly

Weider 8630 Specifications

General

Stations	6
Weight Stack	125 lbs
Exercises	Over 30
Weight Capacity	300 lbs
Material	Steel frame
Warranty	90 days parts and labor
