To tighten the cables, first insert the weight pin into the mid-
dle of the weight stack. Slack can be removed from these
cables several ways:
•

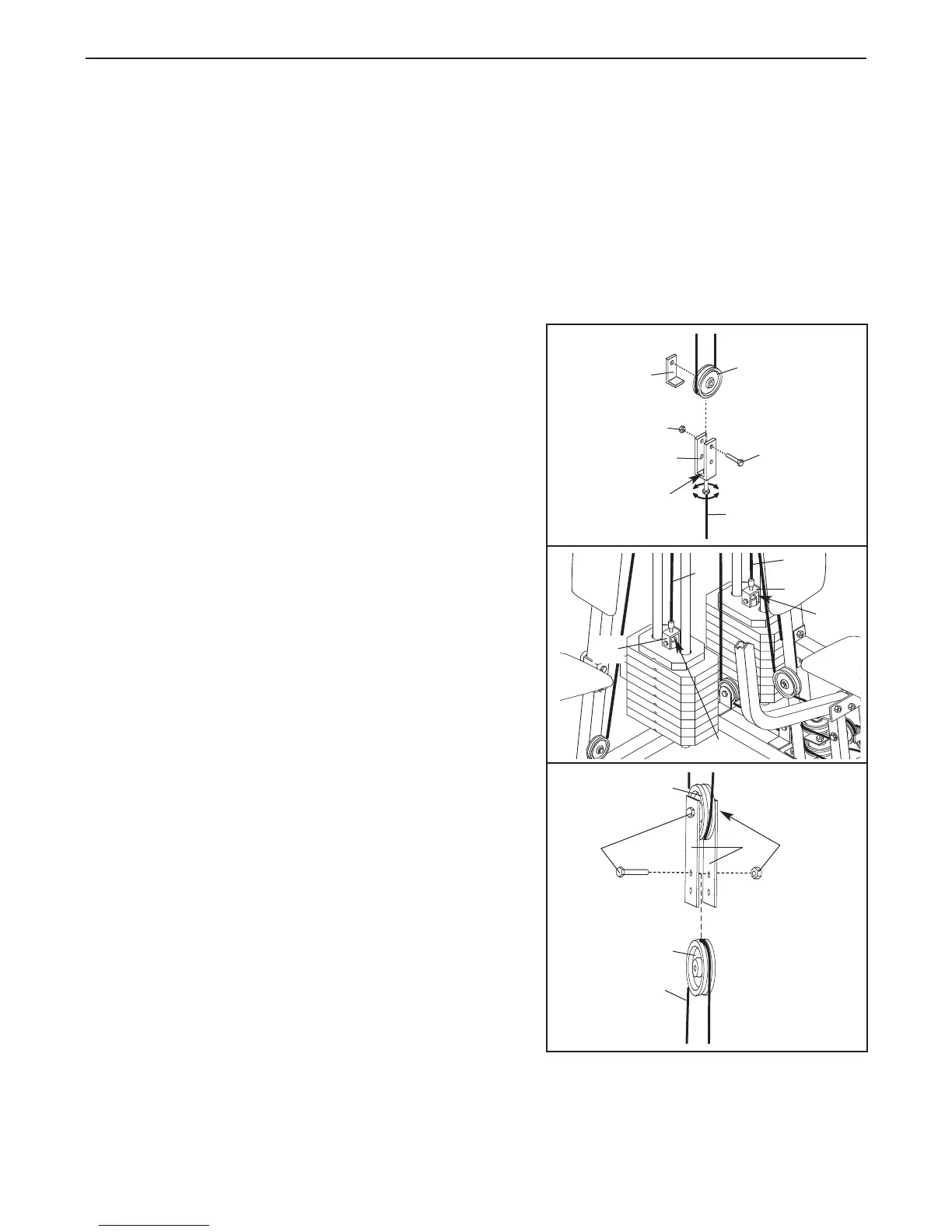

See drawing 1. Tighten the M8 Nylon Locknut (40) that
connects the end of the Press Cable (88) to the Large
“U”-bracket (84).
• See drawing 1. Remove the M10 Nylon Locknut (42) and
the M10 x 48mm Bolt (50) from the Cable Trap (80), the
90mm Pulley (82), and the Large “U”-bracket (84).
Reattach the Pulley and the Cable Trap to the other hole
in the Large “U”-bracket. Make sure that the Cable Trap
is in the proper position and that the Cable and
Pulley move smoothly.
• See drawing 2. Tighten the M8 Nylon Locknut (40) that
connects the end of the High Cable (85) to the Small “U”-
bracket (32).
The Rear Cable (87) can be tightened in the same
manner.
• See Drawing 3. If you feel additional slack while using
the weight system, the Low Cable (86) and the Press
Cable (88) can be tightened further.
Remove the two M10 x 48mm Bolts (50), the two M10
Nylon Locknuts (42), the two 90mm Pulleys (82), and the
two Cable Traps (not shown) from the Pulley Plates (31).
Reattach the upper Pulley without the Cable Trap.
Reattach the lower Pulley to the higher hole in the Pulley
Plates without the Cable T
rap
. Keep the Cable
Traps for
future use. Make sure that the Cable and Pulley move
smoothly.
Do not overtighten the cables. If the cables are overtight
-
ened, the top weight will be lifted off the weight stack.
If a cable tends to slip off the pulleys often, it may have
become twisted. Remove the cable and re-install it.
If the cables need to be replaced, see ORDERING REPLACEMENT PARTS on the back cover of this manual.
MAINTENANCE
Inspect and tighten all parts each time the weight system is used. Replace any worn parts immediately. The
w
eight system can be cleaned using a damp cloth and mild non-abrasive detergent. Do not use solvents.
TIGHTENING THE CABLES
W
oven cable, the type of cable used on the weight system, can stretch slightly when it is first used. If there is
slack in the cables before resistance is felt, the cables should be tightened. If any slack is felt when using the
weight stack closest to the ab upright, both the High Cable (85) and the Low Cable (86) will need to be tight-
ened. If any slack is felt when using the other weight stack, the Rear Cable (87), the Press Cable (88), and the
Butterfly Cable (89) will need to be tightened.
84
32
32
80
82
40
40
40
88
42
87
85
86 or 88
82
82
31
42
50
2
3
1
50
25
