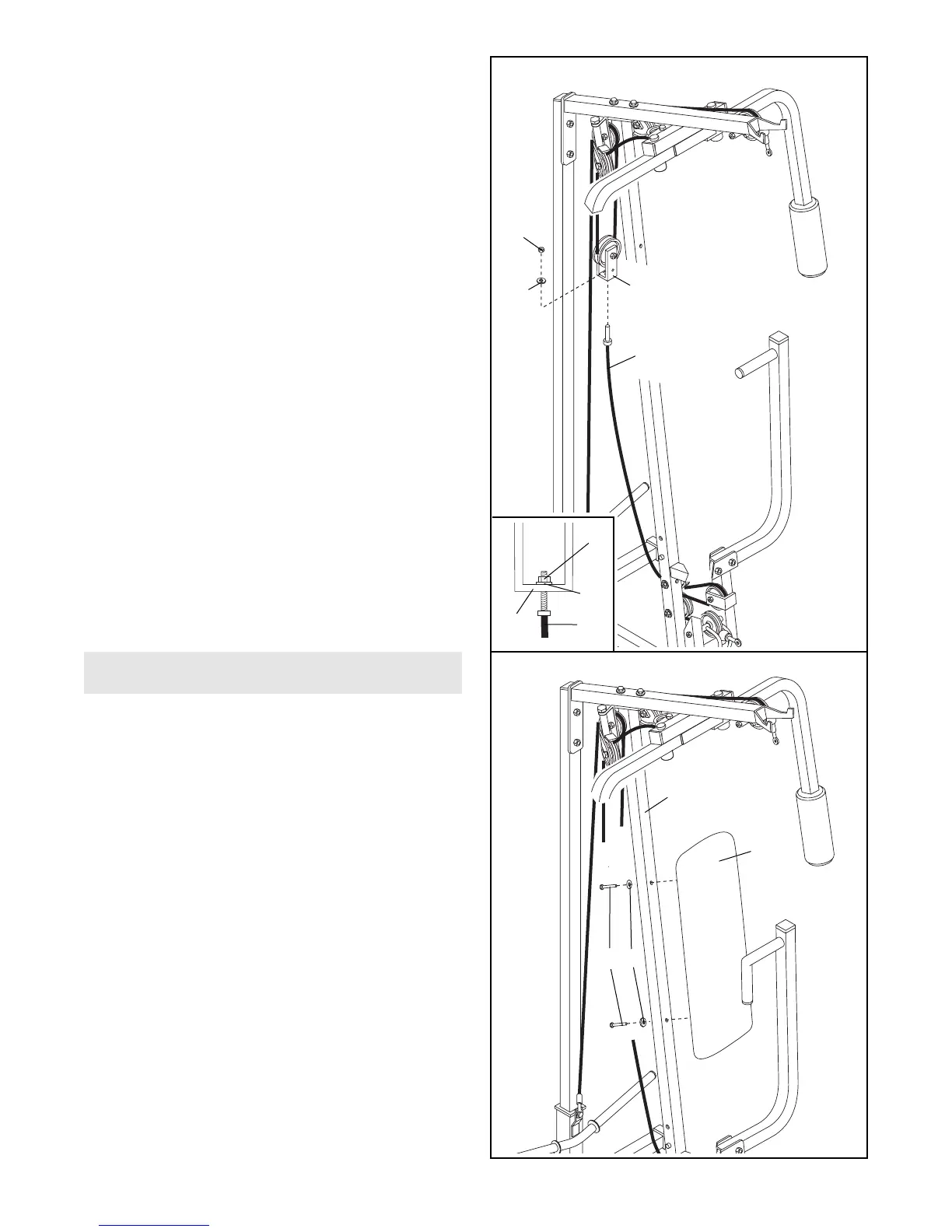

22. Attach the end of the Short Cable (23) to the
Long “U”-Bracket (57) with an M8 Nylon Locknut
(3) and an M8 Washer (68). Do not completely
tighten the Nylon Locknut; it should be
threaded onto the end of the Cable until two
threads are showing above the Nylon
Locknut, as shown in the inset drawing.
23. Attach the Backrest (41) to the Front Upright (42)
with two M6 x 63mm Screws (43) and two M6
Washers (10).
SEAT ASSEMBLY
12
23
41
42
10
43
22
57
3
68
23
23
57
3
68
To Next Page
