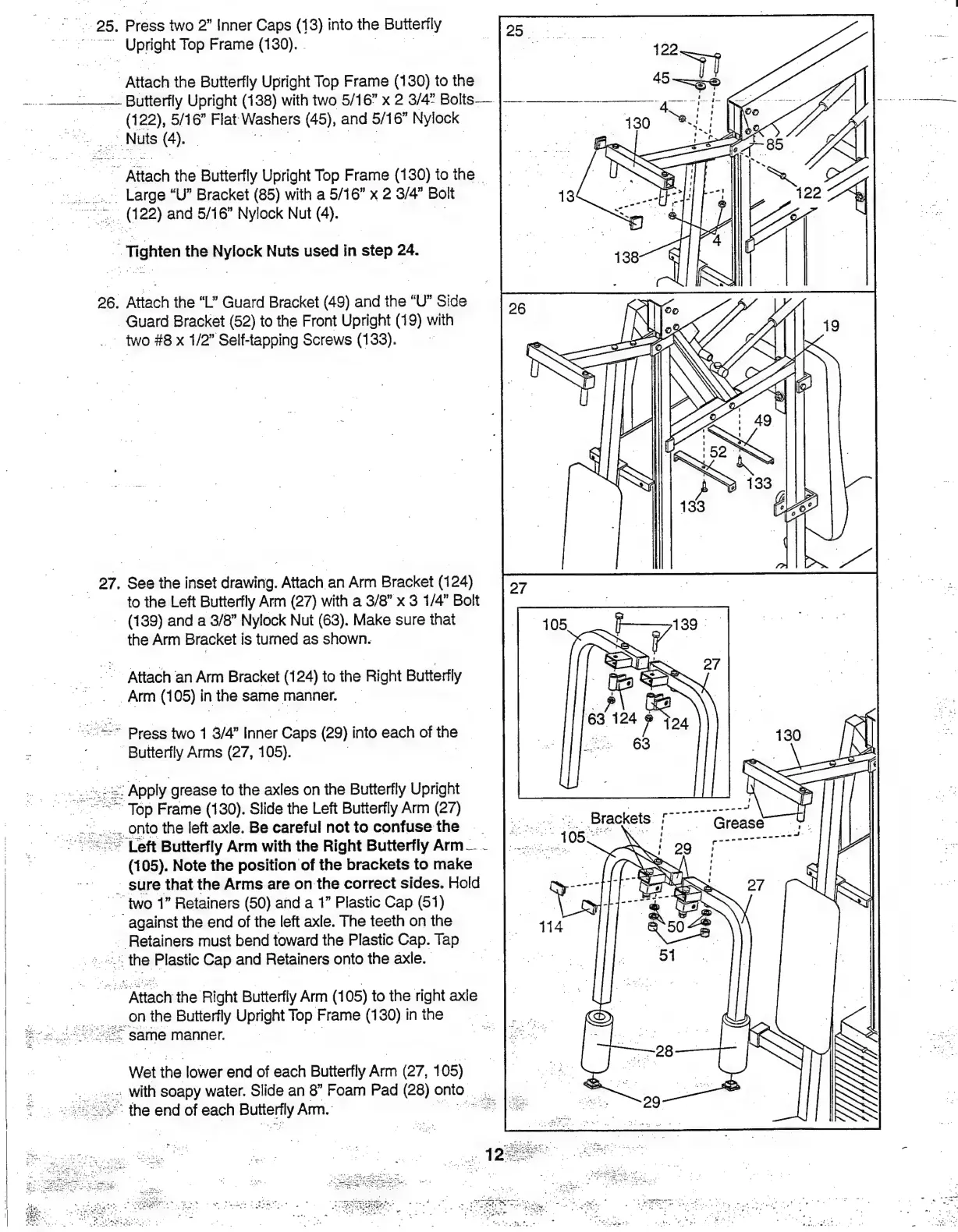

22222
25,
Press
two
2"
Inner
Caps
(13)
into
the
Butterfly
|.
77
Upright
Top
Frame
(130).
.
мэ
E
Attach
the
Butterfly
Upright
Top
Frame
(130)
to
the
-——
Butterfly
Upright
(138)
with
two
5/16"
x
2
3/4:
Bolts—
|
gc
RS
ane
/
(122),
5/16"
Flat
Washers
(45),
and
5/16"
Nylock
Nuts
(4).
.
I
E
|
=
Attach
the
Butterfly
Upright
Top
Frame
(130)
to
the
-
<u
Large
“U”
Bracket
(85)
with
а
5/16”
x
2
3/4”
Bolt
7725
(122)
and
5/16”
Nylock
Nut
(4).
Е
E
Tighten
the
Nylock
Nuts
used
in
step
24.
26.
Attach
the
"L"
Guard
Bracket
(49)
and
the
"U"
Side
.
Guard
Bracket
(52)
to
the
Front
Upright
(19)
with
_
two
#8
x
1/2”
Self-tapping
Screws
(133).
i
.
27.
See
the
inset
drawing.
Attach
an
Arm
Bracket
(124)
нэ
to
the
Left
Butterfly
Arm
(27)
with
а
3/8"
х
3
1/4"
Bolt
-
(139)
and
a
3/8"
Nylock
Nut
(63).
Make
sure
that
the
Arm
Bracket
is
turned
as
shown.
_
-^
Attach
an
Arm
Bracket
(124)
to
the
Right
Butterfly
.
.
Arm
(105)
in
the
same
manner.
="
Press
two
1
3/4"
Inner
Caps
(29)
into
each
of
the
|
Butterfly
Arms
(27,
105).
|
Е
a
etsi
Apply
grease
to
the
axles
on
the
Butterfly
Upright
“ЗУЛ
Top
Frame
(130).
Slide
the
Left
Butterfly
Arm
(27)
:
Улан.
onto
the
left
axle.
Be
careful
not
to
confusethe
.
71579257
Left
Butterfly
Arm
with
the
Right
Butterfly
Arm...
-
(105).
Note
the
position
of
the
brackets
to
make
-
sure
that
the
Arms
аге
on
the
correct
sides.
Hold
©
two
1”
Retainers
(50)
and
а
1"
Plastic
Cap
(51)
'
against
the
end
of
the
left
axle.
The
teeth
on
the
.
Retainers
must
bend
toward
the
Plastic
Cap.
Tap
ел
the
Plastic
Cap
and
Retainers
onto
the
axle.
E
"attach
the
Right
Butterfly
Arm
(105)
to
the
right
axle
on
the
Butterfly
Upright
Top
Frame
(130)
in
the
272.272
шы
same
manner.
Wet
the
lower
end
of
each
Butterfly
Arm
(27,
105)
|
!
7s;
with
soapy
water.
Slide
an
8”
Foam
Pad
(28)
onto
7"
о
осы
the
end
of
each
Butterfly
Arm.
шаа
pues
wt
MS
Re
RES
m
(акы
tt
e
ман,
АТИ
Р
БХ
E
X
:
ertum
pu
-.
НЯ,
а
.
LL
es.
А
аа
weh.
Хэн
Ds
эзе
э
Му.
К
NERIS
з,э4
ҮЛ.
pow
S
brisa
