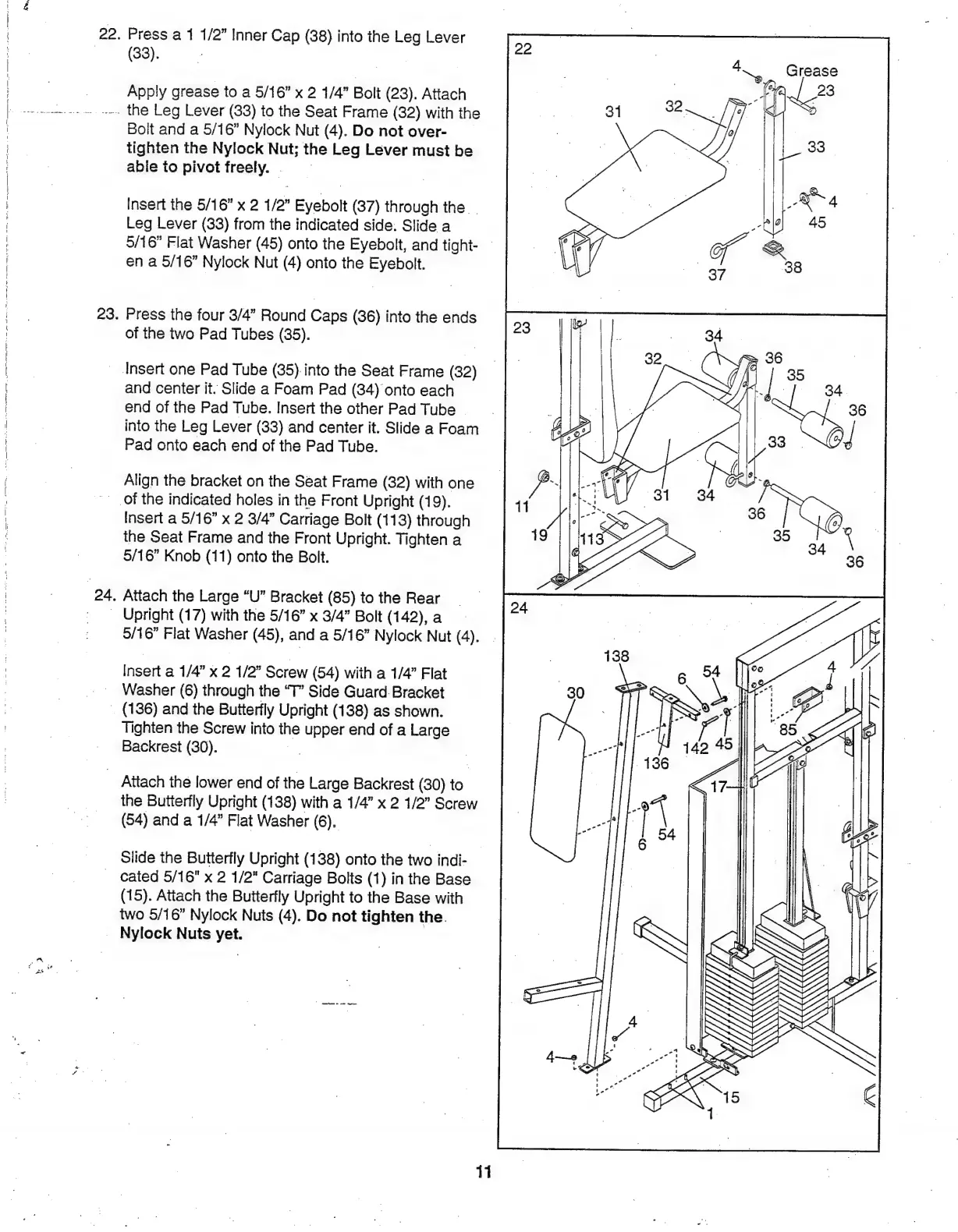

22.
Press
a
1
1/2"
Inner
Cap
(38)
into
the
Leg
Lever
(33).
Ё
|
Apply
grease
to
a
5/16"
x
2
1/4"
Bolt
(23).
Attach
-.
the
Leg
Lever
(33)
to
the
Seat
Frame
(32)
with
the
23.
Bolt
and
a
5/16"
Nylock
Nut
(4).
Do
not
over-
tighten
the
Nylock
Nut;
the
Leg
Lever
must
be
abie
to
pivot
freely.
.
Insert
the
5/16"
x
2
1/2"
Eyebolt
(37)
through
the
-
Leg
Lever
(33)
from
the
indicated
side.
Slide
a
5/16"
Flat
Washer
(45)
onto
the
Eyebolt,
and
tight-
|
en
a
5/16"
Nylock
Nut
(4)
onto
the
Eyebolt.
Press
the
four
3/4”
Round
Caps
(36)
into
the
ends
of
the
two
Pad
Tubes
(35).
.
Insert
one
Pad
Tube
(35)
into
the
Seat
Frame
(32)
and
center
it.
Slide
a
Foam
Pad
(34)
onto
each
end
of
the
Pad
Tube.
Insert
the
other
Pad
Tube
into
the
Leg
Lever
(33)
and
center
it.
Slide
a
Foam
Pad
onto
each
end
of
the
Pad
Tube.
Align
the
bracket
on
the
Seat
Frame
(32)
with
one
.
ofthe
indicated
holes
in
the
Front
Upright
(19).
24.
|...
Upright
(17)
with
the
5/16"
x
3/4"
Bolt
(142),
а
5/16"
Flat
Washer
(45),
and
a
5/16"
Nylock
Nut
(4).
_.
Insert
а
5/16"
x
2
3/4”
Carriage
Bolt
(113)
through
the
Seat
Frame
and
the
Front
Upright.
Tighten
а
5/16”
Knob
(11)
onto
the
Bolt.
Attach
the
Large
"U"
Bracket
(85)
to
the
Rear
Insert
a
1/4"
x
2
1/2"
Screw
(54)
with
a
1/4"
Flat
Washer
(6)
through
the
"T"
Side
Guard
Bracket
.
(136)
and
the
Butterfly
Upright
(138)
as
shown.
Tighten
the
Screw
into
the
upper
end
of
a
Large
Backrest
(30).
|
_
Attach
the
lower
end
of
the
Large
Backrest
(30)
to
the
Butterfly
Upright
(138)
with
a
1/4”
x
2
1/2”
Screw
(54)
and
a
1/4”
Flat
Washer
(6).
Slide
the
Butterfly
Upright
(138)
onto
the
two
indi-
_
cated
5/16"
x
2
1/2"
Carriage
Bolts
(1)
in
the
Base
(15).
Attach
the
Butterfly
Upright
to
the
Base
with
two
5/16”
Nylock
Nuts
(4).
Do
not
tighten
the.
_
Nylock
Nuts
yet.
^
—A—
шат
=>
|
Grease
11
