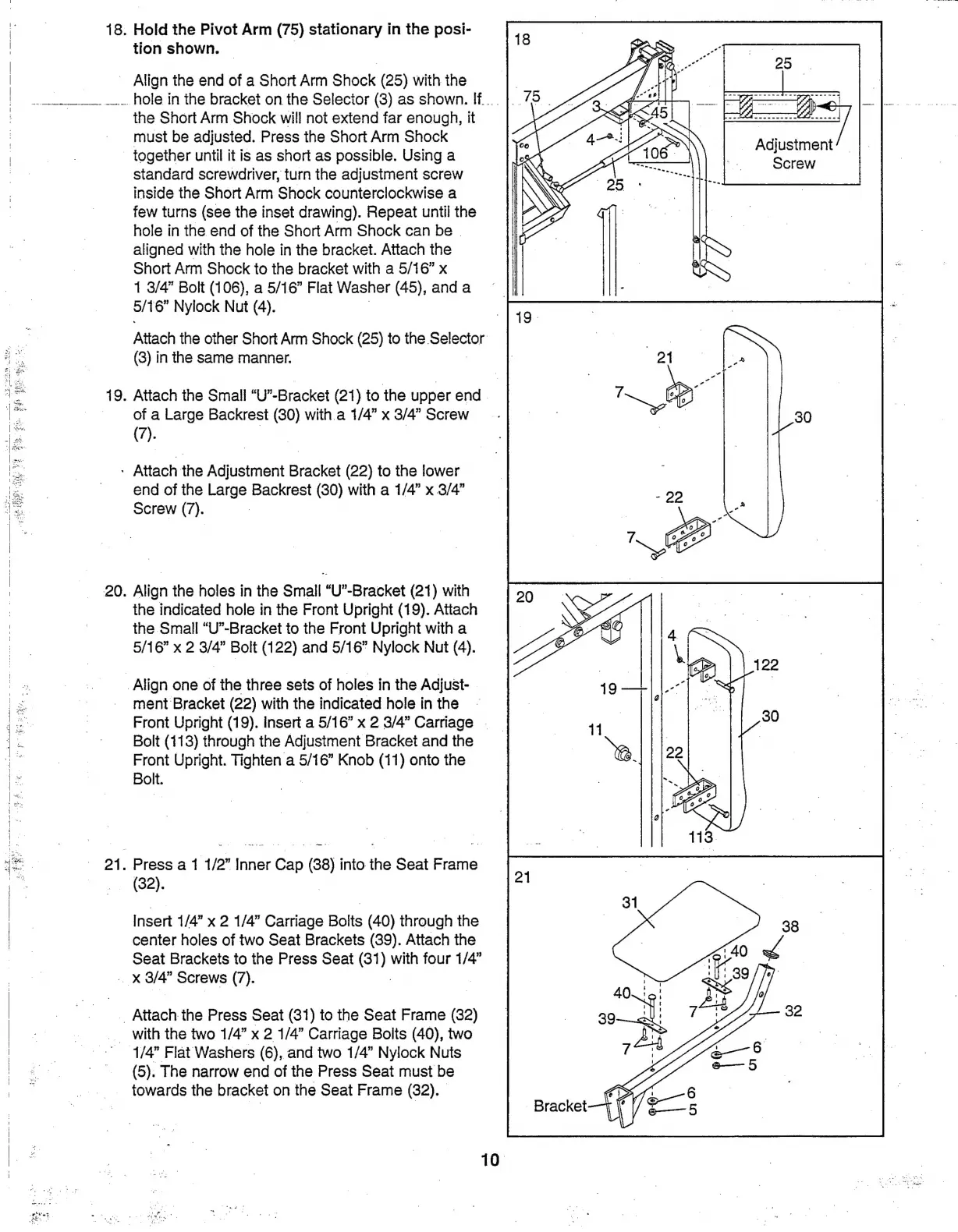

Hold the Pivot Arm (75) stationary in the posi-
tion shown.
. Align the end of a Short Arm Shock (25) with the
hole in the bracket on the Selector (3) as shown. If... ‚ЛӨ,
the Short Arm Shock will not extend far enough, it
must be adjusted. Press the Short Arm Shock
_ together until it is as short as possible. Using a
standard screwdriver, turn the adjustment screw
inside the Short Arm Shock counterclockwise a
few turns (see the inset drawing). Repeat until the
hole in the end of the Short Arm Shock can be
aligned with the hole in the bracket. Attach the
Short Arm Shock to the bracket with a 5/16" x
1 3/4" Bolt (106), a 5/16" Flat Washer (45), and a
5/1 6” Nylock Nut (4).
Attach the other Short Arm Shock (25) to the Selector
(3) in the same manner.
. Attach the Small "U"-Bracket (21) to the upper end
of a Large Backrest (30) with.a 1/4" x 3/4" Screw
(7). |
Attach the Adiustment B Bracket (22) to the lower
20.
21.
end of the add Backrest (30) with a 1/4" x 3/4"
Screw (7).
Align the holes іл the Small "U"-Bracket (21) with
the indicated hole in the Front Upright (19). Attach
the Small "U"-Bracket to the Front Upright with a
5/16" x 2 3/4" Bolt (122) and 5/16" Nylock Nut (4).
_ Align one of the three sets of holes іп the Adjust- -
ment Bracket (22) with the indicated hole in the
Front Upright (19). insert a 5/16" x 2 3/4" Carriage .
Bolt (113) through the Adjustment Bracket and the
Front Upright. Tighten a 5/16" Knob (11) onto the
Bolt.
о `.
Press a 1 1/2” Inner Cap (38) into the Seat Frame
(32).
Insert 1/4" x 2 1/4” Carriage Bolts (40) through the
center holes of two Seat Brackets (39). Attach the
Seat Brackets to the Press Seat en with four 1/4"
Xx 3/4 " Screws (7).
. Attach the Press Seat (31) to the Seat Frame (32)
with the two 1/4" x 2 1/4" Carriage Boits (40), two
ИГ ” Flat Washers (6), and two 1/4" Nylock Nuts
(5). The narrow end of the Press Seat must be
towards the bracket on the Seat Frame (32).
