Weider 8950 - Cable Routing Diagrams

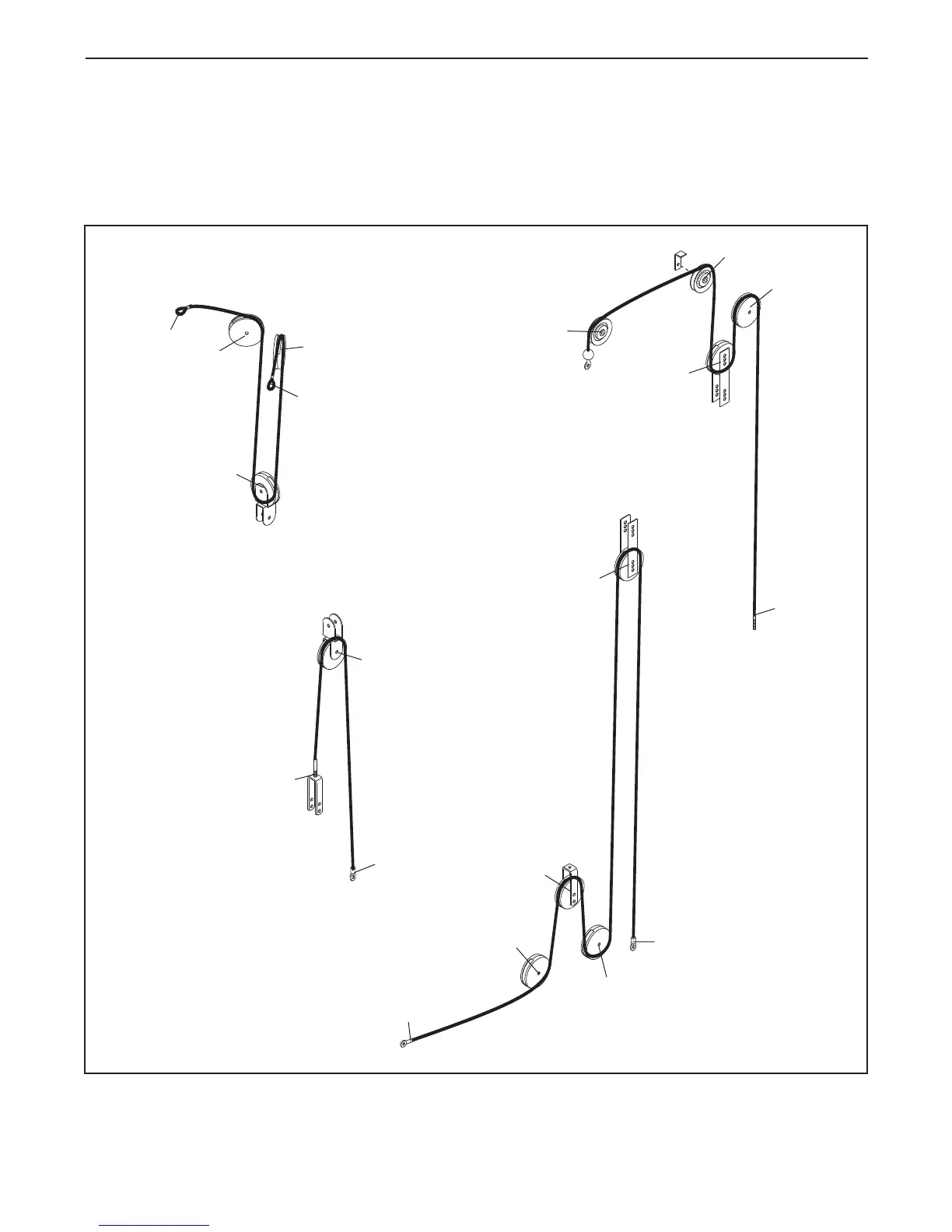

The cable diagrams below show the proper routing of the Short Cable (47), the Low Cable (48), the Press Cable
(49), and the High Cable (50). Use the diagrams to make sure that the cables have been assembled correctly. If
the cables have not been correctly routed, the weight system will not function properly and damage may occur.
The numbers show the correct route for each cable.
