Weider 8950 - Page 7

7
24
8
57
3
68
6
6.
Press a 45mm Square Inner Cap (24) into the
end of the Seat Frame (8).
Attach the Seat Frame (8) to the Upright (3) with
two M10 x 70mm Bolts (57) and two M10 Nylon
Locknuts (68).
10
68
70
70
63
69
62
26
3
4
5
4
14
3
12
15
10
13

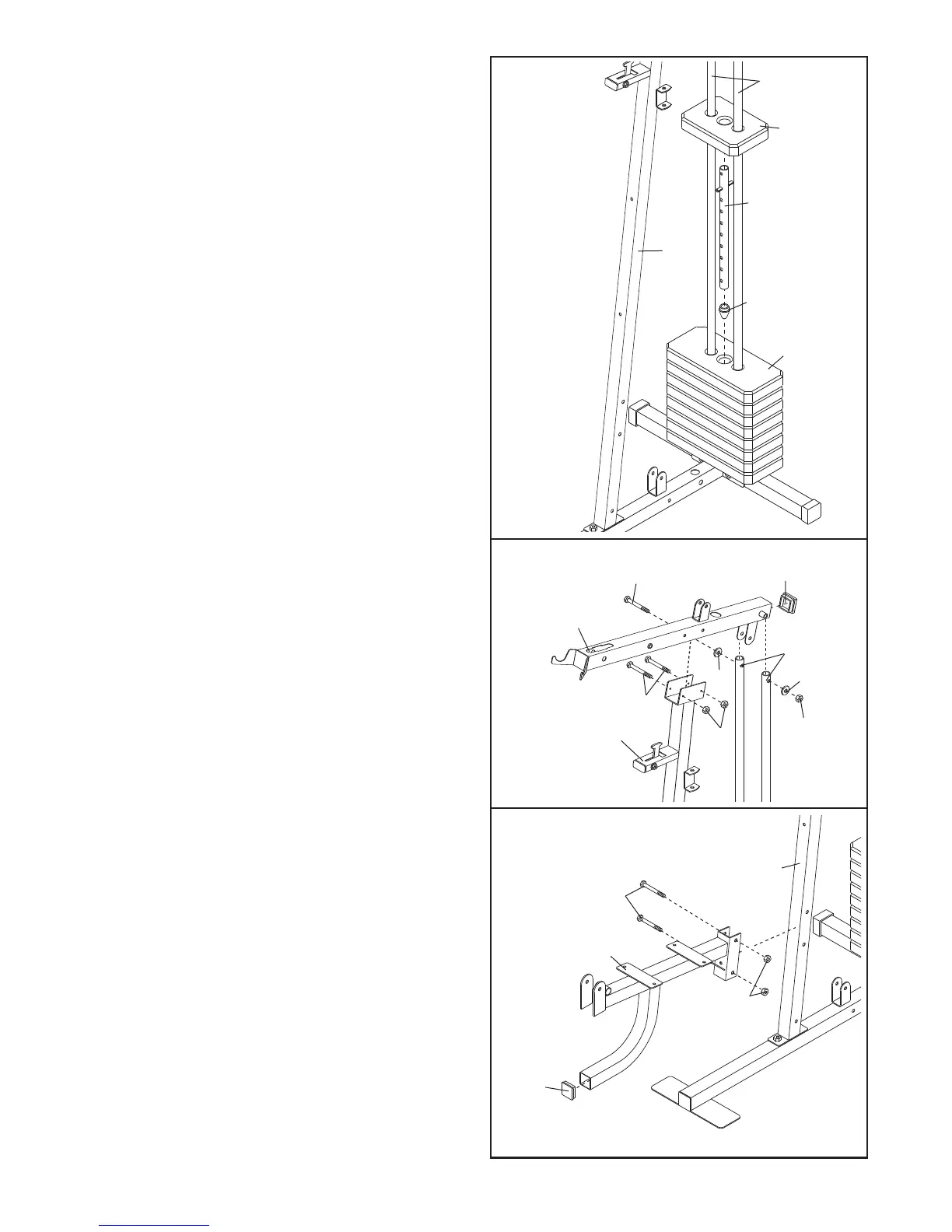

4. Slide the eight Weights (15) onto the Weight
Guides (10), with the slot for the Weight Pin (not
s
hown) on the bottom and on the side away from
the Upright (3).
Insert the Weight Tube Bumper (13) into the bot-
tom of the Weight Tube (12). Insert the Weight
Tube into the Weights (15).
Slide the Top Weight (14) onto the Weight Guides
(10).
5. Press a 50mm Square Inner Cap (26) into the
Top Frame (4).
Attach the Top Frame (4) to the Upright (3) with
two M8 x 68mm Bolts (63) and two M8 Nylon
Locknuts (69). Do not tighten the Locknuts yet.
Attach the Top Frame (4) between the Weight
Guides (10) with an M10 x 155mm Bolt (62), two
M10 Washers (70), and an M10 Nylon Locknut
(68).
Tighten the Nylon Locknuts (68, 69) used in
steps 2 and 5.
