CABLE DIAGRAMS

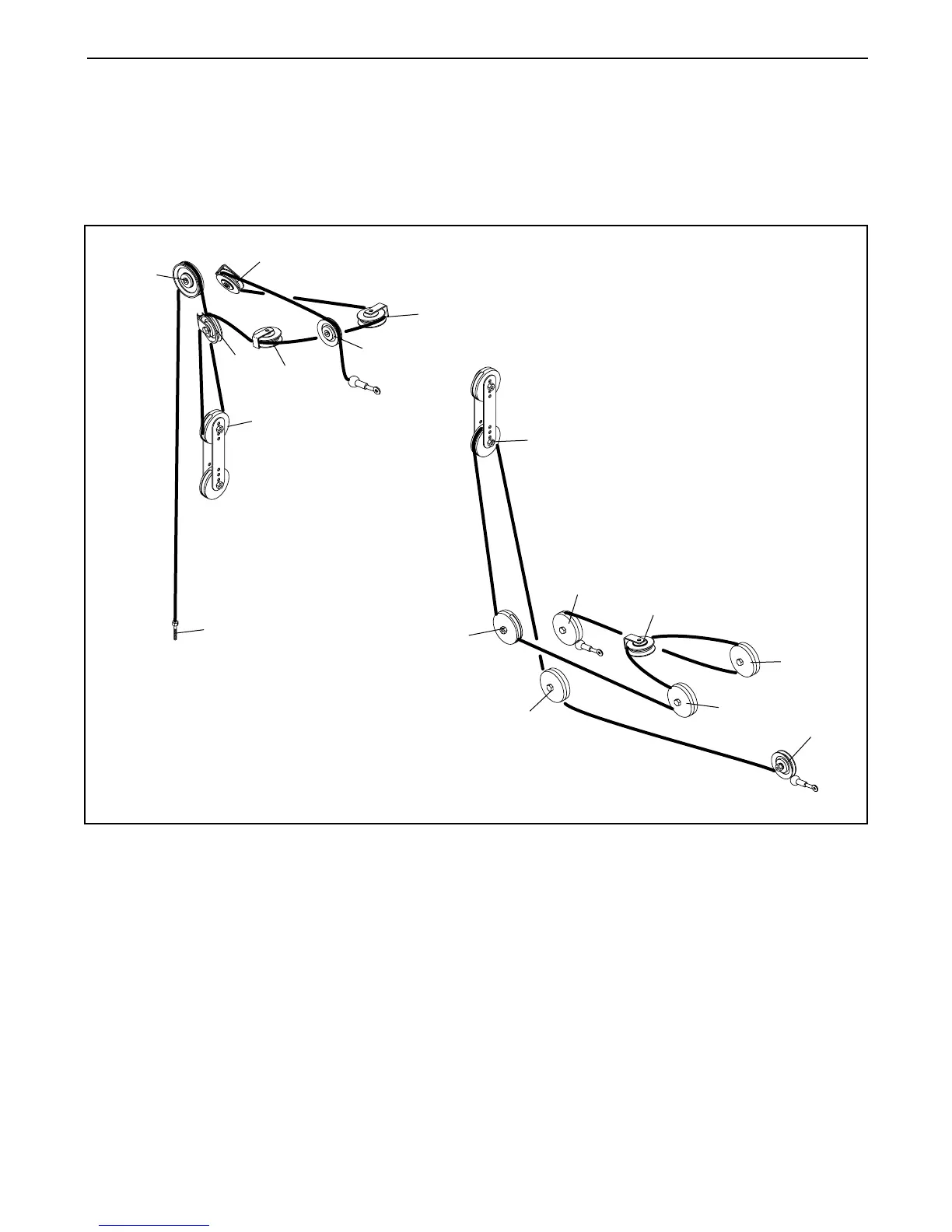

The cable diagrams below show the proper routing of the High Cable (23) and the Low Cable (69). Use the dia-
grams to make sure that the cables and the cable traps have been assembled correctly. If the cables have not
been correctly routed, the weight system will not function properly and damage may occur. The numbers show
the correct route for each cable. Make sure that the cable traps do not touch or bind the cables.
2
7
5
8
1
3
3
4
Low Cable (69)
High Cable (23)
1
2
8
4
5
7
6
6
20
