Weider 9940 - Arm Assembly

15

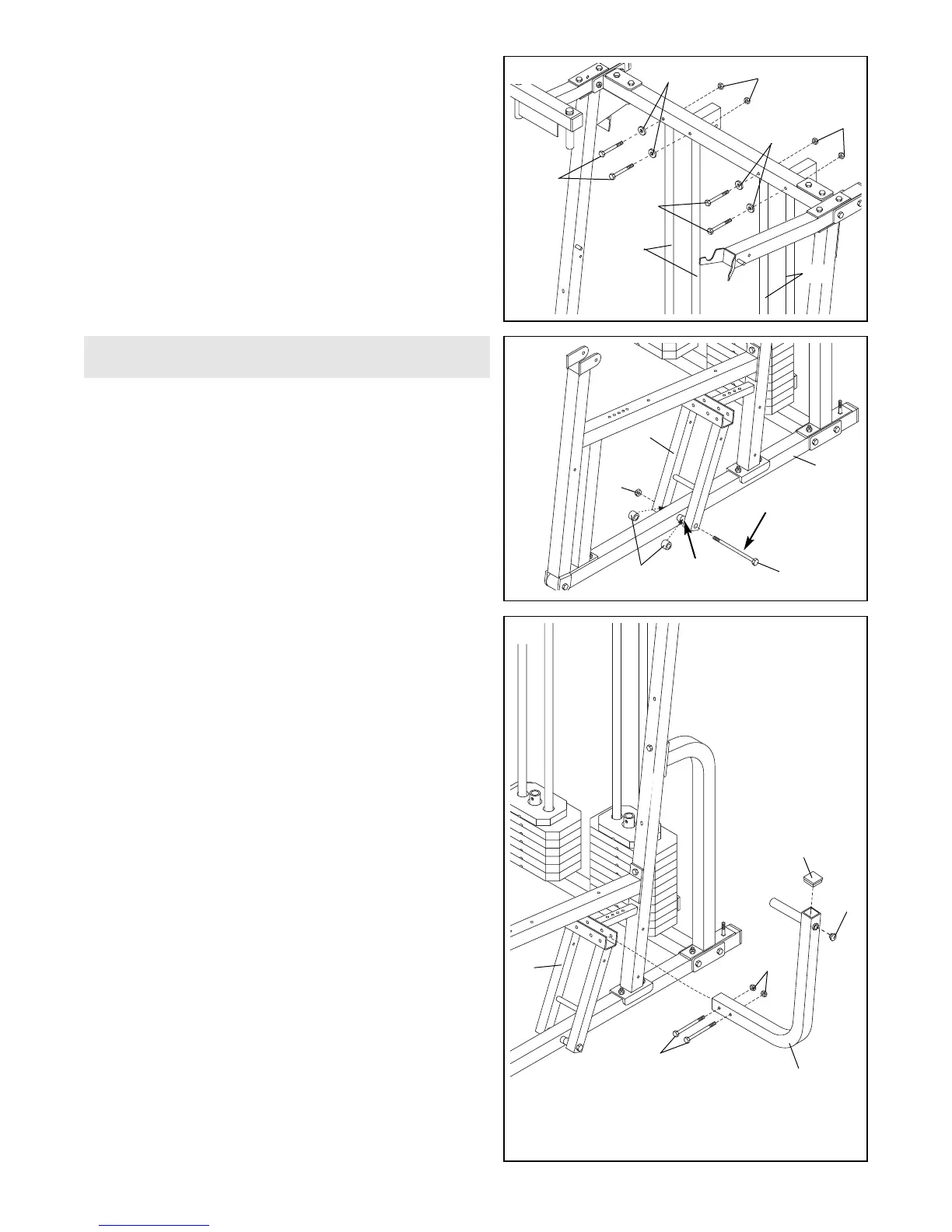

15. Attach each of the four Weight Guides (15) to the
Weight Top Frame (66) with a 3/8” x 3 3/4” Bolt (59),
a 3/8” Flat Washer (48), and a 3/8” Nylon Locknut
(50).
Important: Go back and fully tighten all Nylon
Locknuts used in steps 1 through 15.
10
16
48
59
59
15
48
15
50
50
17. Press a 1 3/4” Square Inner Cap (35) into the top of a
Press Arm (77). Press a 1” Round Inner Cap (76) into
the indicated hole in the Press Arm.
Attach the Press Arm (77) to the bracket on the Press
Frame (8) with two 5/16” x 2 1/2” Bolts (87) and two
5/16” Nylon Locknuts (64).
Repeat this step to assemble the second Press Arm
(77, not shown).
17
52
100
6
50
8
35
8
87
64
77
76
Welded
Tube
Lubricate
Arm Assembly
16. Locate and open the parts bag labeled “ARM
ASSEMBLY.”
Press a Plastic Bushing (100) onto each welded tube
on the Press Frame (8).
Lubricate the 3/8” x 8” Bolt (52). Attach the Press
Frame (8) to the welded tubes on the Press Base (6)
with the Bolt and a 3/8” Nylon Locknut (50). Do not
overtighten the Nylon Locknut; it must be easy to
pivot the Press Frame.
