Weider 9940 - Seat Assembly

20
Seat Assembly

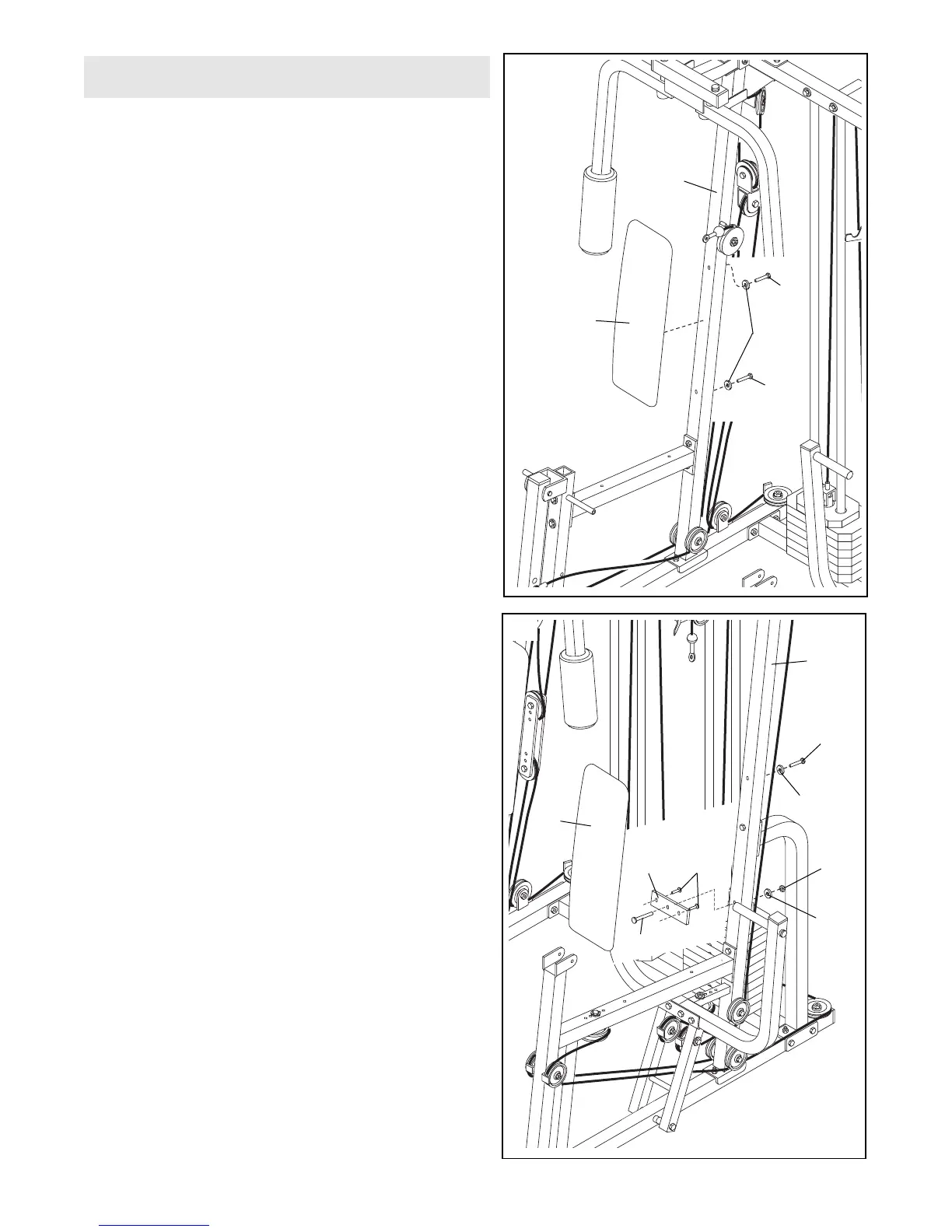

50. Locate and open the parts bag labeled “SEAT
ASSEMBLY.”
Attach the Backrest (12) to the indicated holes in the
Butterfly Upright (1) with two 1/4” x 2 1/2” Bolts (79)
and two 1/4” Flat Washers (71).
50
79
79
1
12
71
51. Insert a 1/4” x 2 1/2” Carriage Bolt (45) through the
center hole in a Seat Plate (65). Attach the Seat Plate
to the Press Backrest (99) with two 1/4” x 3/4” Bolts
(49).
Insert the 1/4” x 2 1/2” Carriage Bolt (45) into the
indicated hole in the Butterfly Upright (2) and secure
it with a 1/4” Flat Washer (71) and a 1/4” Nylon
Locknut (68). Secure the other end of the Press
Backrest (99) with a 1/4” x 2 1/2” Bolt (79) and a 1/4”
Flat Washer (71).
51
79
71
71
68
45
49
99
65
2
