19

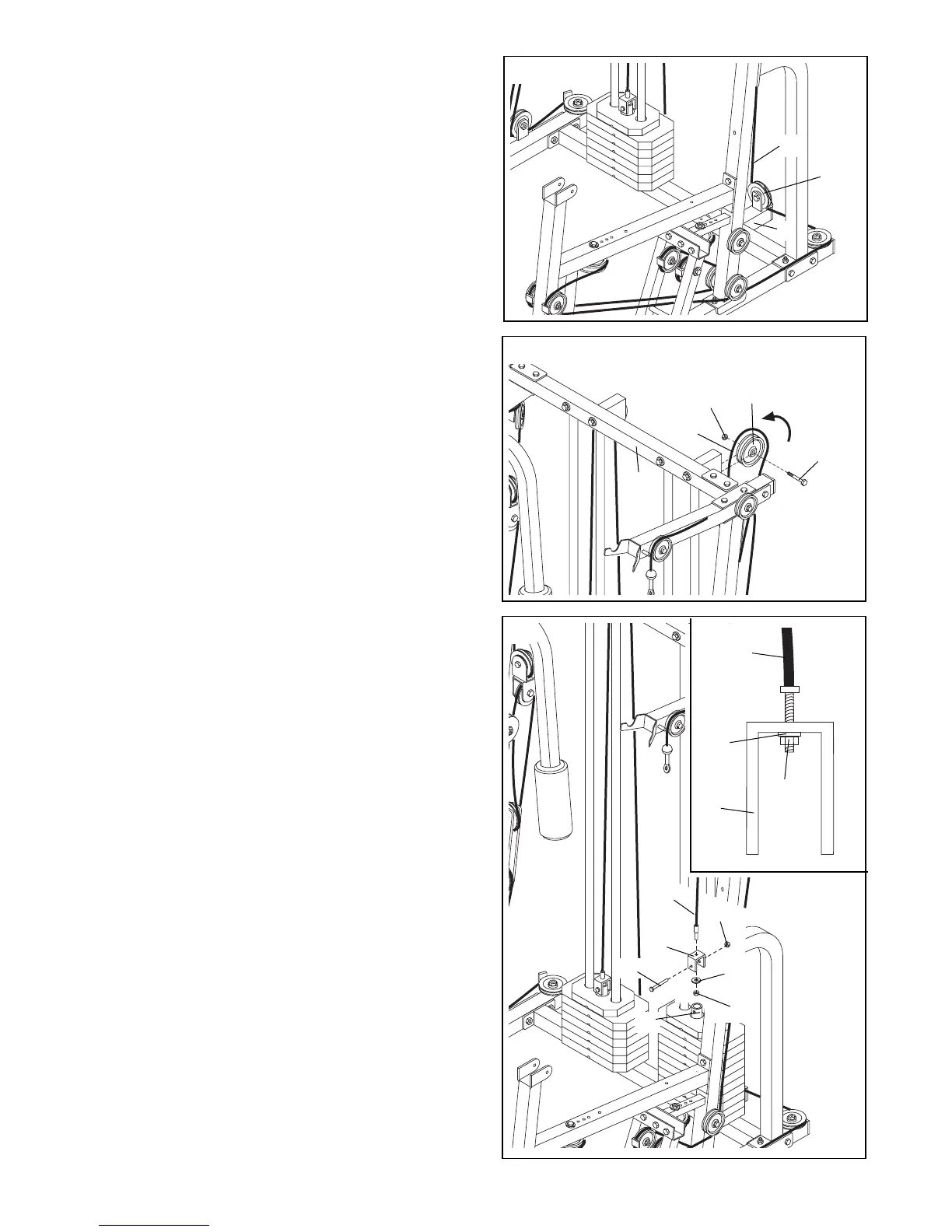

47. Route the threaded end of the Press Cable (72)
around the 3 1/2” Pulley (24) that was mounted on the
bracket on the Weight Base (5) in an earlier step.
47
24
5
72
48. Wrap the Press Cable (72) over a 4 1/2” Pulley (82)
in the direction shown. Attach the Pulley inside the
indicated bracket on the Weight Top Frame (66) with
a 3/8” x 1 3/4” Bolt (57) and a 3/8” Nylon Locknut
(50). Make sure the end of the Cable is routed
through the bracket, as shown.
48
57
72
66
50
82
49. Attach the threaded end of the Press Cable (72) to
the remaining “U”-Bracket (97) with a 1/4” Flat
Washer (71) and a 1/4” Nylon Locknut (68).
Attach the “U”-Bracket (97) to the hole in the Long
Weight Tube (70) with a 5/16” x 1 3/4” Bolt (96) and a
5/16” Nylon Locknut (64). Note: Do not completely
tighten the Nylon Locknut; it should be threaded
only two turns onto the end of the Cable, as
shown in the inset drawing.
Important: Follow all four cables from end to end
and make sure that they rest in the grooves of all
pulleys and that the cables and the pulleys move
smoothly.
49
71
64
72
97
96
70
68
72
97
72
68
