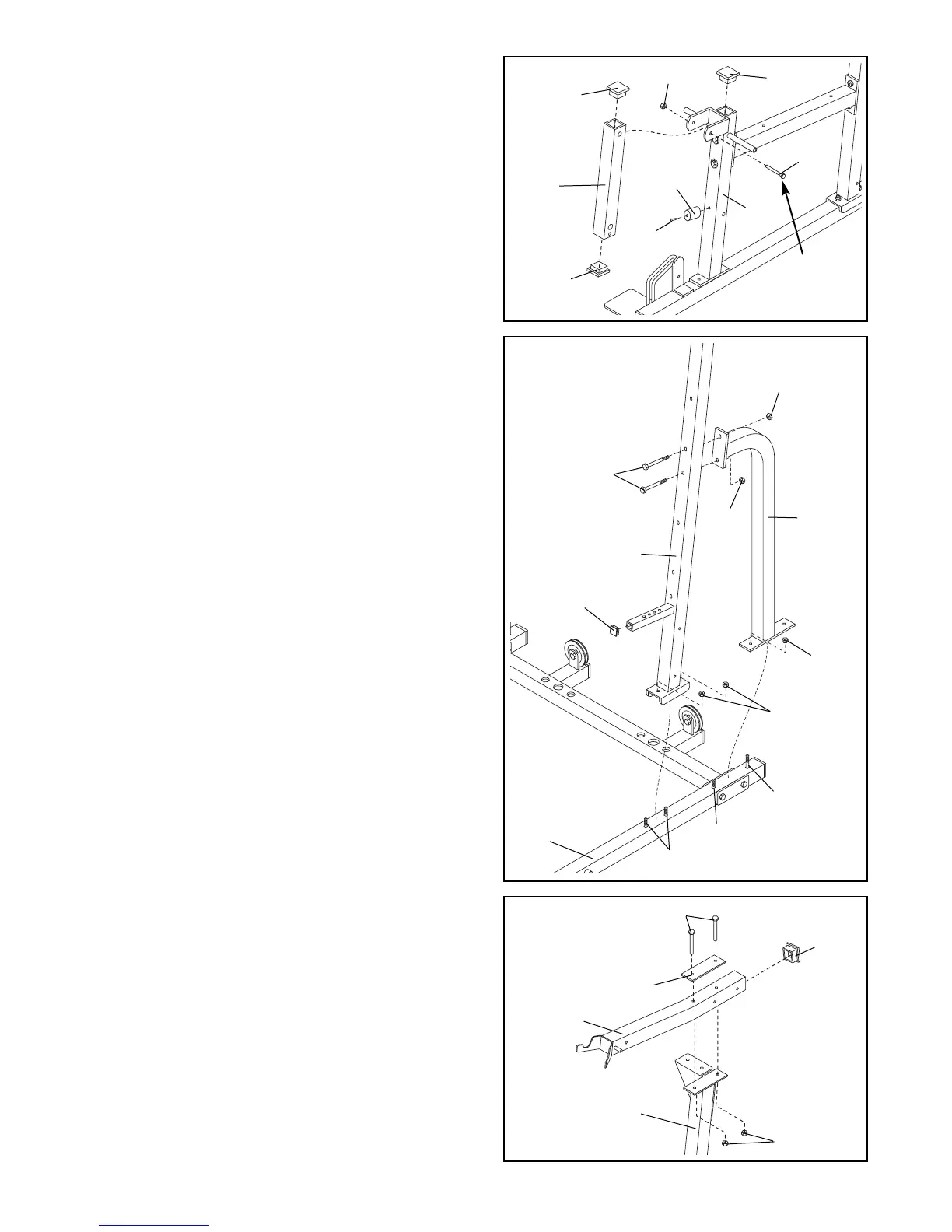

7. Press a 1” Square Inner Cap (98) into the small tube
on the Press Upright (2).
Place the bracket on the lower end of the Press
Upright (2) over the indicated 5/16” x 2 1/2” Carriage
Bolts (92) in the Press Base (6). Hand tighten two
5/16” Nylon Locknuts (64) onto the Bolts. Do not
tighten the Nylon Locknuts yet.
Place the bracket on the lower end of the Support
Frame (3) over the indicated 3/8” x 2 1/2” Carriage
Bolt (101) and the 3/8” x 4” Carriage Bolt (102) in the
Press Base (6). Hand tighten a 3/8” Nylon Jamnut
(63) onto the 3/8” x 2 1/2” Carriage Bolt (101). Do not
tighten the Nylon Jamnut yet.
Note: Do not thread a Jamnut (63) onto the 3/8” x
4” Carriage Bolt (102) yet.
Attach the Support Frame (3) to the Press Upright (2)
with two 5/16” x 2 1/2” Carriage Bolts (92) and two
5/16” Nylon Locknuts (64). Do not tighten the Nylon
Locknuts yet.
7
7
6. Press a 2” Square Inner Cap (28) half way into the
top of the Front Leg (20). Press a 2” Square Inner
Cap (28) into each end of the Small Leg Lever (41).
Attach the Bumper (40) to the indicated hole in the
Front Leg (20) with a 1” Tap Screw (80).
Lubricate the 3/8” x 3 1/4” Bolt (62). Attach the Small
Leg Lever (41) to the bracket on the Front Leg (20)
with the Bolt and a 3/8” Nylon Jamnut (63). Do not
overtighten the Nylon Jamnut; it must be easy to
pivot the Leg Lever.
6
92
101
102
6
92
28
28
28
41
40
80
2
63
64
3
64
64
98
63
62
Lubricate
20
8. Press a 2” Square Inner Cap (28) into the Press Top
Frame (9).
Attach the Press Top Frame (9) to the indicated
bracket at the top of the Press Upright (2) with two
5/16” x 2 3/4” Bolts (89), a Support Plate with 3 1/2”
center holes (93), and two 5/16” Nylon Locknuts (64).
8
93
64
9
89
28
2
