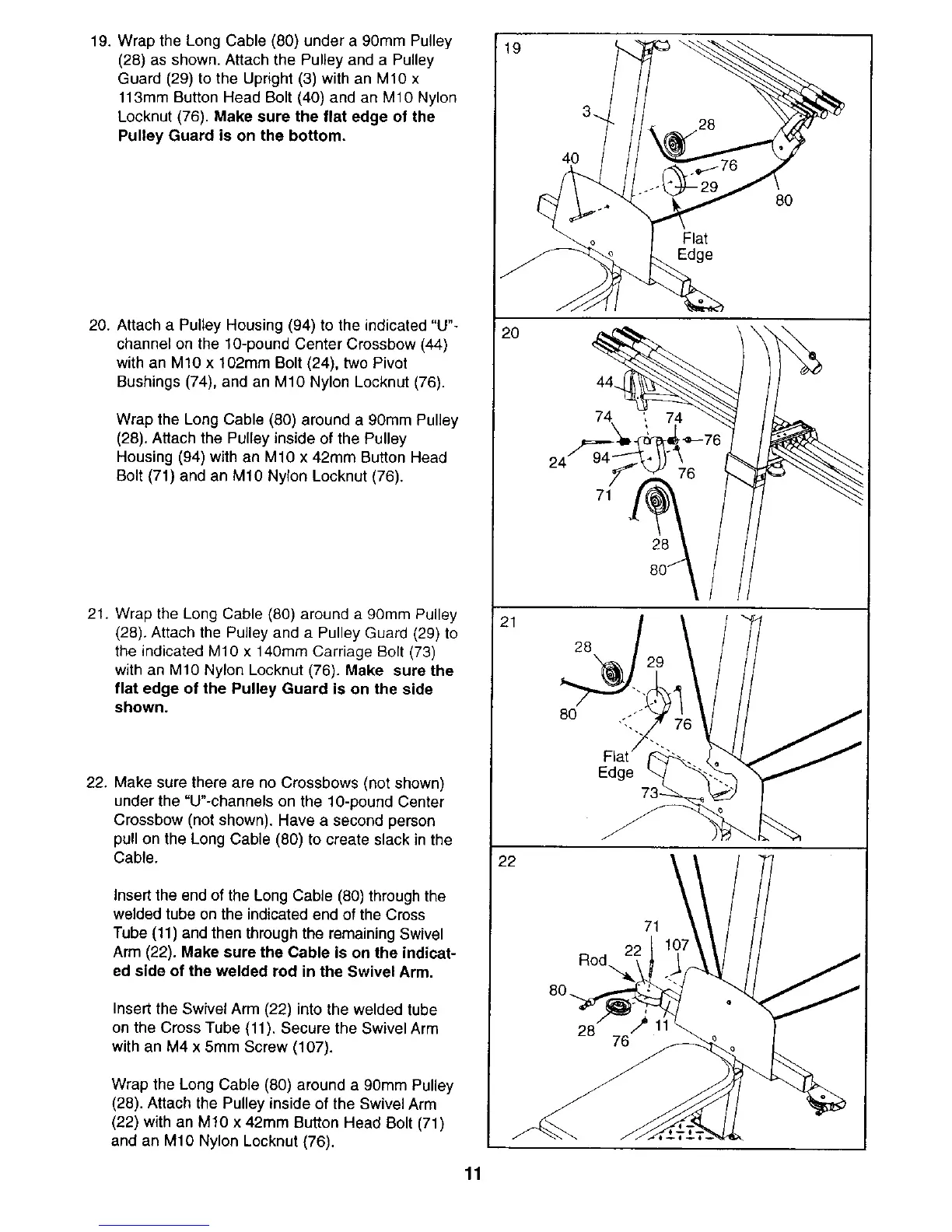

19. Wrap the Long Cable (80) under a 90mm Pulley
(28) as shown. Attach the Pulley and a Pulley
Guard (29) to the Upright (3) with an M10 x
113mm Button Head Bolt (40) and an M10 Nylon
Locknut (76). Make sure the flat edge of the
Pulley Guard is on the bottom.
20. Attach a Pulley Housing (94) to the indicated "U"-
channel on the 10-pound Center Crossbow (44)
with an M10 x 102ram Bolt (24), two Pivot
Bushings (74), and an M10 Nylon Locknut (76).
Wrap the Long Cable (80) around a 90ram Pulley
(28). Attach the Pulley inside of the Pulley
Housing (94) with an M10 x 42ram Button Head
Bolt (71) and an M10 Nylon Locknut (76).
21. Wrap the Long Cable (80) around a 90ram Pulley
(28). Attach the Pulley and a Pulley Guard (29) to
the indicated M10 x 140ram Carriage Bolt (73)
with an M10 Nylon Locknut (76). Make sure the
flat edge of the Pulley Guard is on the side
shown.
22. Make sure there are no Crossbows (not shown)
under the "U"-channels on the 10-pound Center
Crossbow (not shown). Have a second person
pull on the Long Cable (80) to create slack in the
Cable.
Insert the end of the Long Cable (80) through the
welded tube on the indicated end of the Cross
Tube (11) and then through the remaining Swivel
Arm (22). Make sure the Cable is on the indicat-
ed side of the welded rod in the Swivel Arm.
Insert the Swivel Arm (22) into the welded tube
on the Cross Tube (11). Secure the Swivel Arm
with an M4 x 5mm Screw (107).
Wrap the Long Cable (80) around a 90mm Pulley
(28). Attach the Pulley inside of the Swivel Arm
(22) with an M10 x 42mm Button Head Bolt (71)
and an M10 Nylon Locknut (76).
19
2O
21
22
11
3_
4O
24
71
28
8O
Edge
Flat
Edge
', 74
76
28
71
8O
To Next Page
