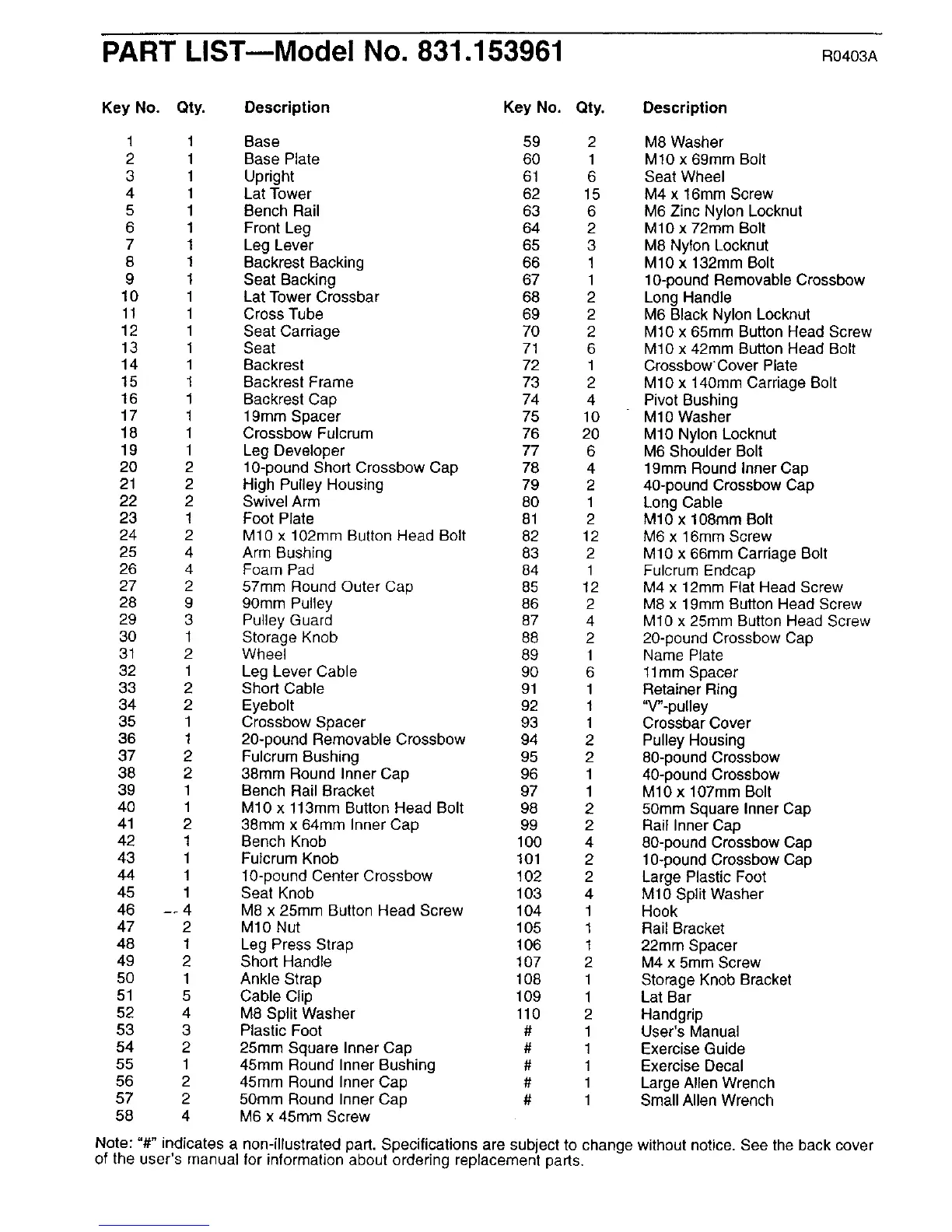

PART LISTmModel NO. 831.153961 R0403A
Key No. Qty. Description Key No. Qty. Description
1 1 Base 59 2 M8 Washer
2 1 Base Plate 60 1 M10 x 69ram Bolt
3 1 Upright 61 6 Seat Wheel
4 1 Lat Tower 62 15 M4 x 16ram Screw
5 1 Bench Rail 63 6 M6 Zinc Nylon Locknut
6 1 Front Leg 64 2 M10 x 72ram Bolt
7 1 Leg Lever 65 3 M8 Nylon Locknut
8 1 Backrest Backing 66 1 M10 x 132mm Bolt
9 1 Seat Backing 67 1 10-pound Removable Crossbow
10 1 Lat Tower Crossbar 68 2 Long Handle
11 1 Cross Tube 69 2 M6 Black Nylon Locknut
12 1 Seat Carriage 70 2 M10 x 65mm Button Head Screw
13 1 Seat 71 6 M10 x 42mm Button Head Bolt
14 1 Backrest 72 1 Crossbow'Cover Plate
15 1 Backrest Frame 73 2 M10 x 140mm Carriage Bolt
16 1 Backrest Cap 74 4 Pivot Bushing
17 1 19mm Spacer 75 10 M10 Washer
18 1 Crossbow Fulcrum 76 20 M10 Nylon Locknut
19 1 Leg Developer 77 6 M6 Shoulder Bolt
20 2 10-pound Short Crossbow Cap 78 4 19mm Round Inner Cap
21 2 High Pulley Housing 79 2 40-pound Crossbow Cap
22 2 Swivel Arm 80 1 Long Cable
23 1 Foot Plate 81 2 M10 x 108ram Bolt
24 2 M10 x 102mm Button Head Bolt 82 12 M6 x 16ram Screw
25 4 Arm Bushing 83 2 M10 x 66mm Carriage Bolt
26 4 Foam Pad 84 1 Fulcrum Endcap
27 2 57ram Round Outer Cap 85 12 M4 x 12mm Flat Head Screw
28 9 90mm Pulley 86 2 M8 x 19mm Button Head Screw
29 3 Pulley Guard 87 4 M10 x 25mm Button Head Screw
30 1 Storage Knob 88 2 20-pound Crossbow Cap
31 2 Wheel 89 1 Name Plate
32 1 Leg Lever Cable 90 6 11mm Spacer
33 2 Short Cabre 91 1 Retainer Ring
34 2 Eyebolt 92 1 "V"-pulley
35 1 Crossbow Spacer 93 1 Crossbar Cover
36 1 20-pound Removable Crossbow 94 2 Pulley Housing
37 2 Fulcrum Bushing 95 2 80-pound Crossbow
38 2 38mm Round Inner Cap 96 1 40-pound Crossbow
39 1 Bench Rail Bracket 97 1 M10 x 107ram Bolt
40 1 M10 x 113mm Button Head Bolt 98 2 50ram Square Inner Cap
41 2 38ram x 64mm Inner Cap 99 2 Rail Inner Cap
42 1 Bench Knob 100 4 80-pound Crossbow Cap
43 1 Fulcrum Knob 101 2 10-pound Crossbow Cap
44 1 10-pound Center Crossbow 102 2 Large Plastic Foot
45 1 Seat Knob 103 4 M10 Split Washer
46 -_ 4 M8 x 25mm Button Head Screw 104 1 Hook
47 2 M10 Nut 105 1 Rail Bracket
48 1 Leg Press Strap 106 t 22mm Spacer
49 2 Short Handle 107 2 M4 x 5ram Screw
50 1 Ankle Strap 108 1 Storage Knob Bracket
51 5 Cable Clip 109 1 Lat Bar
52 4 M8 Split Washer 110 2 Handgrip
53 3 Plastic Foot # 1 User's Manual
54 2 25mm Square Inner Cap # 1 Exercise Guide
55 1 45mm Round Inner Bushing # 1 Exercise Decal
56 2 45ram Round Inner Cap # 1 Large Allen Wrench
57 2 50ram Round Inner Cap # 1 Small Allen Wrench
58 4 M6 x 45mm Screw
Note: "#" indicates a non-illustrated part. Specifications are subject to change without notice. See the back cover
of the user's manual for information about ordering repracement pads,
