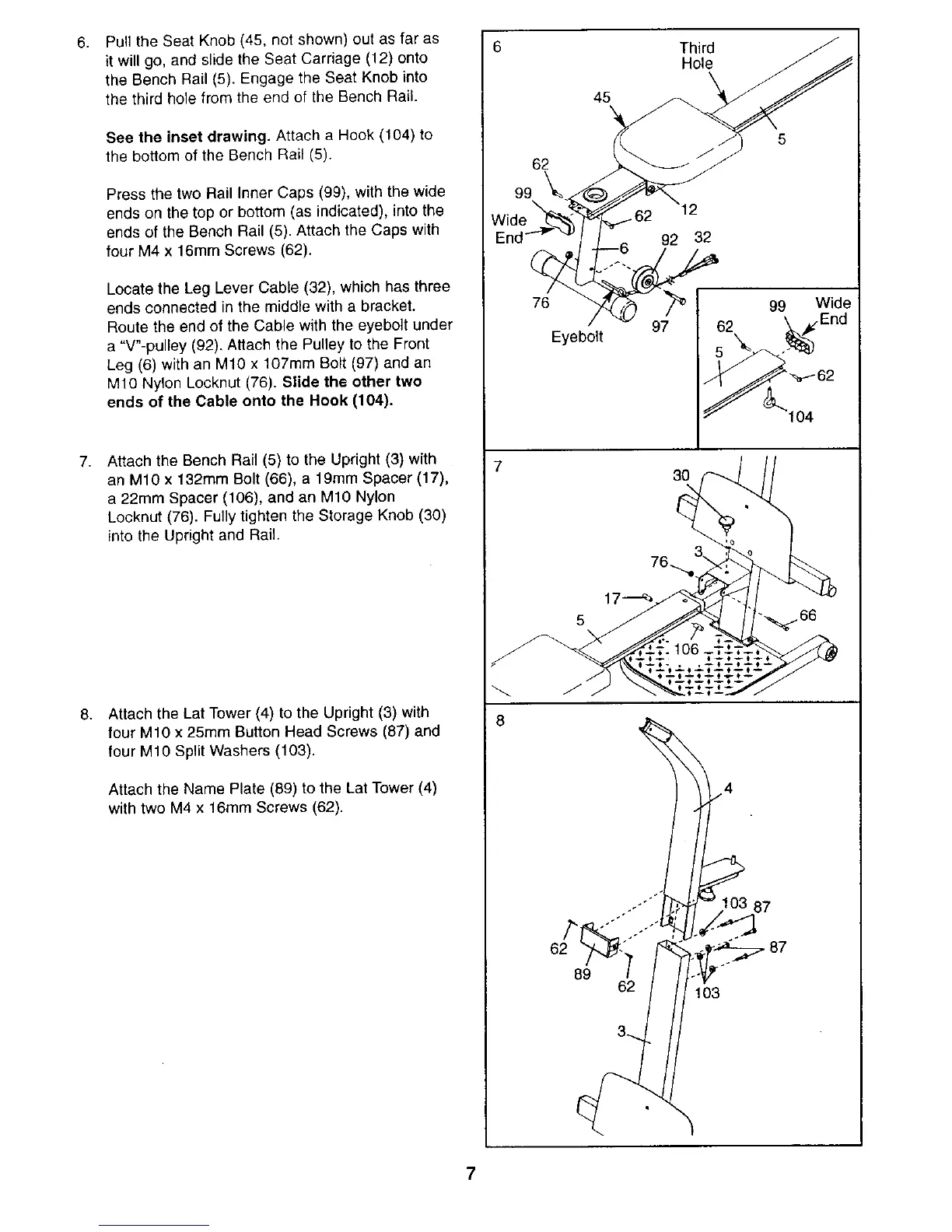

6,
Pull the Seat Knob (45, not shown) out as far as
it will go, and slide the Seat Carriage (12) onto
the Bench Rail (5). Engage the Seat Knob into
the third hole from the end of the Bench Rail
See the inset drawing. Attach a Hook (104) to
the bottom of the Bench Rail (5).
Press the two Rail Inner Caps (99), with the wide
ends on the top or bottom (as indicated), into the
ends of the Bench Rail (5). Attach the Caps with
four M4 x 16mm Screws (62).
Locate the Leg Lever Cable (32), which has three
ends connected in the middle with a bracket.
Route the end of the Cable with the eyebolt under
a "V"-pulley (92). Attach the Pulley to the Front
Leg (6) with an MIO x 107ram Bo_t (97) and an
M10 Nylon Locknut (76). Slide the other two
ends of the Cable onto the Hook (104).
,
Attach the Bench Rail (5) to the Upright (3) with
an M10 x 132mm Bolt (66), a 19ram Spacer (17),
a 22mm Spacer (106), and an M10 Nylon
Locknut (76). Fully tighten the Storage Knob (30)
into the Upright and Rail.
8. Attach the Lat Tower (4) to the Upright (3) with
four MtO x 25ram Button Head Screws (87) and
four M10 Split Washers (103).
Attach the Name Plate (89) to the Lat Tower (4)
with two M4 x 16mm Screws (62).
7
8
62
99
76
Eyebolt
Third
Hole
45
97
3O
4
.-'"" ! 03 87
.87
89 ""
62 103
7
