8
4
59
41
12
46
4. Attach the Brace (12) to the Stabilizer (59) with
an M8 x 100mm Bolt (46) and an M8 Washer
(41); do not tighten the Bolt yet.
3
1
2
45
42
42
35

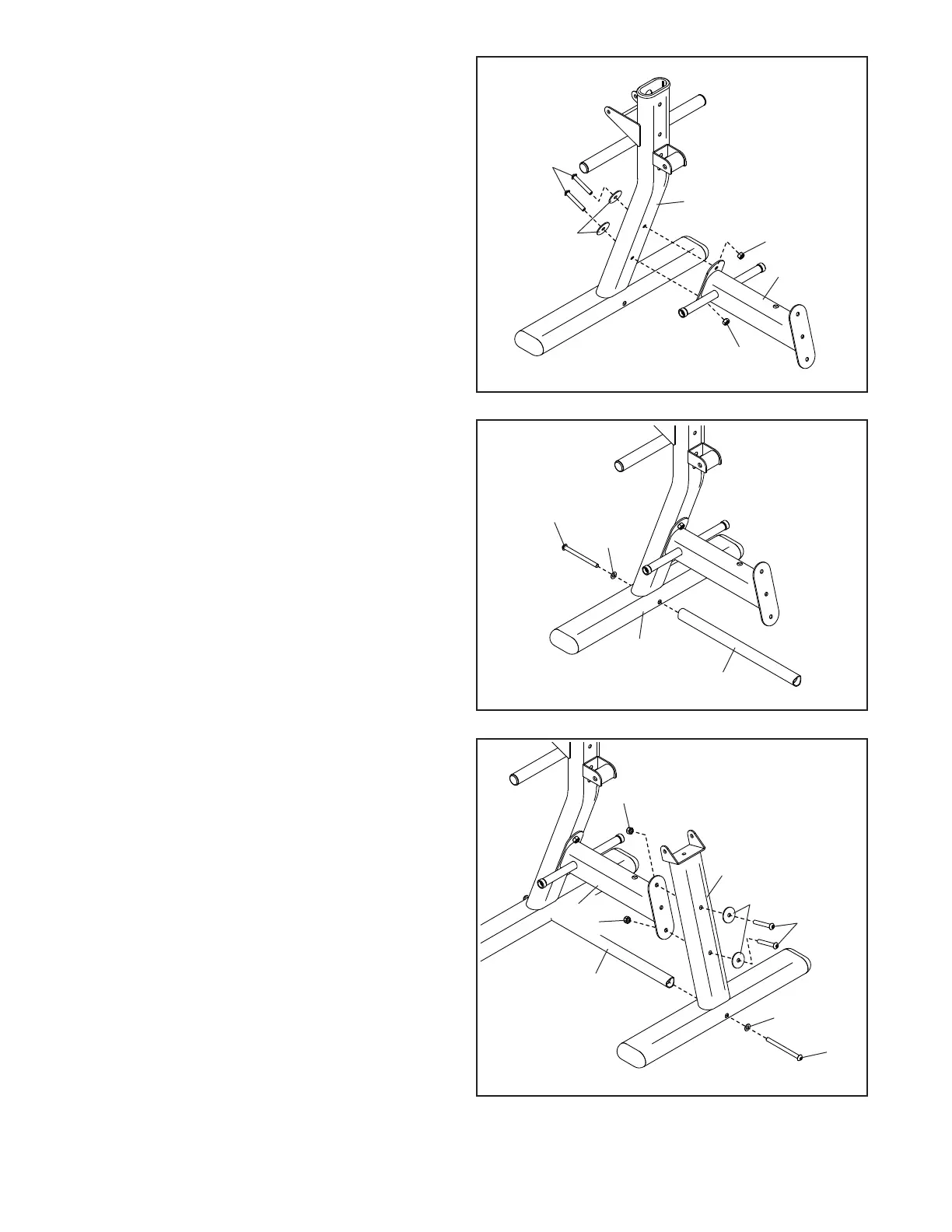

3. Orient the Base Bracket (2) and the Upright
Base (1) as shown. Attach the Base Bracket
to the Upright Base with two M8 x 55mm Bolts
(45), two M8 x 35mm Washers (35), and two M8
Locknuts (42); do not tighten the Locknuts yet.
5
12
5. Orient the Bench Base (3) as shown. Attach the
Bench Base to the Base Bracket (2) with two
M8 x 55mm Bolts (45), two M8 x 35mm Washers
(35), and two M8 Locknuts (42); do not tighten
the Locknuts yet.
Next, attach the Bench Base (3) to the Brace
(12) with an M8 x 100mm Bolt (46) and an M8
Washer (41).
Then, tighten the two M8 Locknuts (42).
See step 3. Tighten the two M8 Locknuts (42).
See step 4. Tighten the M8 x 100mm Bolt (46).
3
45
46
42
35
41
2
42
