РАСЕ
12
WEIDER
SPORTING
GOODS

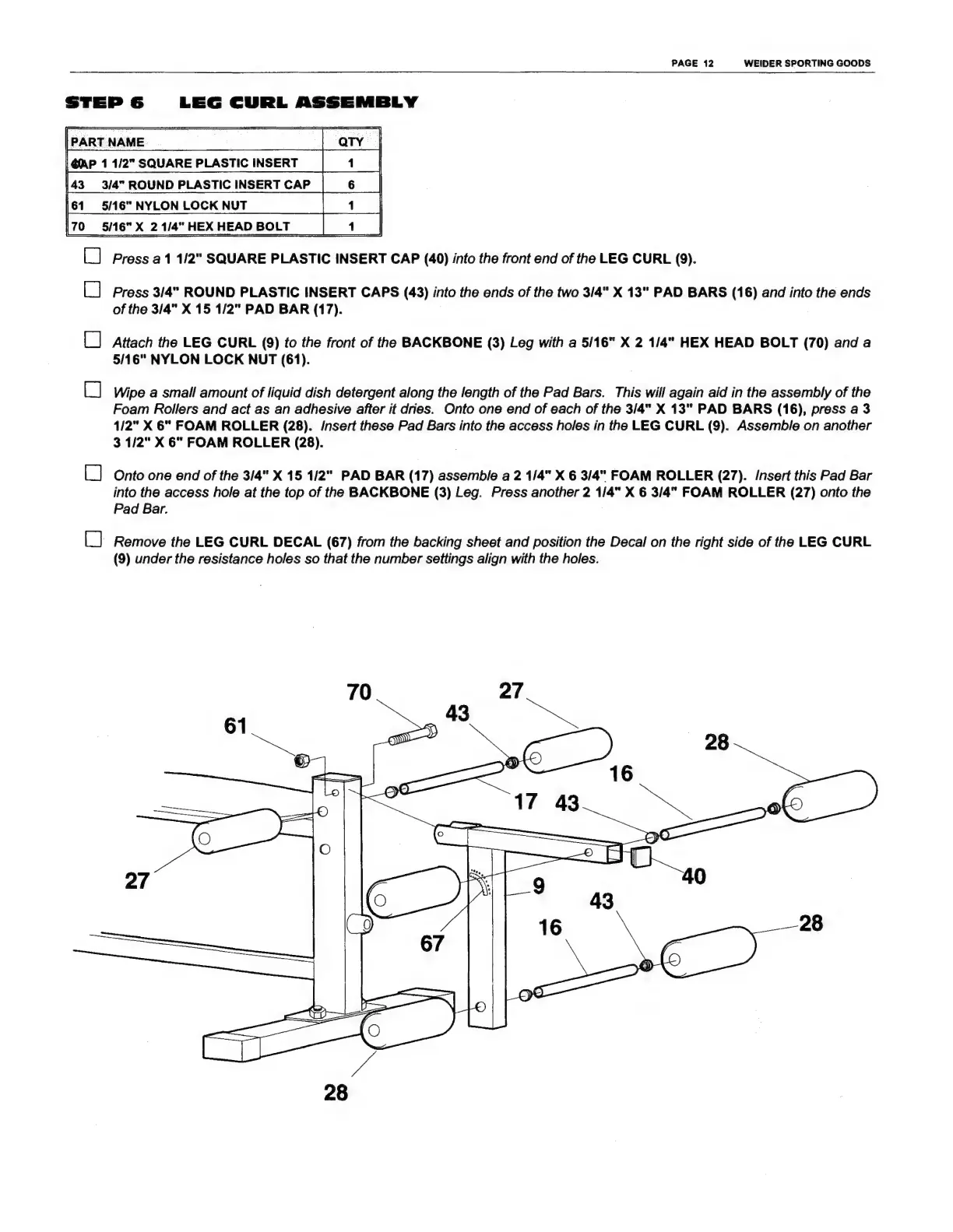

STEP
6
LEG
CURL
ASSEMBLY
43
L]
m
PARTNAME
|
ФАР
1
1/2"
SQUARE
PLASTIC
INSERT
|
1
|
3/4"
ROUND
PLASTIC
INSERTCAP
|
6
|
|641
5/16"
NYLON
LOCK
NUT
70
5/16"
X
2
1/4"
HEX
HEAD
BOLT
mE
Press
a
1
1/2"
SQUARE
PLASTIC
INSERT
CAP
(40)
into
the
front
end
of
the
LEG
CURL
(9).
Press
3/4"
ROUND
PLASTIC
INSERT
CAPS
(43)
into
the
ends
of
the
two
3/4"
X
13"
PAD
BARS
(16)
and
into
the
ends
of
the
3/4"
X
15
1/2"
PAD
BAR
(17).
|
[
]
Attach
the
LEG
CURL
(9)
to
the
front
of
the
BACKBONE
(3)
Leg
with
a
5/16"
X
2
1/4"
HEX
HEAD
BOLT
(70)
and
a
L]
5/16"
NYLON
LOCK
NUT
(61).
Wipe
a
small
amount
of
liquid
dish
detergent
along
the
length
of
the
Pad
Bars.
This
will
again
aid
in
the
assembly
of
the
Foam
Rollers
and
act
as
an
adhesive
after
it
dries.
Onto
one
end
of
each
of
the
3/4"
X
13"
PAD
BARS
(16),
press
а
3
1/2"
X
6"
FOAM
ROLLER
(28).
/nsert
these
Pad
Bars
into
the
access
holes
in
the
LEG
CURL
(9).
Assemble
on
another
3
1/2"
X
6"
FOAM
ROLLER
(28).
Onto
one
end
of
the
3/4"
X
15
1/2"
PAD
BAR
(17)
assemble
a
2
1/4"
X
6
3/4"
FOAM
ROLLER
(27).
Insert
this
Pad
Bar
into
the
access
hole
at the
top
of
the
BACKBONE
(3)
Leg.
Press
another
2
1/4"
X
6
3/4"
FOAM
ROLLER
(27)
onto
the
Pad
Bar.
-
Remove
the
LEG
CURL
DECAL
(67)
from
the
backing
sheet
and
position
the
Decal
on
the
right
side
of
the
LEG
CURL
(9)
under
the
resistance
holes
so
that
the
number
settings
align
with
the
holes.
27
