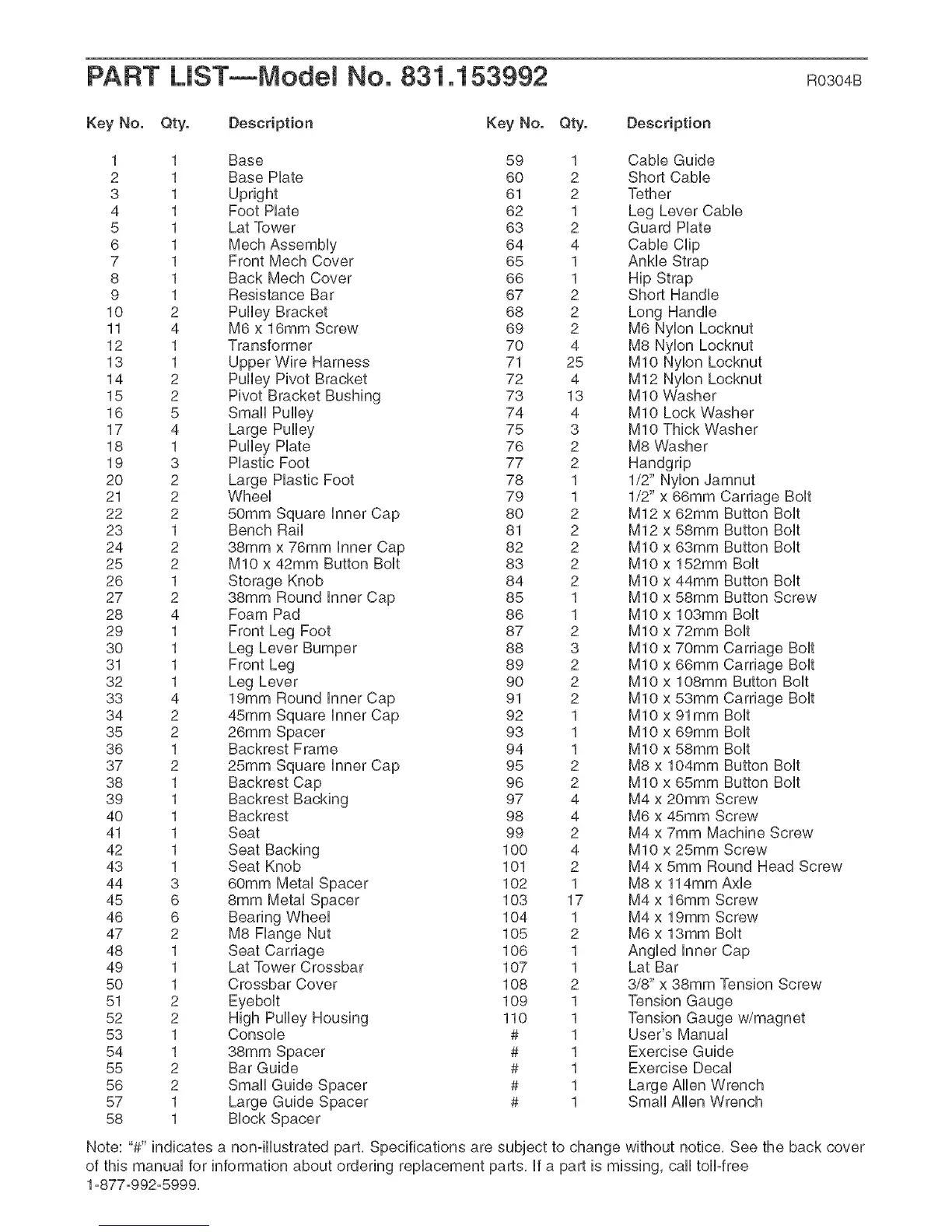

PART LiST--Model No. 831.153992 Ro3o4B
Key No. Qty. Description Key No. Qty. Description
1 1 Base 59 1 CaMe Guide
2 1 Base Hate 60 2 Short Cabb
3 1 Upright 61 2 Tether
4 1 Foot Hate 62 1 Leg Lever CaMe
5 1 Lat Tower 63 2 Guard Hate
6 1 Mech AssemMy 64 4 CaMe CHp
7 1 Front Mech Cover 65 1 AnHe Strap
8 1 Back Mech Cover 66 1 Hip Strap
9 1 Resistance Bar 67 2 Short Handb
10 2 Pulley Bracket 68 2 Long Handb
11 4 M6 x 16mm Screw 69 2 M6 Nybn Locknut
12 1 Transformer 70 4 M8 Nybn Locknut
13 1 Upper Wire Harness 71 25 MIO Nybn Locknut
14 2 Pulley Pivot Bracket 72 4 M12 Nybn Locknut
15 2 Pivot Bracket Bushing 73 13 MIO Washer
16 5 Small Pulley 74 4 MIO Lock Washer
17 4 Large Pulley 75 3 MIO Thick Washer
18 1 Pulley Hate 76 2 M8 Washer
19 3 Hastic Foot 77 2 Handgrip
20 2 Large Hastb Foot 78 1 1/2" Nybn Jamnut
21 2 WheeU 79 1 1/2" x 66mm Carriage BoUt
22 2 50mm Square inner Cap 80 2 M12 x 62mm Button BoUt
23 1 Bench Rail 81 2 M12 x 58mm Button BoUt
24 2 38mm x 76mm Inner Cap 82 2 MIO x 63mm Button Bolt
25 2 MIO x 42mm Button Bolt 83 2 MIO x 152mm Bolt
26 1 Storage Knob 84 2 MIO x 44mm Button Bolt
27 2 38mm Round Inner Cap 85 1 MIO x 58mm Button Screw
28 4 Foam Pad 86 1 MIO x 103mm Bolt
29 1 Front Leg Foot 87 2 MIO x 72mm Bolt
30 1 Leg Lever Bumper 88 3 MIO x 70mm Carriage Bolt
31 1 Front Leg 89 2 MIO x 66mm Carriage Bolt
32 1 Leg Lever 90 2 MIO x 108mm Button Bolt
33 4 19mm Round Inner Cap 91 2 MIO x 53mm Carriage Bolt
34 2 45mm Square Inner Cap 92 1 MIO x 91mm Bolt
35 2 26mm Spacer 93 1 MIO x 69mm Bolt
36 1 Backrest Frame 94 1 MIO x 58mm Bolt
37 2 25mm Square Inner Cap 95 2 M8 x 104mm Button Bolt
38 1 Backrest Cap 96 2 MIO x 65mm Button Bolt
39 1 Backrest Backing 97 4 M4 x 20mm Screw
40 1 Backrest 98 4 M6 x 45mm Screw
41 1 Seat 99 2 M4 x 7mm Machine Screw
42 1 Seat Backing 100 4 MIO x 25mm Screw
43 1 Seat Knob 101 2 M4 x 5mm Round Head Screw
44 3 60mm Metal Spacer 102 1 M8 x 114mm Axle
45 6 8mm Metal Spacer 103 17 M4 x 16mm Screw
46 6 Bearing Wheel 104 1 M4 x 19mm Screw
47 2 M8 Flange Nut 105 2 M6 x 13mm Bolt
48 1 Seat Carriage 106 1 Angled Inner Cap
49 1 Lat Tower Crossbar 107 1 Lat Bar
50 1 Crossbar Cover 108 2 3/8" x 38mm Tension Screw
51 2 Eyebolt 109 1 Tension Gauge
52 2 High Pulley Housing 110 1 Tension Gauge w/magnet
53 1 Console # 1 User's Manual
54 1 38mm Spacer # 1 Exercise Guide
55 2 Bar Guide # 1 Exercise Decal
56 2 Small Guide Spacer # 1 Large Allen Wrench
57 1 Large Guide Spacer # 1 Small Allen Wrench
58 1 Block Spacer
Note: "#" indicates a non-illustrated part, Specifications are subject to change without notice, See the back cover
of this manual for information about ordering replacement parts, if a part is missing, call toll-free
1°877°992°5999,
