PART iDENTiFiCATiON CHART

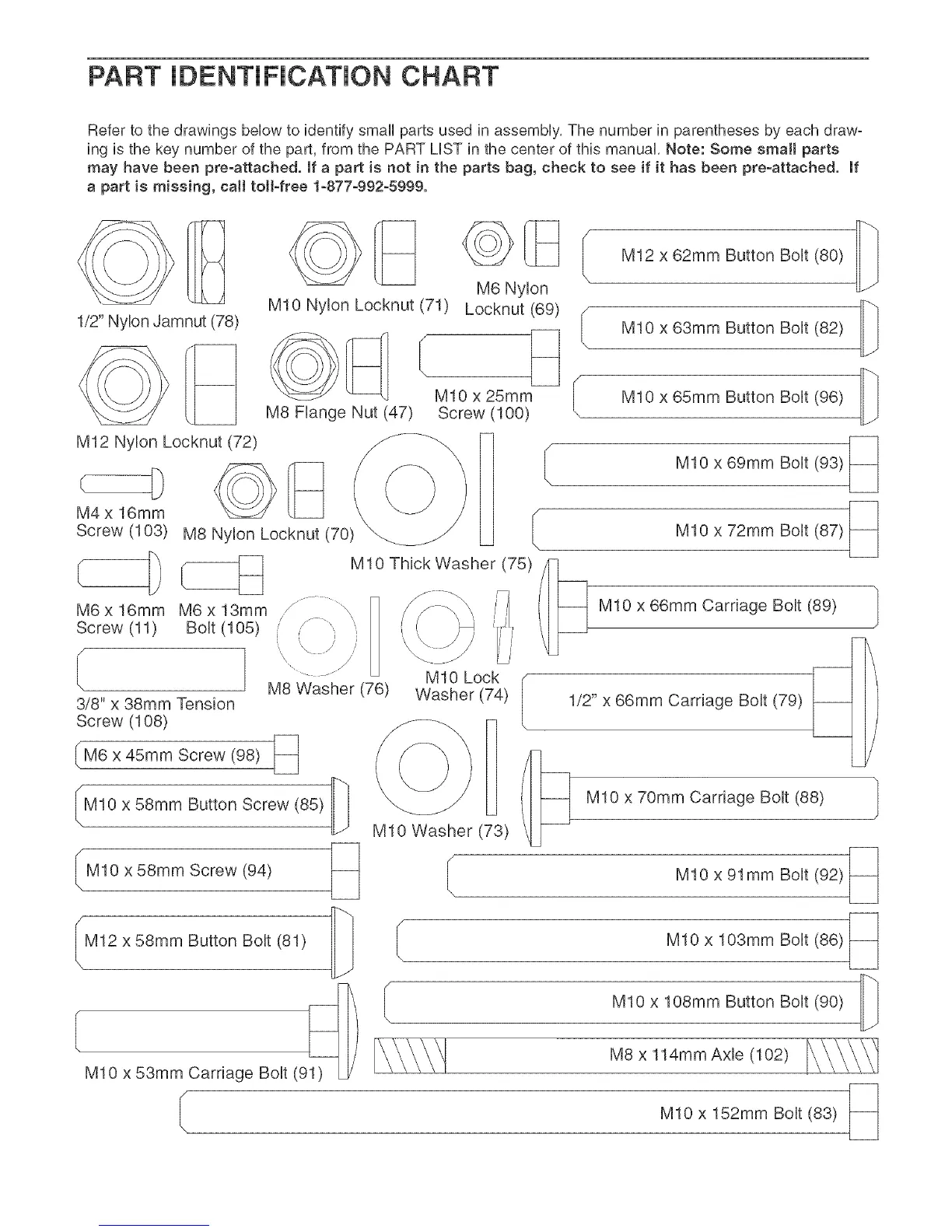

Refer to the drawings beUowto identify small parts used in assemMy, The number in parentheses by each draw-
ing is the key number of the part, from the PART LUSTin the center of this manual Note: Some srnaH parts
may have been pre-attached. If a part is not in the parts bag, check to see if it has been pre-attached. If
a part is missing, call totFfree 1-877-992-5999.
1/2" Nylon Jamnut (78)
M12 Nylon kocknut (72)
M4 x 16ram
Screw (103)
M10 Nylon Locknut (71)
M8 Flange Nut (47)
M8 Nylon Locknut (70)
M6 x 16ram M6 x 13ram
Screw (11) Bolt (105)
f
k
3/8"x 38mm Tension
Screw (108)
/M6 x 45mm Screw (98) _
M10 x 58ram Button Screw (85)
M6 Nylon
Locknut (69)
M10 x 25mm
Screw (100)
,M10 Thick Washer (75) (_-_
'L/
M10 Lock
M8 Washer (76) Washer (74)
M12 x 62mm Button Bolt (80)
M10 x 63ram Button Bolt (82) II J
v
/ M10 X 65ram Button Bolt (96) ]_
/ MlO X 69ram B°lt (93t_
MIO x 72ram Bolt (87)
M10 x 58ram Screw (94) L_
I
M10 Washer (73)
M10 x 66ram Carriage Bolt (89)
1/2" x 66ram Carriage Bolt (79)
M10 x 70ram Carriage Bolt (88)
M10 x 91ram Bolt (92)
M12 x 58ram Button Bolt (81) I
M10 x 53ram Carriage Bolt (9
M10 x 103ram Bolt (86)
M10 x 108ram Button Bolt (90)
M8 x 114mm Axle (102)
M10 x 152mm Bolt (83)
