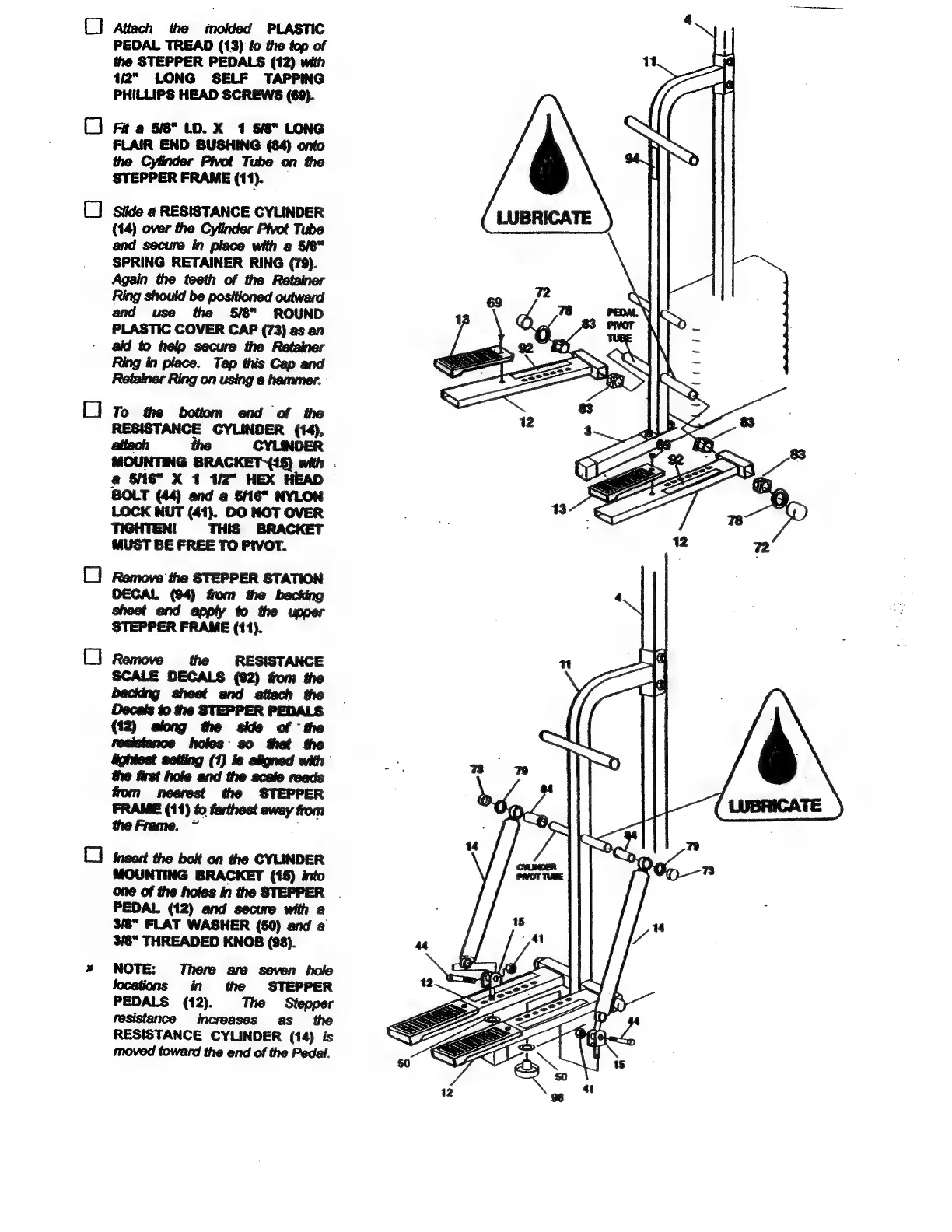

СО
Attach
the
molded
PLASTIC
PEDAL
TREAD
(13)
fo
the
top
of
the
STEPPER
PEDALS
(12)
with
12"
LONG
SELF
‘TAPPING
PHILLIPS
HEAD
SCREWS
(69).
C]
Fit
a
58"
LD.
Х
1
5/8"
LONG
FLAIR
END
BUSHING
(84)
onto
the
Cylinder
Pivot
Tube
on
the
STEPPER
FRAME
(11).
(0
Side
а
RESISTANCE
CYLINDER
|
(14)
over
the
Cylinder
Pivot
Tube
LUBRICATE
and
secure
in
place
with
a
5/8"
SPRING
RETAINER
RING
(79).
Again
the
teeth
of
the
Retainer
Ring
should
be
positioned
outward
and
use
the
5/8"
ROUND
PLASTIC
COVER
CAP
(73)
as an
aid
to
help
secure
the
Retainer
Ring
in
place.
Tap
this
Cap
and
Retainer
Ring
on
using
a
hammer.
:
[]
To
the
bottom
end
of
the
RESISTANCE
CYLINDER
(14),
attach
the
CYLINDER
MOUNTING
BRACKET-(15)
with
.
a
516“
X
1
1/2"
HEX
HEAD
|
BOLT
(44)
and
a
5/16”
NYLON
LOCK
NUT
(41).
DO
NOT
OVER
TIGHTEN!
THIS
BRACKET
MUST
BE
FREE
TO
PIVOT.
ttre
[
Remove
the
STEPPER STATION
DECAL
(94)
from
the
backing
sheet
and
apply
to
the
STEPPER
FRAME
(11).
Remove
Ше
RESISTANCE
SCALE
DECALS
(92)
fom
the
backing
sheet
and
attach
the
Decals
to
the
STEPPER
PEDALS
(12)
along
the
side
of
the
FRAME
(11)
to
farthest
away
from
the
Frame.
-
(3
вен
the
boit
on
the
CYLINDER
MOUNTING
BRACKET
(15)
into
one
of
the
holes
in
the
STEPPER
|
PEDAL
(12)
and
secure
with
а
3/8"
FLAT
WASHER
(50)
and
a
3/8"
THREADED
KNOB
(98).
»
NOTE:
There
are
seven
hole
locations
in
the
STEPPER
PEDALS
(12).
The
Stepper
resistance
increases
аз
the
RESISTANCE
CYLINDER
(14)
is
moved
toward
the end
of
the
Pedal.
