Weider PRO 4300 - Cable Assembly Guide

15

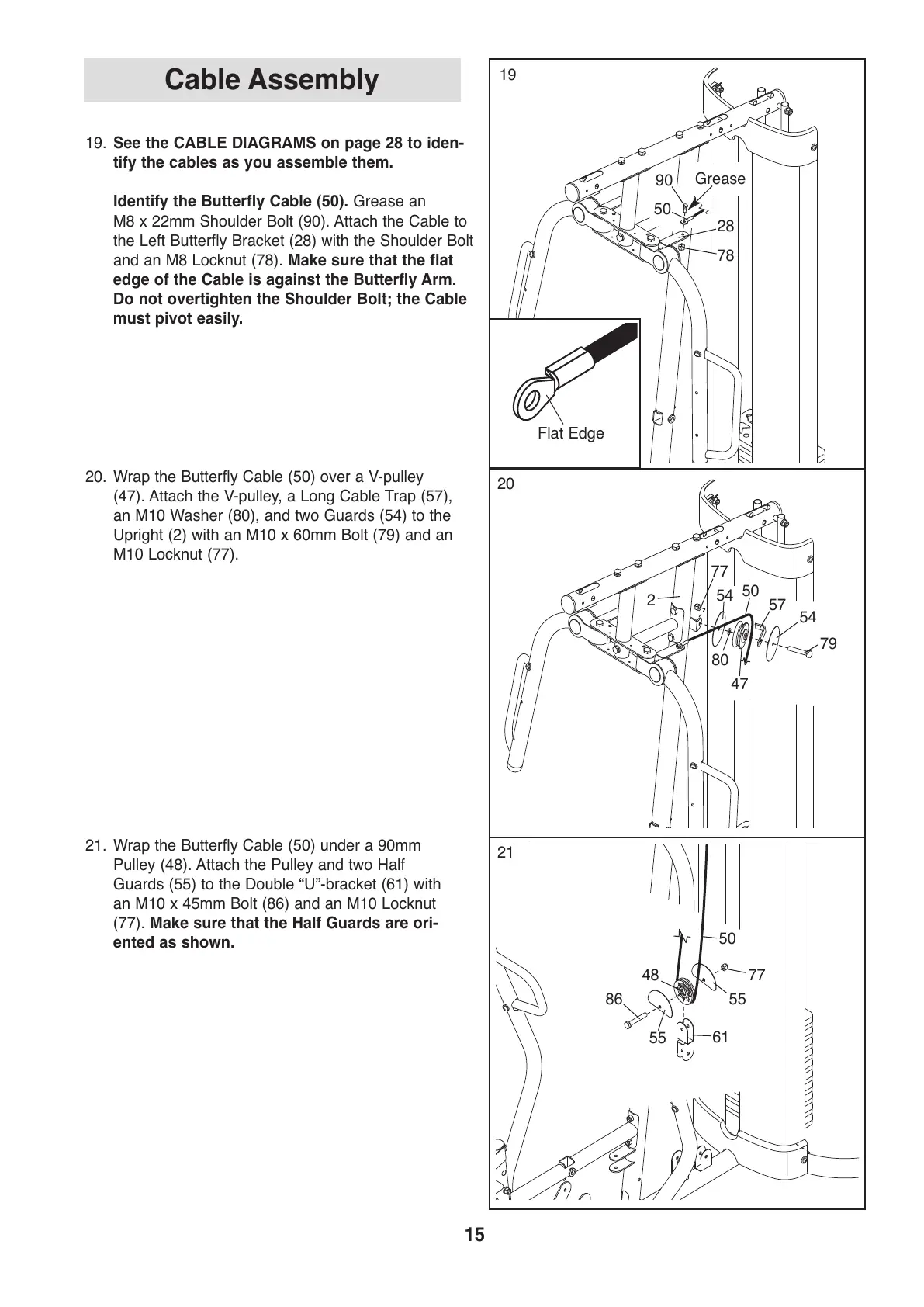

19. See the CABLE DIAGRAMS on page 28 to iden-
t
ify the cables as you assemble them.
Identify the Butterfly Cable (50). Grease an
M8 x 22mm Shoulder Bolt (90). Attach the Cable to
t
he Left Butterfly Bracket (28) with the Shoulder Bolt
and an M8 Locknut (78). Make sure that the flat
edge of the Cable is against the Butterfly Arm.
Do not overtighten the Shoulder Bolt; the Cable
must pivot easily.
20. Wrap the Butterfly Cable (50) over a V-pulley
(47). Attach the V-pulley, a Long Cable Trap (57),
an M10 Washer (80), and two Guards (54) to the
Upright (2) with an M10 x 60mm Bolt (79) and an
M10 Locknut (77).
21. Wrap the Butterfly Cable (50) under a 90mm
Pulley (48). Attach the Pulley and two Half
Guards (55) to the Double “U”-bracket (61) with
an M10 x 45mm Bolt (86) and an M10 Locknut
(77). Make sure that the Half Guards are ori-
ented as shown.
1
9
20
54
50
47
2
80
54
57
79
77
50
78
90
G
rease
2
8
21
48
50
77
55
55
61
86
Cable Assembly
Flat Edge
