10

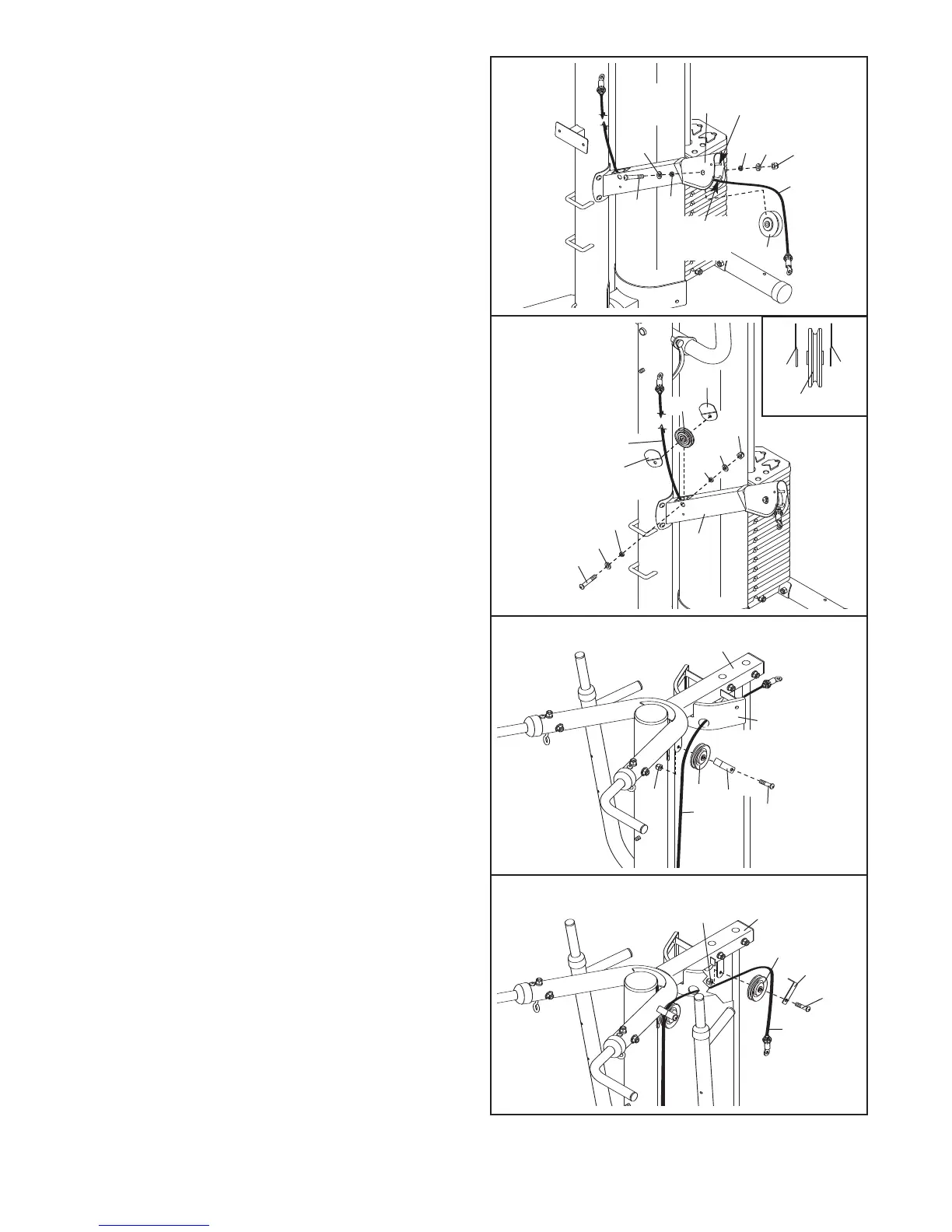

13. Attach a 2 3/4" Pulley (23) to the left Press Arm
(8) with an M10 x 53mm Button Bolt (61), two
M10 Washers (71), two 5mm Spacers (25), two
Finger Guards (27), and an M10 Nylon Locknut
(73).
See the inset drawing. Orient the Finger
Guards and Pulley as shown. Make sure the
Press Arm Cable (30) is in the groove of the
Pulley.
12. Attach a “V”-pulley (22) to a Swivel Arm (16) with
an M10 x 64mm Button Bolt (75), two M10
W
ashers (71), two 5mm Spacers (25), and an
M10 Nylon Locknut (73).
Make sure the Press
A
rm Cable (30) is routed under the indicated
welded rods.
12
13
30
25
25
75
1
6
71
71
Welded
Rod
Welded
Rod
7
3
22
30
27
27
25
25
8
23
73
71
71
61
27
27
23
14. Wrap the Press Arm Cable (30) over a 3 1/2"
Pulley (24) and route the Cable through the Top
Cover (15) as shown.
Attach the 3 1/2" Pulley (24) and a Cable Trap
(28) to the Top Frame (4) with an M10 x 45mm
Bolt (65) and an M10 Nylon Locknut (73).
Make
sure the Cable Trap is oriented to hold the
Press Arm Cable (30) in the groove of the
Pulley.
14
28
24
30
73
65
15
4
15. Wrap the Press Arm Cable (30) over a 3 1/2"
Pulley (24).
Attach the Pulley and a Cable
T
rap
(28) to the Top Frame (4) with an M10 x 45mm
Bolt (65) and an M10 Nylon Locknut (73). Make
sure the Cable T
rap is oriented to hold the
Cable in the groove of the Pulley
.
15
65
30
4
28
24
73
