11

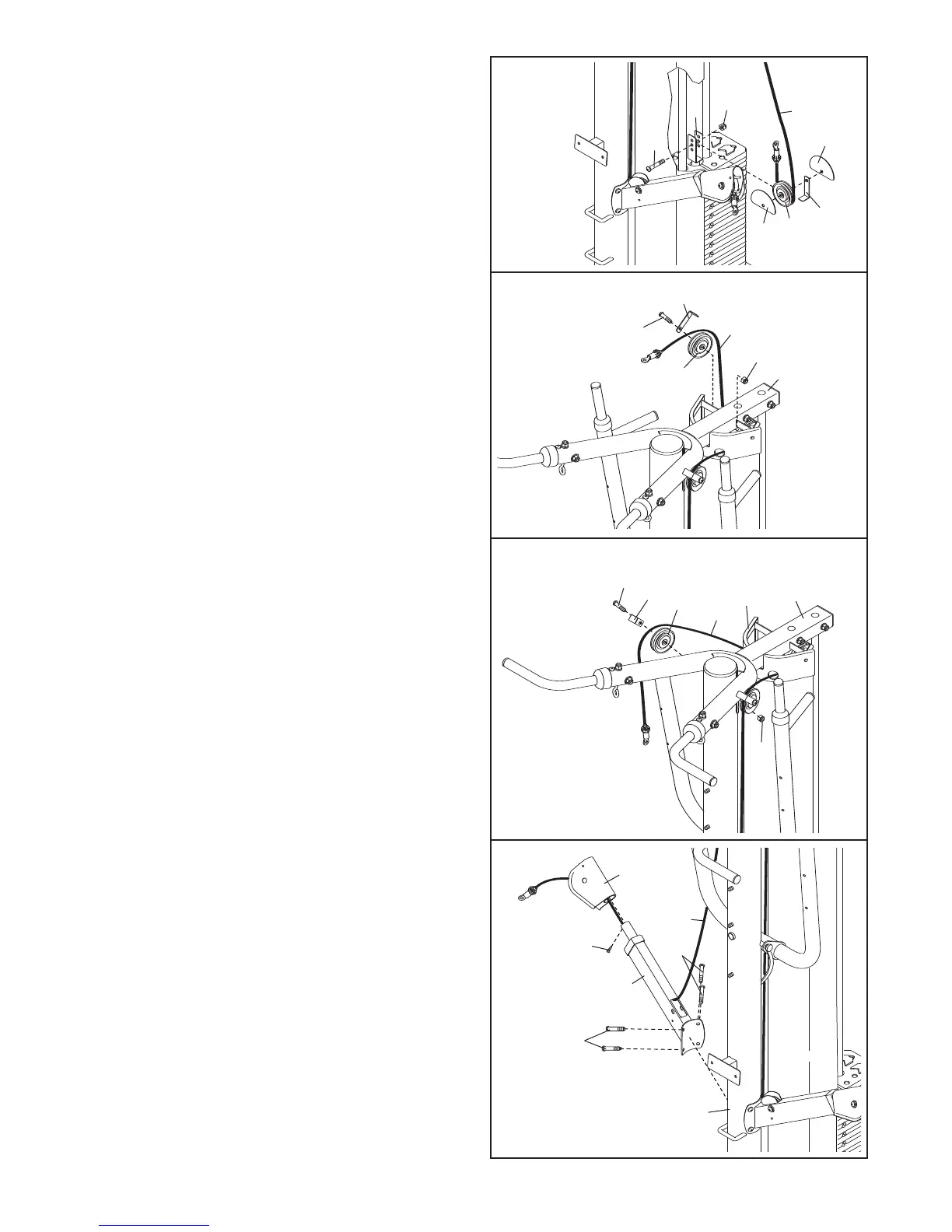

16. Wrap the Press Arm Cable (30) under a 3 1/2"
Pulley (24). Attach the Pulley, a Cable Trap (28),
a
nd two Half Finger Guards (26) to the Weight
Tube (11) with an M10 x 48mm Bolt (62) and an
M
10 Nylon Locknut (73) at the indicated hole.
Make sure the Finger Guards are oriented as
shown and are on the outside of the Weight
Tube. Make sure the Cable Trap is oriented to
hold the Cable in the groove of the Pulley.
16
30
26
28
73
11
62
26
2
4
17. Wrap the Press Arm Cable (30) over a 3 1/2"
Pulley (24). Attach the Pulley and a Cable Trap
(28) to the Top Frame (4) with an M10 x 45mm
Bolt (65) and an M10 Nylon Locknut (73). Make
sure the Cable Trap is oriented to hold the
Cable in the groove of the Pulley.
18. Route the Press Arm Cable (30) through the Top
Cover (15).
Wrap the Press Arm Cable (30) over a 3 1/2"
Pulley (24). Attach the Pulley and a Cable Trap
(28) to the Top Frame (4) with an M10 x 45mm
Bolt (65) and an M10 Nylon Locknut (73).
Make
sure the Cable Trap is oriented to hold the
Cable in the groove of the Pulley.
18
4
73
24
30
15
28
65
17
65
73
24
4
28
30
19.
Attach the Press Arm (8) with the wire to the
Upright (3) with four M10 x 25mm Screws (58).
Remove the M4 x 5mm Screw (69) and the
Swivel
Arm (16).
Using the wire that is inserted into the Press Arm
(8), route the Press
Arm Cable (30) through the
Press
Arm as shown. Route the Cable through
the Swivel Arm (16).
Reattach the Swivel
Arm (16) to the Press
Arm
(8) with the M4 x 5mm Screw (69).
19
58
69
16
8
3
58
30
To Next Page
