7

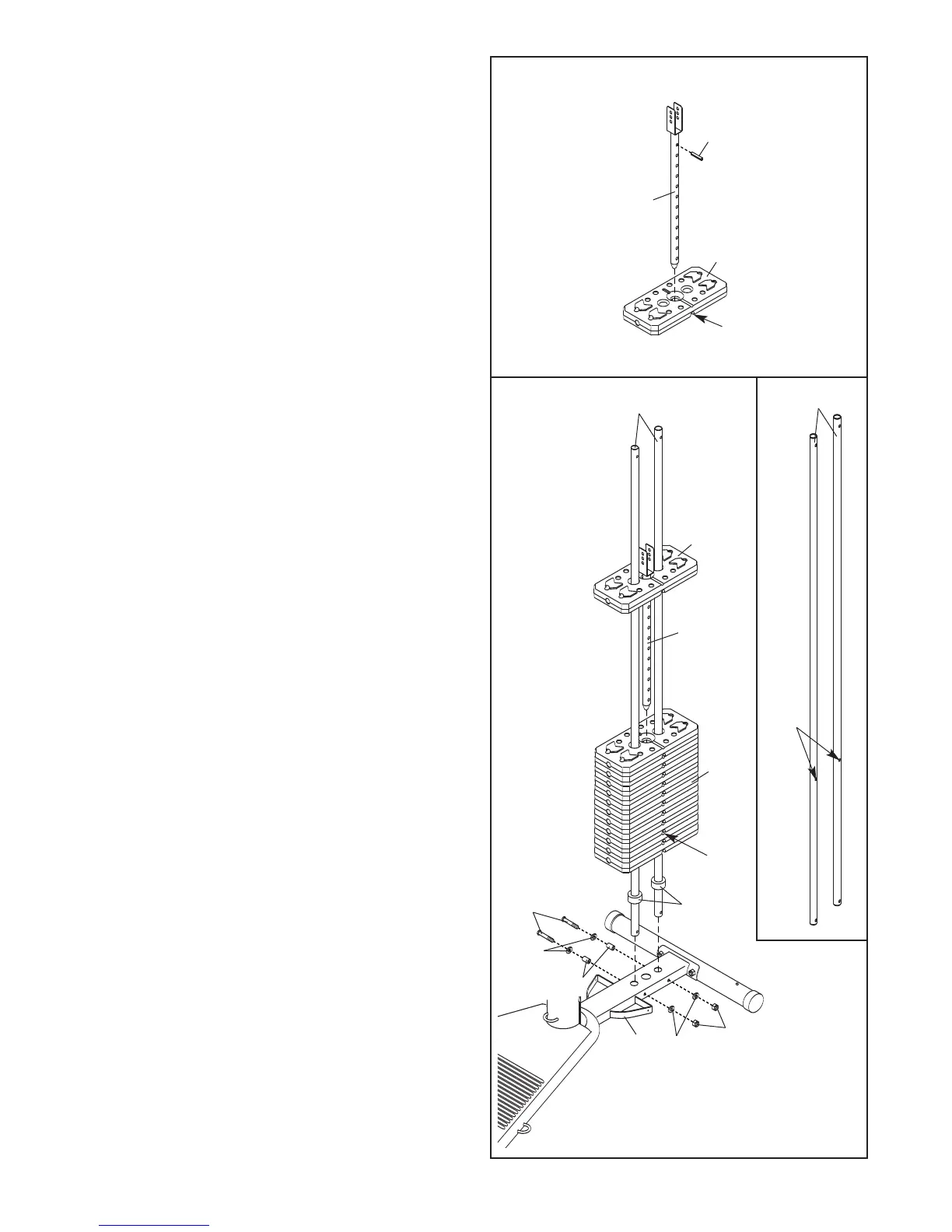

4. Insert the Weight Tube (11) into a Weight (17).
Make sure the indicated slot in the Weight is
o
riented as shown. C
enter the Roll Pin (54) into
the indicated hole in the Weight Tube. Note: The
R
oll Pin must be below the Weight.
5. Orient the two Weight Guides (10) with the indi-
cated hole closer to the bottom (see the inset
drawing).
Insert the two Weight Guides (10) into the indicat-
ed holes in the Base (1). Attach the Weight
Guides with two M8 x 115mm Bolts (76), four M8
Washers (72), two 38mm Spacers (48), and two
M8 Nylon Locknuts (74).
Slide the two Weight Bumpers (50) onto the
Weight Guides (10). Next, slide eleven Weights
(17) onto the Weight Guides one at a time.
Make
sure the indicated slot in each Weight is ori-
ented as shown.
Then, slide the Weight Tube
(11) and Weight (17) onto the Weight Guides.
5
4
11
54
17
10
17
Slot
Slot
Holes
17
50
74
72
1
48
72
76
11
10
To Next Page
