8

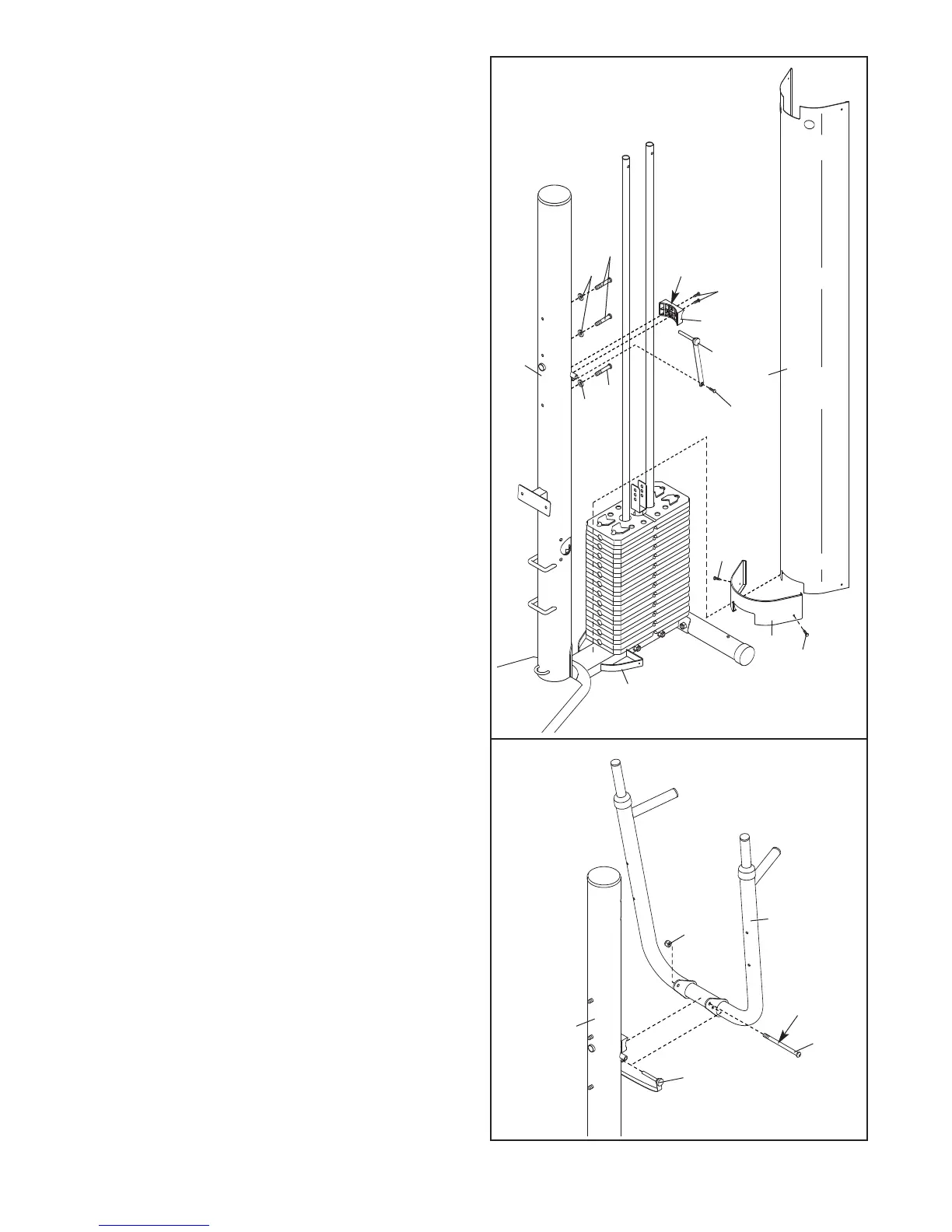

6. Slide three M6 Washers (78) onto three M6 x
127mm Screws (79) and insert the Screws into
t
he Upright (3) through the indicated holes.
O
rient the VKR Bumper (95) with the wide end on
top. Attach the VKR Bumper to the Upright (3)
with two M4 x 16mm Screws (70).
Attach the VKR Pin (101) to the Upright (3) with
an M4 x 16mm Screw (70).
Set the Shroud (13) onto the Base (1). Attach the
Bottom Cover (14) and the Shroud to the Base
with two M4 x 16mm Screws (70).
7. Grease the M10 x 168mm Button Bolt (99).
Attach the VKR Frame (82) to the Upright (3) with
the Bolt and an M10 Nylon Locknut (73). Do not
overtighten the Locknut; the VKR Frame must
be able to pivot easily.
Engage the VKR Pin (101) into the VKR Frame
(82) and the Upright (3).
6
79
3
13
14
70
1
70
78
79
78
70
Wide
End
95
7
73
82
3
Grease
99
101
70
101
To Next Page
