5
M6 Washer (42)
M10 x 180mm Bolt (54)
M10 Washer (35)
M8 Washer (36)
M10 Curved Washer (58)
M10 x 18mm
Screw (34)
M10 x 82mm Carriage Bolt (55)
M10 x 85mm Bolt (45)
M10 x 101mm Bolt (38)
M10 x 192mm Bolt (43)
M10 x 110mm Bolt (44)
ST4.2 x 10mm
Screw (17)
ST4.2 x 20mm
Screw (53)
M10 x 58mm Carriage Bolt (40)
M8 x 65mm Screw (56)
M10 Locknut (37)
M6 x 25mm
Screw (39)
M6 x 48mm Screw (41)

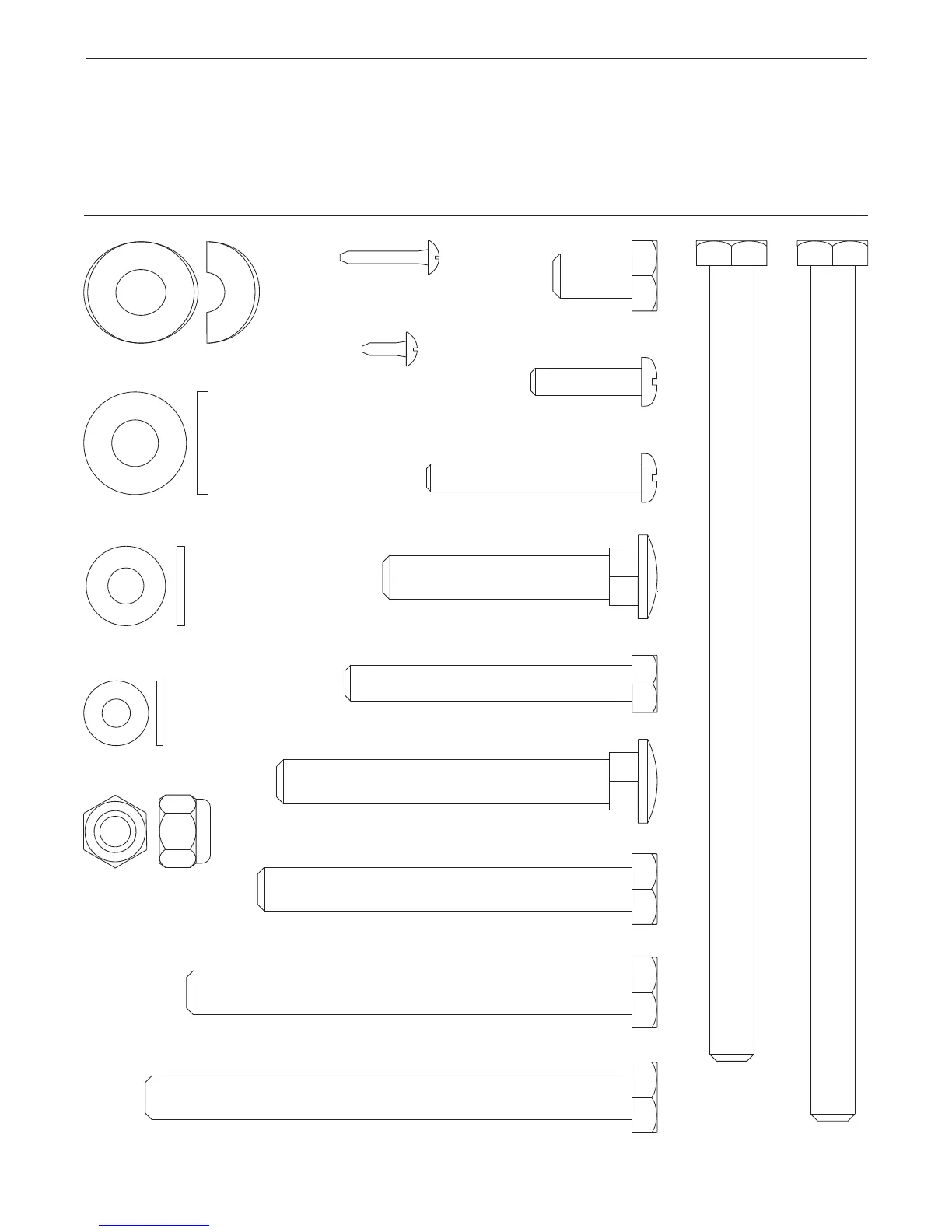

PART IDENTIFICATION CHART
R
efer to the drawings below to identify small parts used in assembly. The number in parentheses by each draw-
ing is the key number of the part, from the PART LIST near the end of this manual. IMPORTANT: If you cannot
find a part in the hardware kit, check to see if it has been preassembled. If a part is missing, please call
1-877-992-5999. To avoid damaging parts, do not use power tools for assembly.
