ASSEMBLY
1.

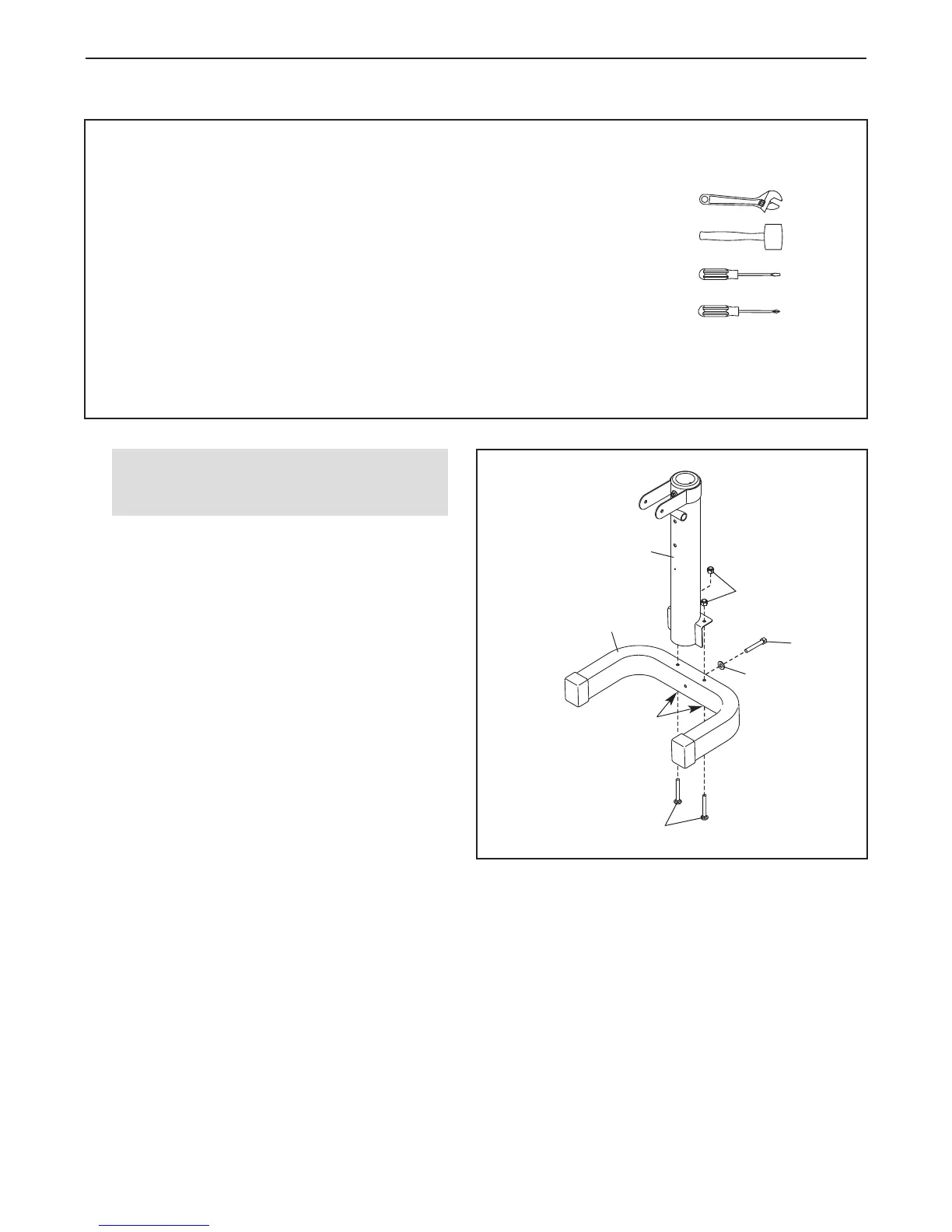

Orient the Front Stabilizer (2) so that the square
holes are facing the floor.
Attach the Front Leg (4) to the Front Stabilizer
(2) with two M10 x 82mm Carriage Bolts (55)
and two M10 Locknuts (37). Do not tighten the
Locknuts yet.
Then, tighten an M8 x 65mm Screw (56) with
an M8 Washer (36) into the Front Stabilizer (2)
and the Front Leg (4).
2
37
56
36
4
1
55
Square
Holes
To make assembly easier, read the tips at
the top of this page before your begin.
•
Assembly requires two persons.
• Because of its size and weight, assemble the
weight bench in the location where it will be
u
sed. Make sure that there is enough clear-
ance to walk around the weight bench as you
assemble it.
• Place all parts in a cleared area and remove
the packing materials. Do not dispose of the
packing materials until you complete all
assembly steps.
• To identify small parts, see page 5.
•
The following tools (not included) may be
required for assembly:
two adjustable wrenches
one rubber mallet
one standard screwdriver
one Phillips screwdriver
Assembly will be more convenient if you have a
socket set, a set of open-end or closed-end
wrenches, or a set of ratchet wrenches.
