Note: Assembly is divided into four stages: 1) frame assembly; 2) arm
assembly; 3) cable assembly; and 4) seat assembly. The hardware for
each assembly stage is packaged separately. Wait until you begin each
stage to open that parts bag.

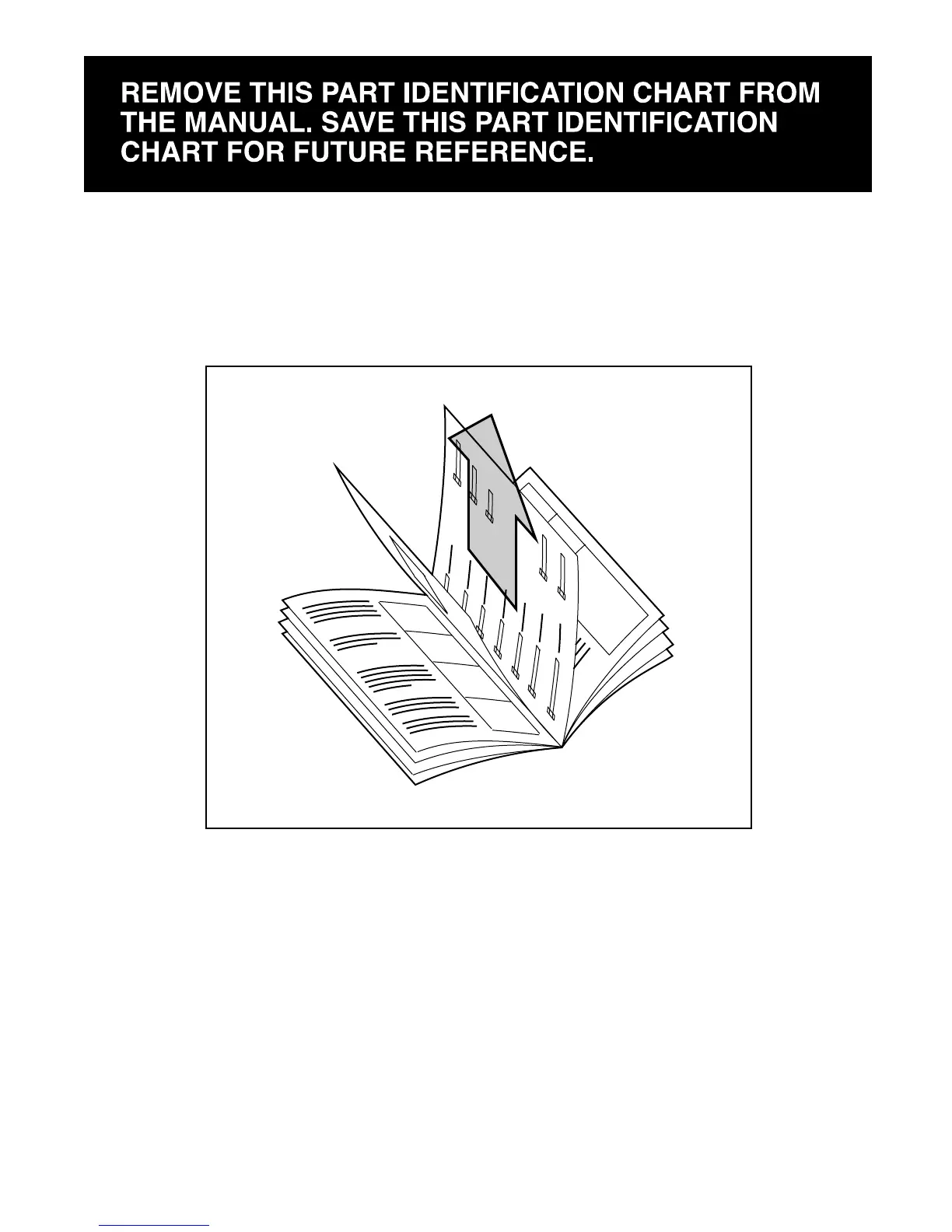

This chart is provided to help you identify the small parts used in assembly. The number in parenthesis below
each part refers to the key number of the part from the PART LIST in the center of this manual. Important:
Some parts may have been pre-assembled for shipping purposes. If you cannot find a part in the parts
bags, check to see if it has been pre-assembled.
