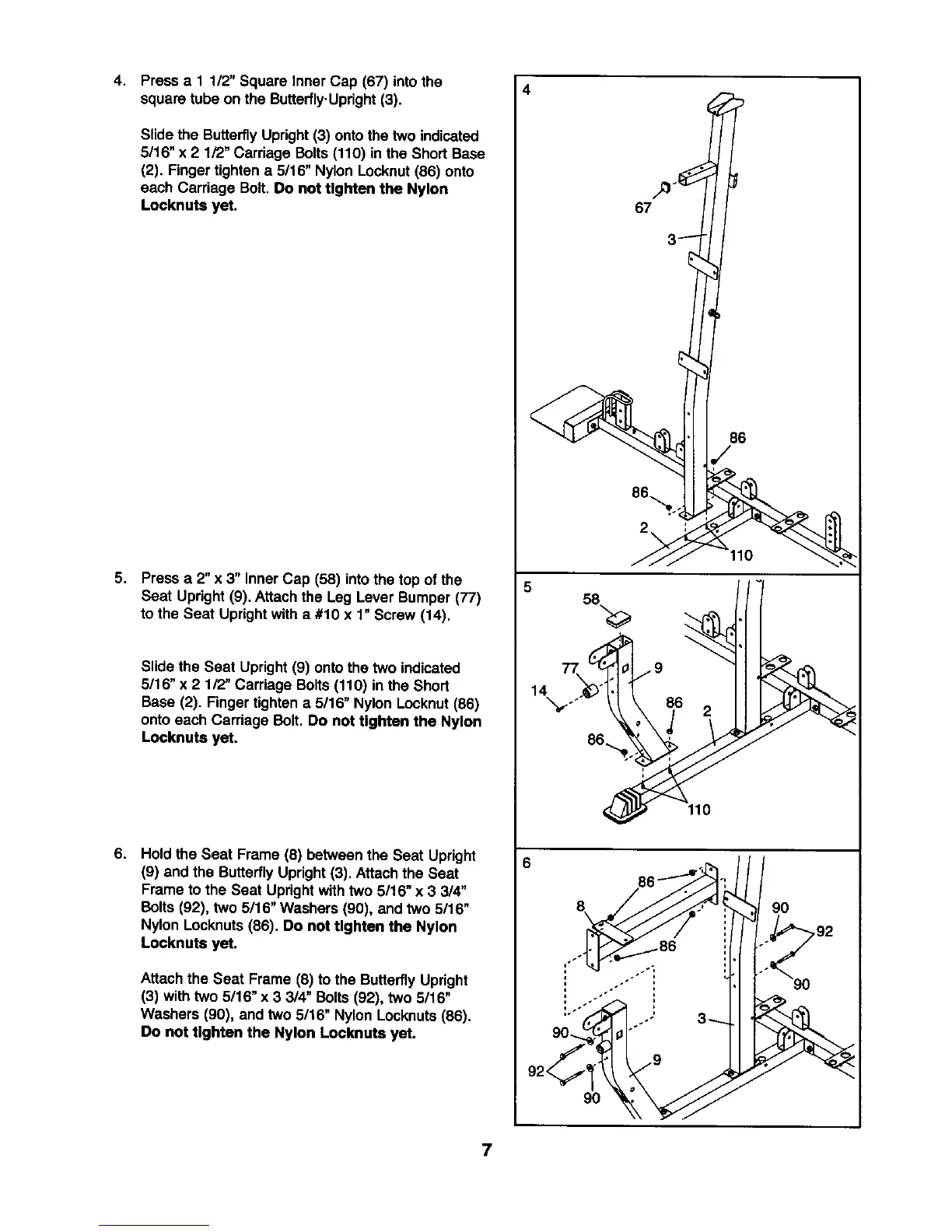

4.
Press a 1 1/2" Square Inner Cap (67) into the
square tube on the Butterfly.Upright(3).
Slide the ButterflyUpright(3) ontothe two indicated
5/16" x 2 1/2"Carriage Bolts(110) in the Short Base
(2). Fingertighten a 5/16" Nylon Locknut(86) onto
each Carriage Bolt,Do not tighten the Nylon
Locknuta yet,
5. Press a 2" x 3" Inner Cap (58) into the top of the
Seat Upright(9). Attachthe Leg Lever Bumper (77)
to the Seat Uprightwith a #10 x 1" Screw (14).
Slidethe Seat Upright(9) onto the two indicated
5/16" x 2 1/2" Carriage Bolts(110) in the Short
Base (2), Fingertightena 5/16" Nylon Locknut(86)
ontoeach Carriage Bolt. Do not tighten the Nylon
Locknuts yet.
6. Hold the Seat Frame (8) between the Seat Upright
(9) and the ButterflyUpright(3). Attach the Seat
Frame tothe Seat Uprightwith two 5/16" x 3 314"
Bolts (92), two 5/16" Washers (90), and two 5/16"
Nylon Locknuts(86). Do not tighten the Nylon
Locknuts yet.
Attach the Seat Frame (8) to the ButterflyUpright
(3) with two 5/16" x 3 3/4" Bolts(92), two 5/16"
Washers (90), and two 5/16" Nylon Locknuts(86).
Do not tighten the Nylon Locknute yet.
67
86
,/
86_
5
58
/909_
7
