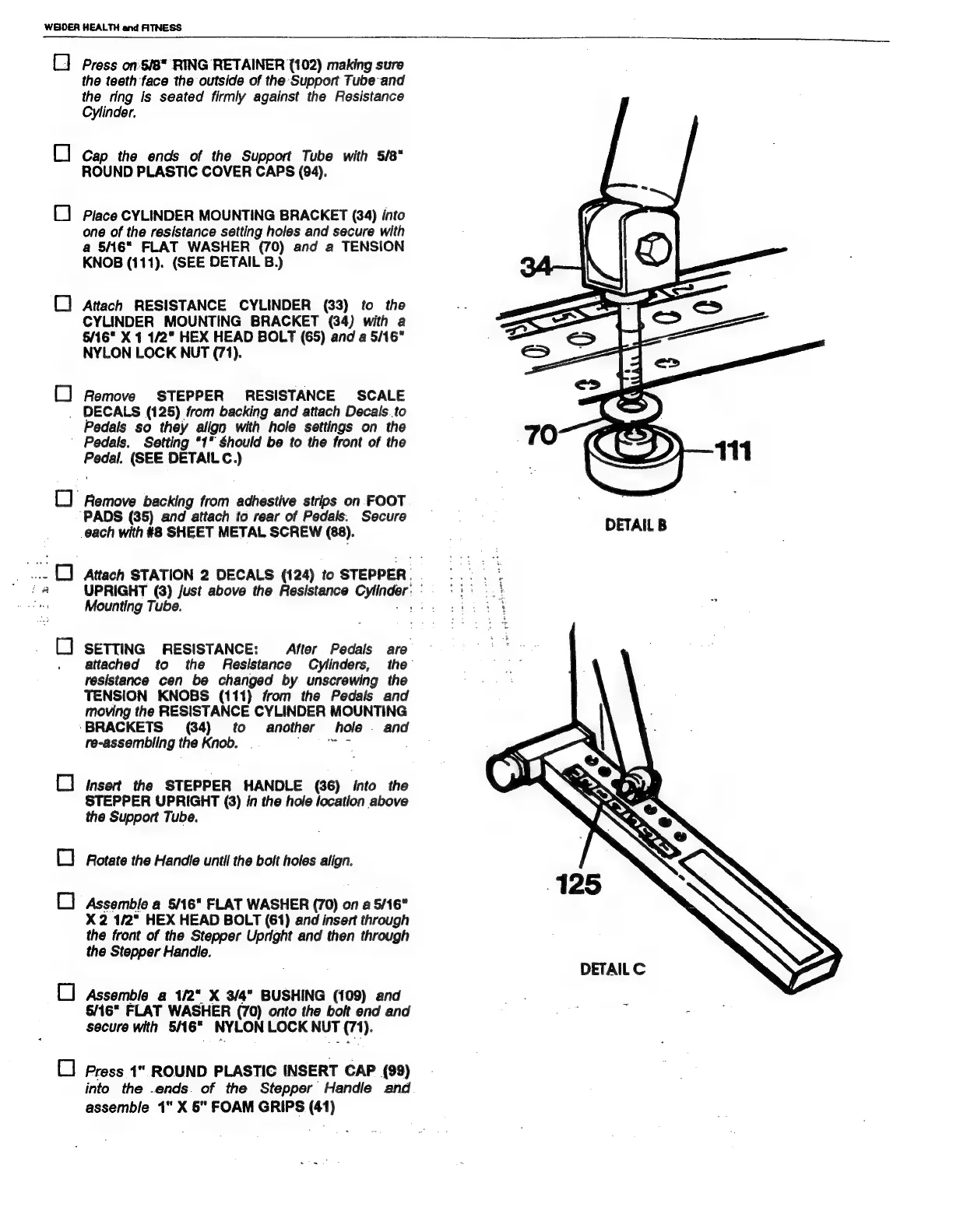

Press on:5/8" RING RETAINER (102) making sure
the teeth face the outside of the Support Tube and
the ring is seated firmly against the Resistance
Cylinder.
Cap the ends of the Support Tube with 5/8"
ROUND PLASTIC COVER CAPS (94).
Place CYLINDER MOUNTING BRACKET (34) into
one of the resistance setting holes and secure with
a 5/6" FLAT WASHER (70) and a TENSION
KNOB (111). (SEE DETAIL B.)
Attach RESISTANCE CYLINDER (33) to the
CYLINDER MOUNTING BRACKET (34) with a
§/16" X 1 1/2" HEX HEAD BOLT (65) and a 5/16"
NYLON LOCK NUT (71).
Remove STEPPER RESISTANCE SCALE
. DECALS (125) from backing and attach Decals to
Pedals so they align with hole settings on the
` Pedals. Setting "1" $hould be to the front of the
Pedal. (SEE DETAIL C.)
` Remove backing from adhestive strips on FOOT
PADS (35) and attach to rear of Pedals. Secure
each with #8 SHEET METAL SCREW (88).
Attach STATION 2 DECALS (124) to STEPPER `
UPRIGHT (3) just above the Resistance Cylinder: :
Mounting Tube. жээ
SETTING RESISTANCE: After Pedals are
attached to the Resistance Cylinders, the
resistance cen be changed by unscrewing the
TENSION KNOBS (111) from the Pedals and
moving the RESISTANCE CYLINDER MOUNTING
‘BRACKETS (34) to another hole . and
re-assembling the Knob. .
Insert the STEPPER HANDLE (36) nto the
STEPPER UPRIGHT (3) ín the hole location above
the Support Tube.
Rotate the Handle until the bolt holes alígn.
Assemble а 5/16" FLAT WASHER (70) on a 5/16"
X2 1/2" HEX HEAD BOLT (61) and insert through
the front of the Stepper Upright and then through
the Stepper Handle.
Assemble a 1/2" X 3/4" BUSHING (109) and
6/16" FLAT WASHER (70) onto the bolt end and
secure with 5/46" NYLON LOCK NUT (71).
Press 1" ROUND PLASTIC INSERT CAP {99)
into the .ends. of the Stepper Handle and
assemble 1" X 5" FOAM GRIPS (41)
