WEIDER
HEALTH
and
FITNESS

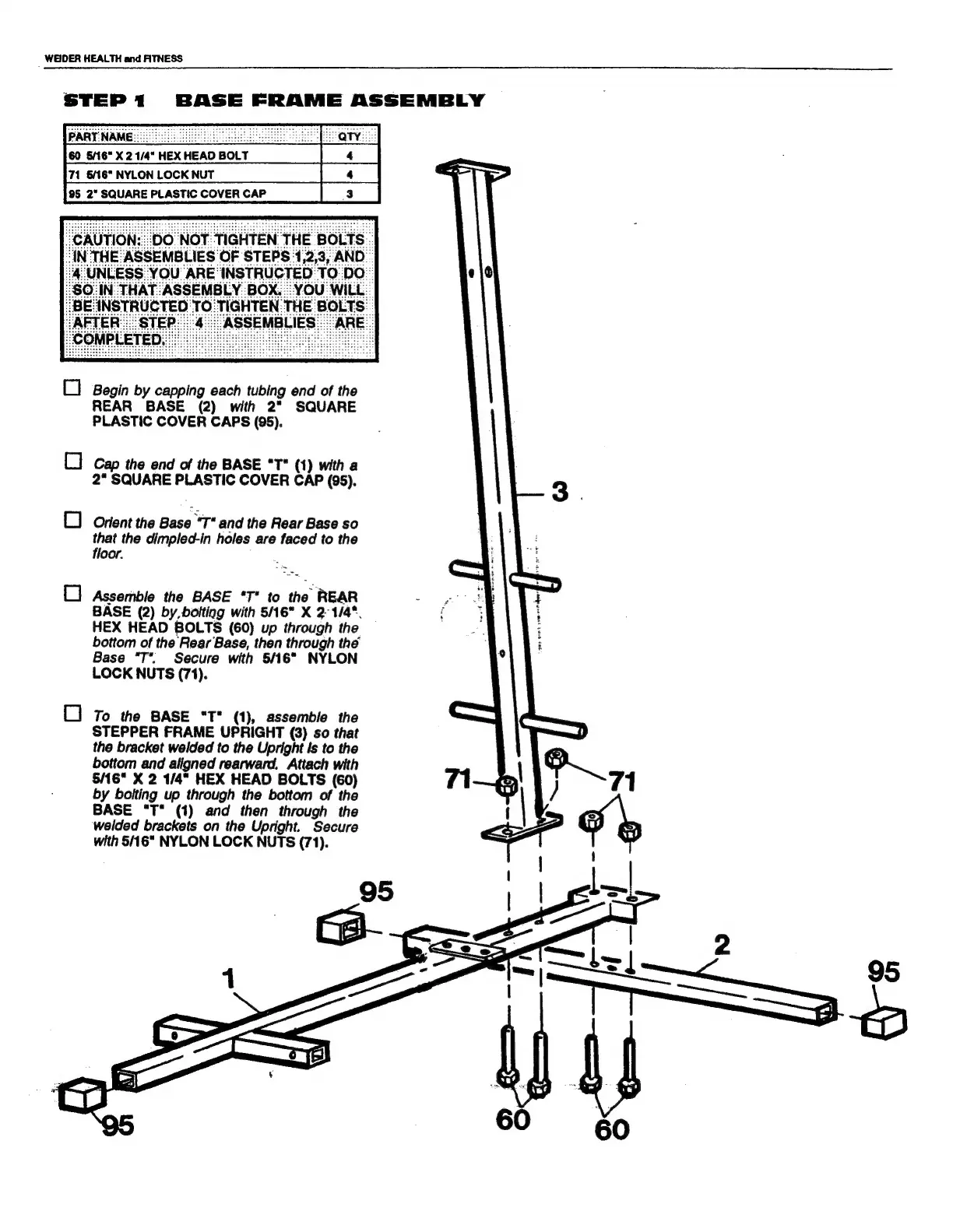

STEP
1
BASE
FRAME
ASSEMBLY
60
5/16"
X
2
1/4"
HEX
HEAD
BOLT
|
4
|
71
8/16"
NYLON
LOCK
NUT
|
«4
|
95
2"
SQUARE
PLASTIC
COVER
CAP
|
3
|
Cl
Begin
by
capping
each
tubing
end
of
the
REAR
BASE
(2)
with
2"
SQUARE
PLASTIC
COVER
CAPS
(95).
L]
сар
the
end
of
the
BASE
"Т"
(1)
with
a
2"
SQUARE
PLASTIC
COVER
CAP
(95).
C]
Orient
the
Base
*T*
and
the
Rear
Base
so
that
the
dimpled-in
holes
are
faced
to
the
floor.
L]
Assemble
the
BASE
“T"
to
the
REAR
BASE
(2)
by,boltíog
with
5/16"
X
2-1/4*.
HEX
HEAD
BOLTS
(60)
up
through
the
bottom
of
the
Rear
Base,
then
through
the
Base
“Т.
Secure
with
5/16"
NYLON
LOCK
NUTS
(71).
C
то
the
BASE
"T"
(1),
assemble
the
STEPPER
FRAME
UPRIGHT
(3)
so
that
the
bracket
welded
to
the
Upright
Is
to
the
bottom
and
aligned
rearward.
Attach
with
5/16*
X
2
1⁄4"
HEX
HEAD
BOLTS
(60)
by
bolting
up
through
the
bottom
of
the
BASE
'T*
(1)
and
then
through
the
welded
brackets
on
the
Upright.
Secure
with
5/16"
NYLON
LOCK
NUTS
(71).
