WEIDER
HEALTH
and
FITNESS

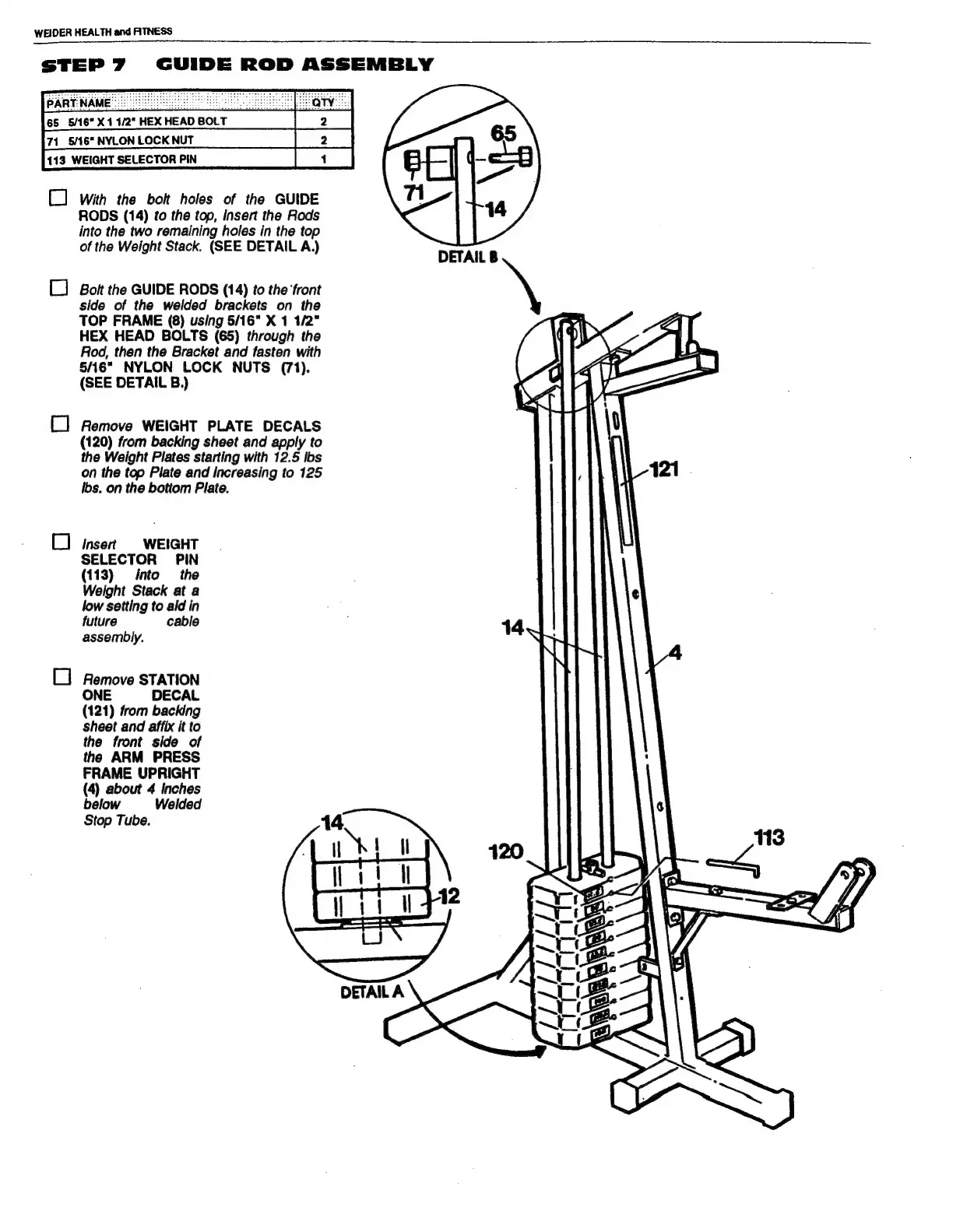

STEP
7
GUIDE
ROD
ASSEMBLY
[I]
With
the
Бой
holes
of
the
GUIDE
RODS
(14)
to
the
top,
insert
the
Rods
into
the
two
remaining
holes
in
the
top
of
the
Weight
Stack.
(SEE
DETAIL
A.)
C]
Bol
the
GUIDE
RODS
(14)
to
the
front
side
of
the
welded
brackets
on
the
TOP
FRAME
(8)
using
5/16"
X
1
1/2"
HEX
HEAD
BOLTS
(65)
through
the
Rod,
then
the
Bracket
and
fasten
with
5/16"
NYLON
LOCK
NUTS
(71).
(SEE
DETAIL
B.)
[C]
Remove
WEIGHT
PLATE
DECALS
(120)
from
backing
sheet
and
apply
to
the
Weight
Plates
starting
with
12.5
ibs
on
the
top
Plate
and
increasing
to
125
lbs.
on
the
bottom
Plate.
C
insert
WEIGHT
SELECTOR
PIN
(113)
into
the
Weight
Stack
at
a
low
setting
to
aid
in
future
cable
assembly.
C]
Remove
STATION
ONE
DECAL
(121)
from
backing
sheet
and
affix
it
to
the
front
side
of
the
ARM
PRESS
FRAME
UPRIGHT
(4)
about
4
inches
below
Welded
Stop
Tube.
