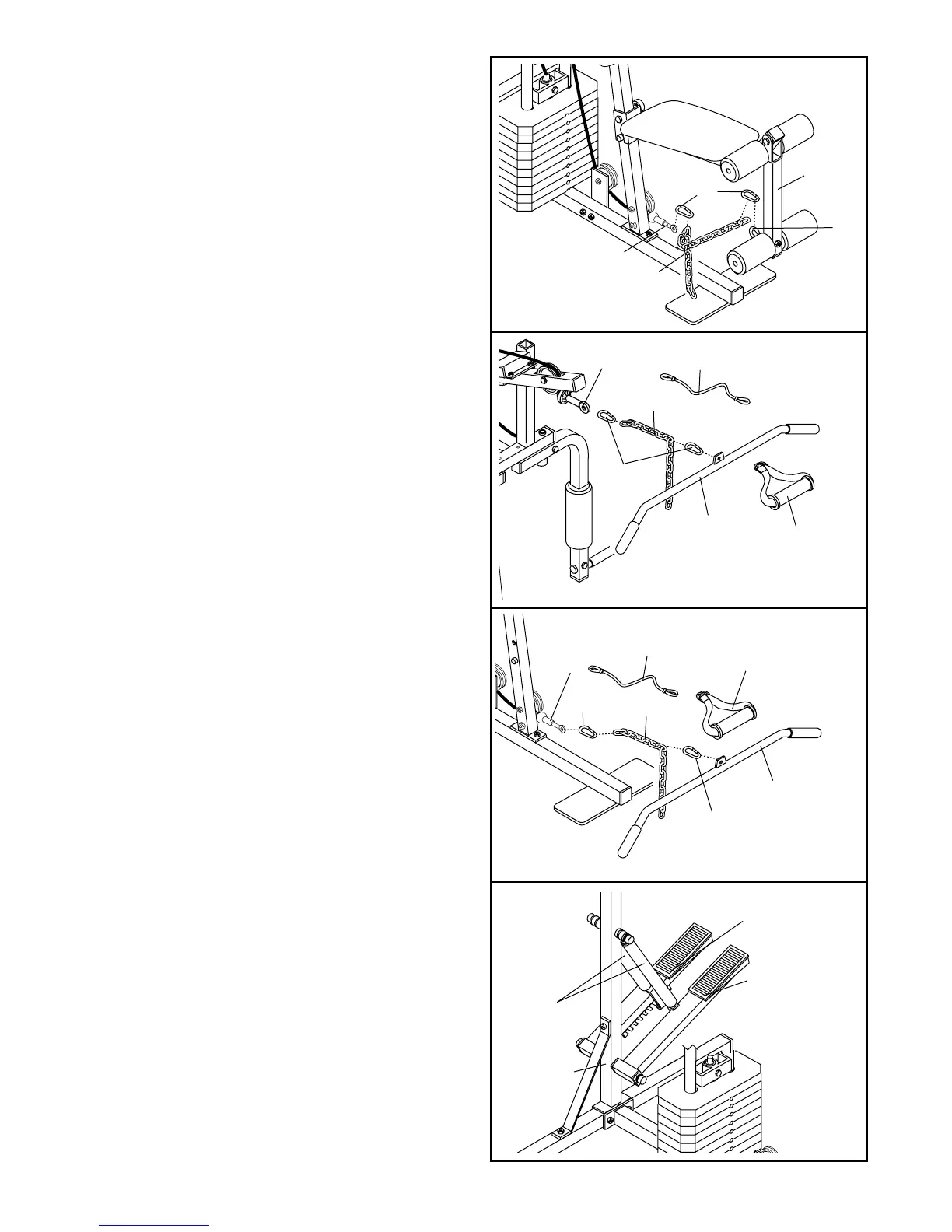

ATTACHING THE LEG LEVER TO THE LOW
PULLEY STATION
To use the Leg Lever (29), the seat must be attached
to the front upright (see ATTACHING AND REMOV-
ING THE SEAT on page 15).
Attach the Chain (84) between the 5/16” x 2” Eyebolt
(62) on the Leg Lever (29) and the Short Cable (23)
with two Cable Clips (83).
ATTACHING THE LAT BAR OR NYLON STRAP TO
THE HIGH PULLEY STATION
Attach the Lat Bar (85) to the Long Cable (66) with a
Cable Clip (83). For some exercises, the Chain (84)
and/or Nylon Rope (76) should be attached between
the Lat Bar and the Long Cable with two Cable Clips.
If the Chain is used, adjust the length of the Chain
between the Lat Bar and the Long Cable so the
Lat Bar is in the correct starting position for the
exercise to be performed.
The Nylon Strap (39) can be attached in the same way.
ATTACHING THE LAT BAR OR NYLON STRAP TO
THE LOW PULLEY STATION
Attach the Lat Bar (85) to the Short Cable (23) with a
Cable Clip (83). For some exercises, the Chain (84)
and/or Nylon Rope (76) should be attached between
the Lat Bar and the Short Cable with two Cable Clips.
If the Chain is used, adjust the length of the Chain
between the Lat Bar and the Short Cable so the
Lat Bar is in the correct starting position for the
exercise to be performed.
The Nylon Strap (39) can be attached in the same way.
CHANGING THE STEPPING RESISTANCE
To change the stepping resistance, first lift the Right
and Left Pedals (89, 90) off the hooks at the lower
ends of the Resistance Cylinders (91). Move the
hooks to different slots under the Pedals. Make sure
that the hooks are fully inserted into the slots in
the same position under both Pedals. The farther
the hooks are moved from the Rear Upright (82), the
greater the resistance will be. CAUTION: The
Resistance Cylinders become very hot during use.
Allow the Resistance Cylinders to cool before
touching them.
