17

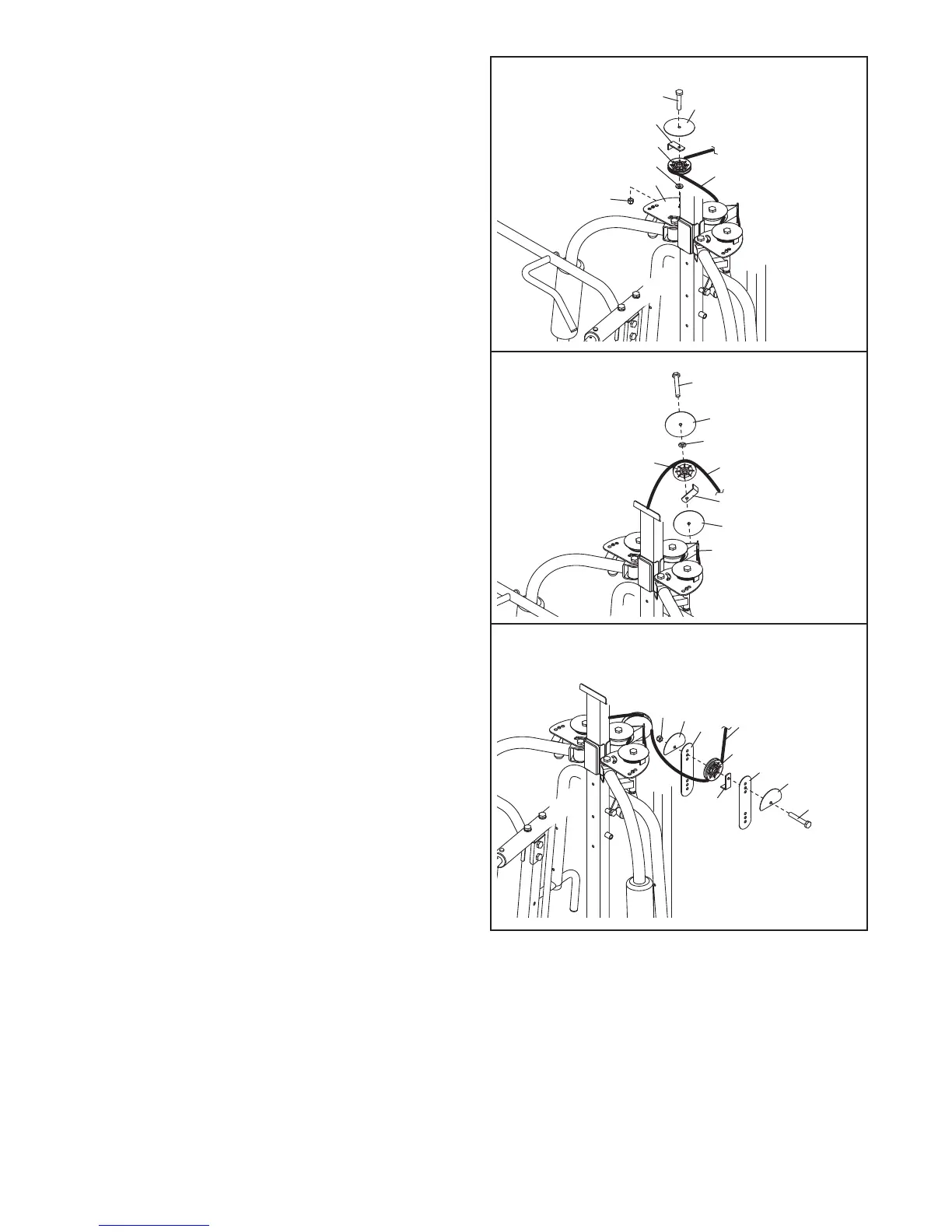

30. Wrap the Cable (66) over a Small Pulley (59).
Attach the Small Pulley, two Guards (61), a Cable
Trap (76), and an M10 Washer (96) to the Center
Frame (51) with an M10 x 45mm Bolt (104).
31. Wrap the Cable (66) under a Small Pulley (59).
Attach the Small Pulley, a Cable Trap (76), and
two Half Guard (62) to the second from the top
set of holes in the two Pulley Plates (56) with an
M10 x 50mm Bolt (111) and an M10 Nylon
Locknut (94).
Make sure the Half Guards are
oriented as shown.
30
31
59
61
104
51
61
76
66
96
94
62
56
56
62
66
59
76
111
29. Wrap the Cable (66) around a Small Pulley (59).
Attach the Small Pulley, a Guard (61), a Cable
T
rap (76), and an M10 Washer (96) to the right
Adjustable Pulley Plate (67) with an M10 x 50mm
B
olt (111) and an M10 Nylon Locknut (94).
2
9
94
9
6
67
7
6
6
6
61
5
9
1
11
To Next Page
