Weidmüller IE-SW-BL05 Series User Manual

- 11 -
Redundant Power Inputs
Both power inputs can be connected simultaneously to live AC/DC power
sources. If one power source fails, the other live source acts as a backup, and
automatically supplies all of the Ethernet Switch’s power needs.

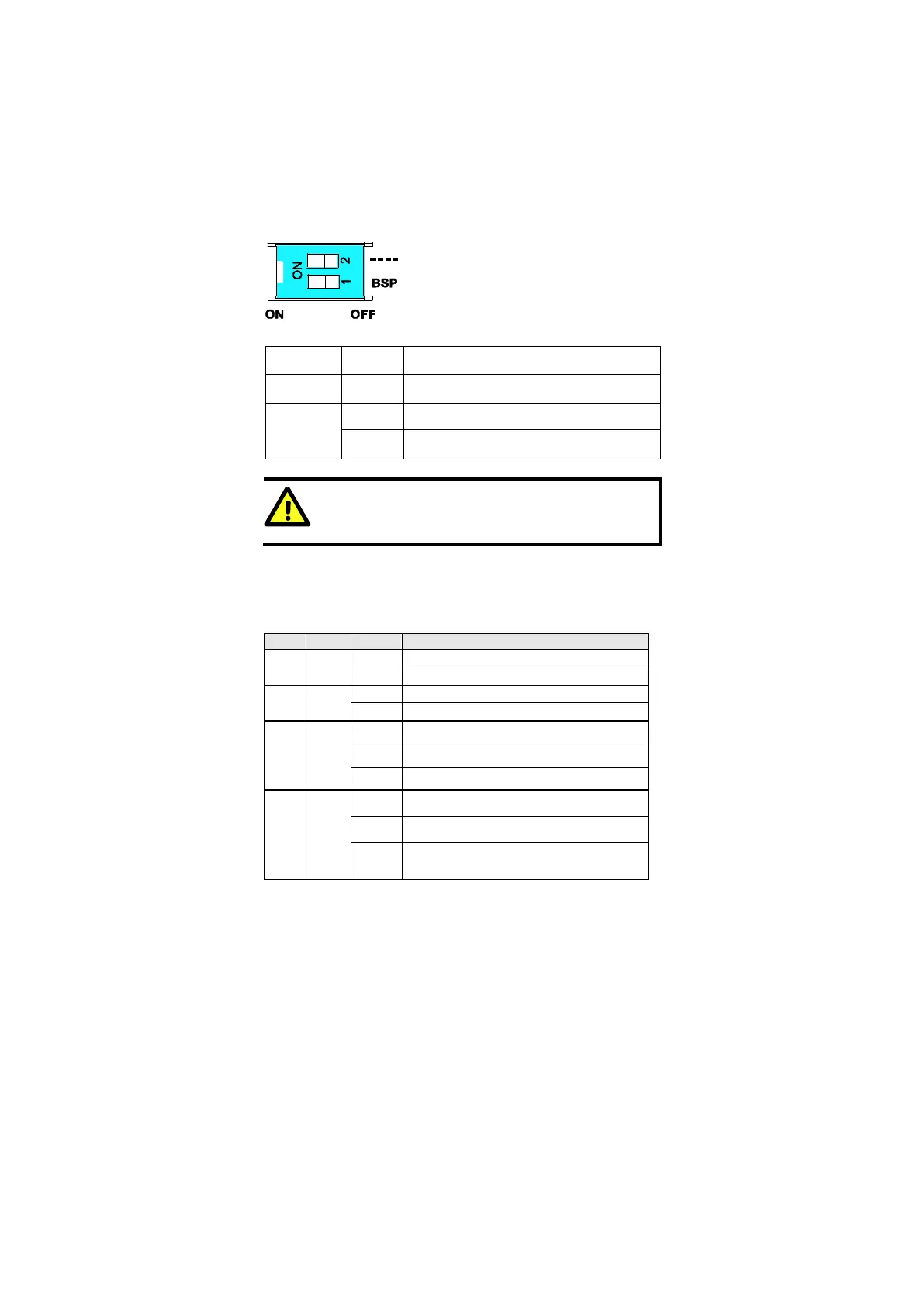

DIP Switch Settings
IE-SW-BL05/08 DIP Switches
The default setting for each DIP Switch is OFF.
The following table explains the effect of setting
the DIP Switches to the ON positions.
DIP Switch
Setting
Description
------
Serves no function (reserved for future use).
BSP (1)
ON
Enables broadcast storm protection
OFF
Disables broadcast storm protection
ATTENTION
To actively updated DIP switch settings, power off and then power
on the Ethernet Switch.
LED Indicators
The front panel of the Ethernet Switch contains several LED indicators. The
function of each LED is described in the table below.
LED
Color
State
Description
P1
AMBER
On
Power is being supplied to power input P1.
Off
Power is not being supplied to power input P1.
P2
AMBER
On
Power is being supplied to power input P2.
Off
Power is not being supplied to power input P2.
10M
Yellow
On
TP port’s 10 Mbps link is active.
Blinking
Data is being transmitted at 10 Mbps.
Off
TP Port’s 10 Mbps link is inactive
100M
GREEN
On
TP port’s 100 Mbps link is active.
Blinking
Data is being transmitted at 100 Mbps.
Off
100Base TP Port’s link is inactive.
