- 3 -

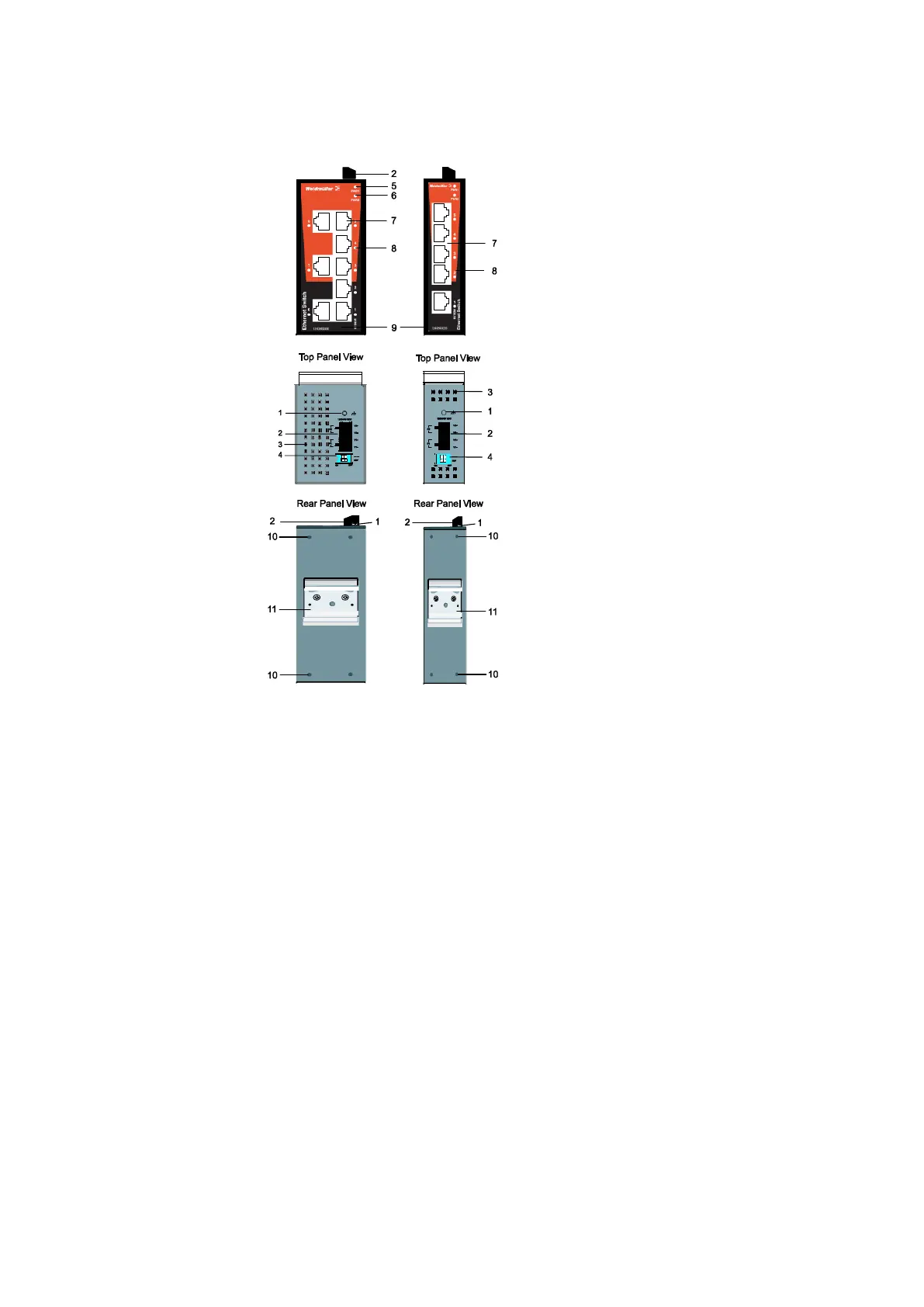

Panel Layout of

IE-SW-BL05-5TX / IE-SW-BL08-8TX

1. Grounding screw

2. Terminal block for

power input P1/P2

3. Heat dissipation

orifices

4. DIP Switches

5. Power input P1 LED

6. Power input P2 LED

7. 10/100BaseT(X) Port

8. TP port’s 10/100 Mbps

LED

9. Article Number

10. Screw hole for wall

mounting kit

11. DIN-Rail Kit

IE-SW-BL08

Front Panel View

IE-SW-BL05

Front Panel View
