- 5 -

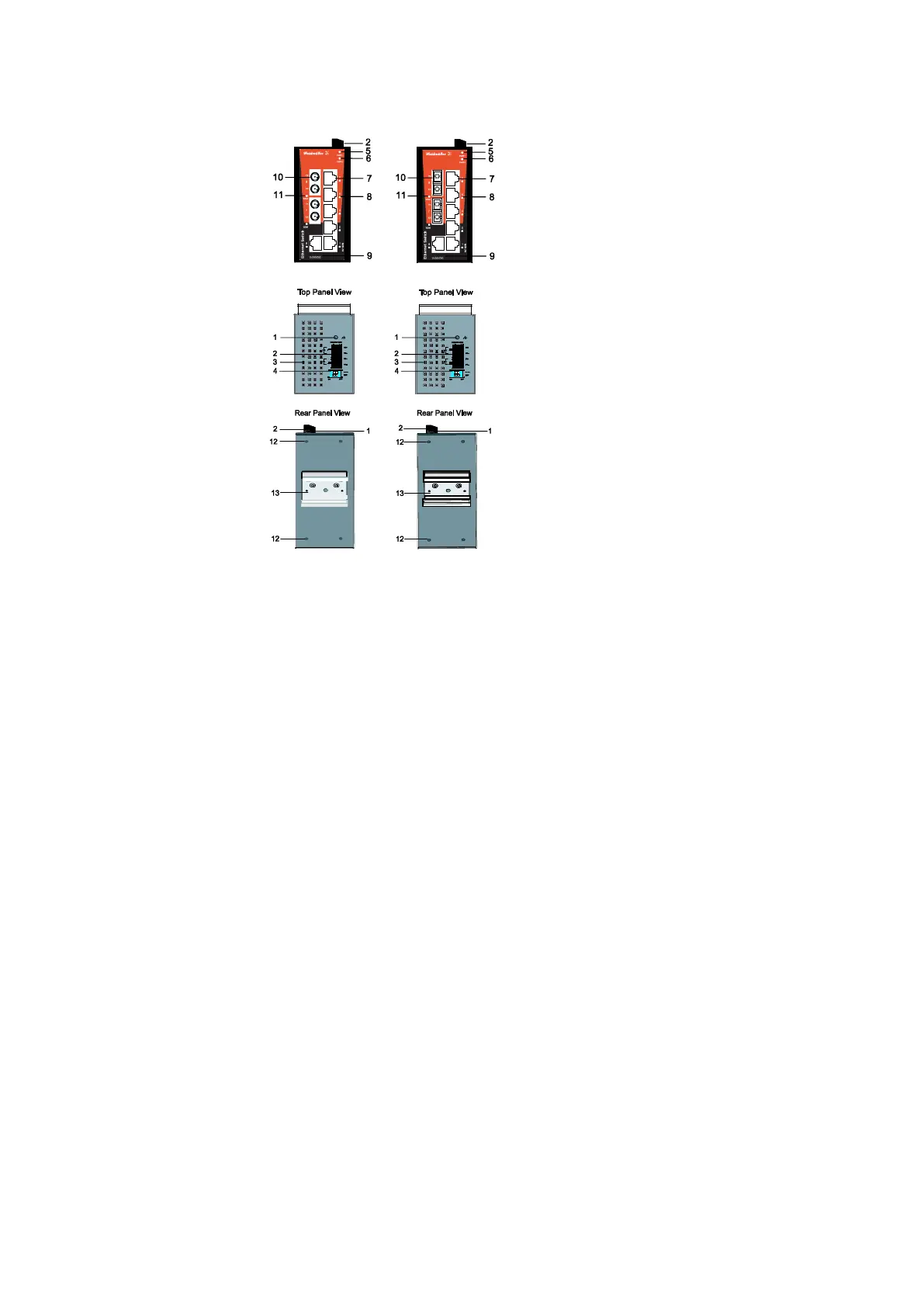

Panel Layout of

IE-SW-BL08-6TX-2SC/ST

1. Grounding screw

2. Terminal block for

power input P1/P2

3. Heat dissipation

orifices

4. DIP Switches

5. Power input P1 LED

6. Power input P2 LED

7. 10/100BaseT(X) Port

8. TP port’s 10/100 Mbps

LED

9. Article Number

10. 100BaseFX Port

11. FX port’s 100 Mbps

LED

12. Screw hole for wall

mounting kit

13. DIN-Rail Kit

IE-SW-BL08-6TX-2ST

Front Panel View

IE-SW-BL08-6TX-2SC

Front Panel View
