General Data
Transducers
=
x
Application
Transducers convert power current and voltage quantities or proccess
control inputs into proportional load independent DC current or voltage
outputs.
for measuring AC current or AC voltage,
active or reactive power,
frequency,
phase angle (ϕ ) / power factor (cos ϕ ),
DC current or DC voltage,
standard signals,
temperature
Technical Data
case details projecting case clamping to DIN mounting rail
(to DIN EN 50 022 – 35)
material of case ABS/PC black
self - extinguishing to UL rating 94 V–0
terminals screw - terminals
wire cross - section 4 mm
2
max.
enclosure code IP 40 case
IP 20 terminals
dielectric test 3.7 kV measuring circuits and power supply
to output
class of protection II
excess voltage CAT II
category
pollution level 2
climatic suitability climatic class 3 acc. to VDE/VDI 3540 sheet 2
operating temperature –10 ... +55
o
C
range
storage temperature –25 ... +65
o
C
range
relative humidity ≤ 75% annual average, non - condensing
Outputs
current output
output current I
A
load independent DC current 0 ... 20 mA
or optionally 0 ... 10 mA, 0 ... 5 mA,
4 ... 20 mA (”live zero”), –20 ... 0 ... 20 mA
(bipolar output only with wide range supply)
load range R
A
0 ... 10 V / I
AN
current limitation to approx.120% of full–scale value,
other ratings on request
voltage output
output voltage U
A
load independent DC voltage 0 ... 10 V or
optionally 2...10 V (”live zero”), –10...0... 10 V
(bipolar output only with wide range supply)
load R
A
≥ 4 kW
load error ≤ 0.1% based on 50% load change
residual ripple ≤ 1%
rms
response time approx. 500 ms
idling voltage ≤ 15 V
(Ratings do not apply completely to self - powered transducers.)
Auxiliary Supply
auxiliary voltage U
HN
230 V AC (195 ... 253 V), 48 ... 62 Hz
optional 115 V AC (98 ... 126 V), 48 .. 62 Hz
24 V DC (20 ... 72 V)
wide range supply 20 ... 100 V DC resp. 20 ... 70 V AC
90 ... 357 V DC resp. 65 ... 253 V AC
galvanic isolation between input, output and auxiliary supply circuits

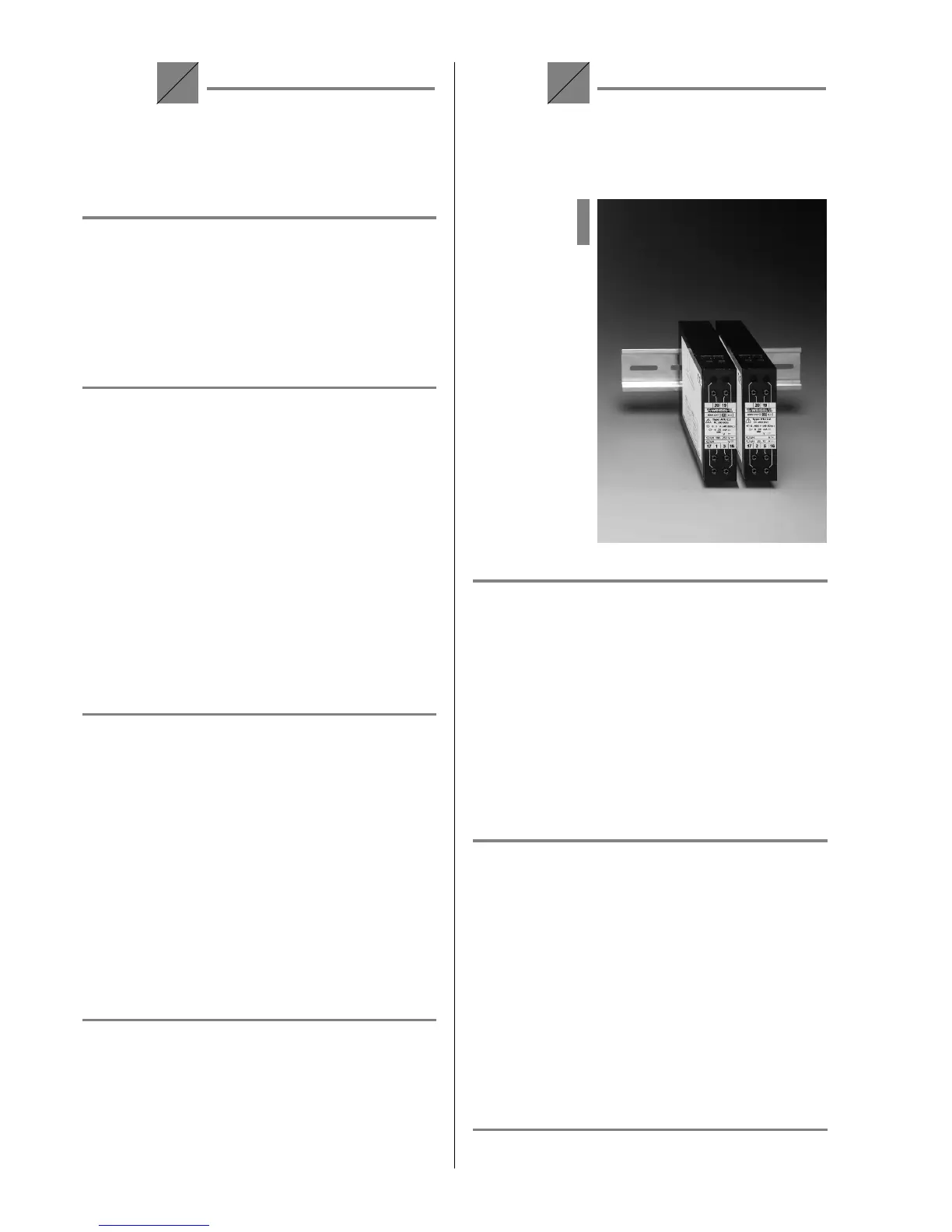

Short Form Data
Transducers for
AC Current or
AC Voltage
A1U 2.2
V1U 2.2
=
J/U
Inputs
input quantity sinusoidal AC current or
sinusoidal AC voltage
frequency range 48 ... 62 Hz or
16
2
/
3
Hz, 100 Hz, other ratings on request
power consumption ≤ 0.4 VA
operating voltage 600 V max.
measuring ranges A1U 2.2 V1U 2.2
rated current I
EN
rated voltage U
EN
in the range 0 ... 200 mA up to 5 A 0 ... 60 mV up to 600 V
(also for use on transformer)
current input voltage input
measuring range 0 ... I
EN
0 ... U
EN
modulation range 1.2 I
EN
1.2 U
EN
permissible 1.2 I
EN
continuously 1.2 U
EN
continuously
overload limit 10 I
EN
1 s max. 2 U
EN
1 s max.
Other Ratings
outputs refer to General Data
accuracy class 0.5 (±0.5% of end value)
auxiliary voltage refer to General Data
dimensions WxHxL 22.5 mm x 80 mm x 115 mm
weight approx. 0.12 kg
for detailed information refer to Data Sheet No. 061.##
prices refer to Price Sheet No. 061.##
