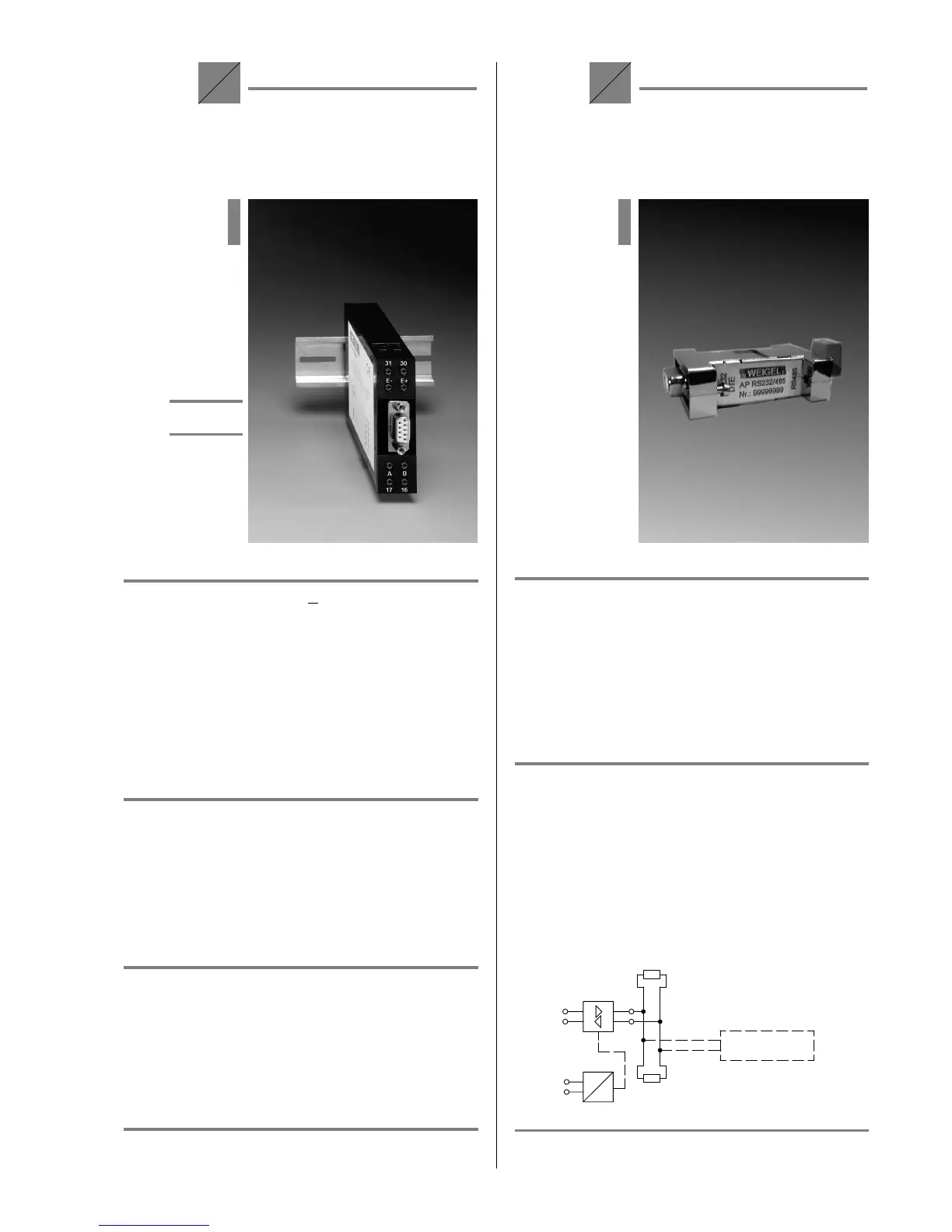

Weigel A1U 2.2 - Short Form Data: Standard Signal Interface Converter; Short Form Data: RS232-RS485 Converter

Short Form Data
Standard Signal
Interface Converter
MU-
RS232/485
=
RS232
RS485
with mP
Inputs
input quantity I
E
DC current or
U
E
DC voltage
rated input input resistance
current I
EN
20 mA 50 W
voltage U
EN
10 V / 1 V 1 MW / 100 kW
measuring range current input voltage input
0 ... I
EN
0 ... U
EN
“live zero” option
modulation range, 1.2 I
EN
1.2 U
EN
admissible
overload limit
continuously 1.2 I
EN
1.2 U
EN
1 s max. 2 I
EN
2 U
EN
Interfaces
type RS 232 (V.24) and
RS 485 (SCPI commands)
Baud- rate 19200 Baud
as an option:
switching output 8 ... 40 V DC / 10 ... 30 mA
open collector insulation voltage 1 kV
switching output for voltages up to 230 V AC/DC
MOS FET and currents up to 100 mA
insulation voltage 3 kV
Other Ratings
accuracy ±0.1% and ±1 count
(for 0 ... I
EN
resp. 0 ... U
EN
)
auxiliary voltage refer to General Data
dimensions WxHxL 22.5 mm x 80 mm x 115 mm
weight approx. 0.12 kg
for detailed information refer to Data Sheet No. 052.##
prices refer to Price Sheet No. 052.##
Short Form Data
RS232-RS485
Converter
AP-
RS232/485
RS232
RS485
Function
The converter is directly plugged to a 9- contact serial interface of a PC.
It converts the RS232 signals of the PC into standardized RS485
signals. This conversion enables to simultaneously connect several
devices by a 2 - wire junction to one interface and to inquire one after
another.
The device is protocol - transparent, i.e. the RS485 signals are trans-
lated 1:1 into the signals of the RS232 interface.
Depending on the 2 - wire junction of the RS485, a half- duplex opera-
tion only will be possible. This means, only one device may send in the
network at a time. By that a simultaneous operation of sending and
receiving will not be possible.
Ratings
case details metalized thermoplastic case
terminals SUB -D 9 contact (RS232 interface on the PC)
screw - terminals 2 contacts,
wire - cross section 4 mm
2
max.
(RS485 interface)
auxiliary supply power adapter prim. AC 230 V, ±10%, 50 Hz,
sec. DC 9 V / 250 mA
included with supply
dimensions 73 mm x 34 mm x 12 mm
weight approx. 50 g
RS 485
RS 232
120 W
120 W
MUāĆāRS232/485
~
=
U
H
for detailed information refer to Data Sheet No. 054.##
prices refer to Price Sheet No. 054.##
