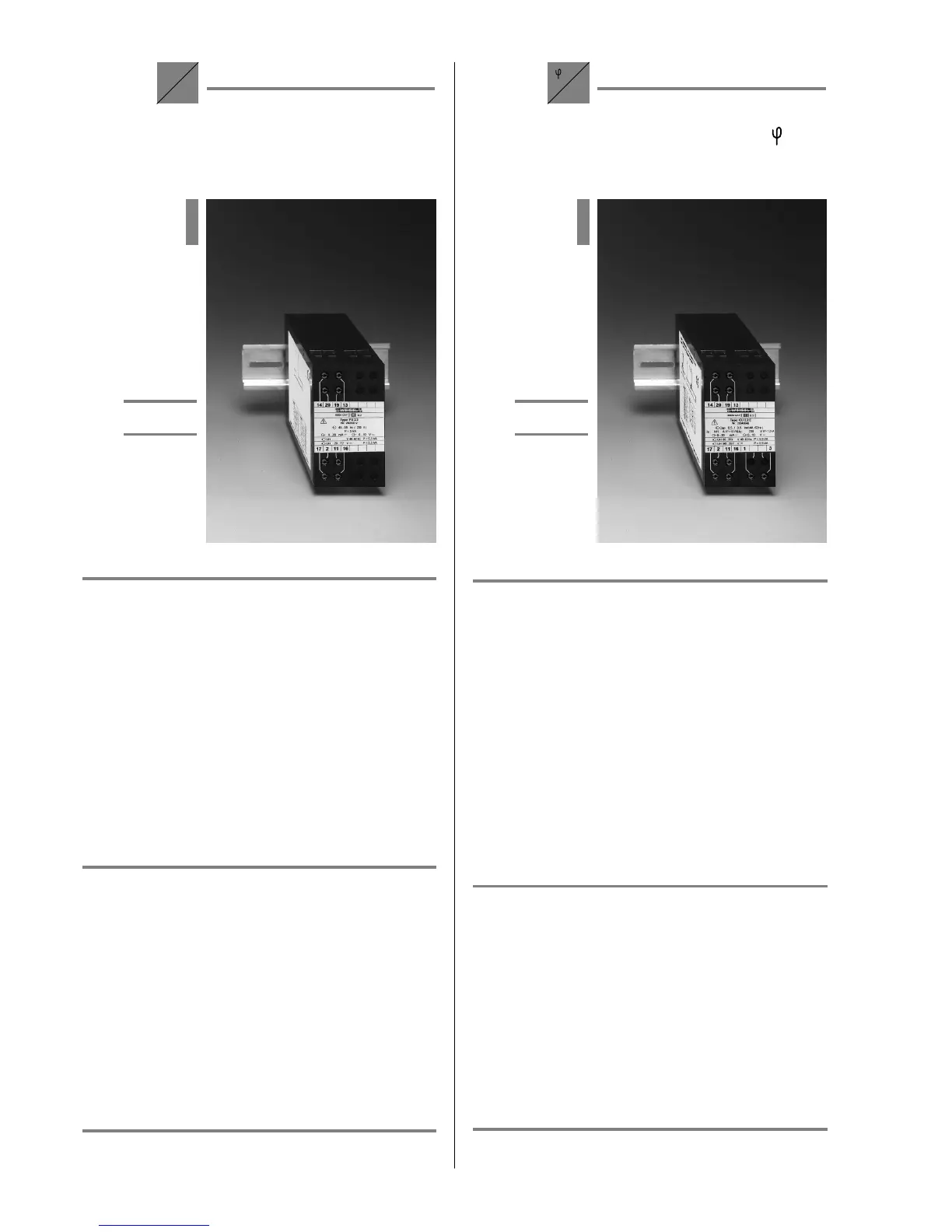

Weigel A1U 2.2 - Short Form Data: Transducer for Frequency; Short Form Data: Transducer for Phase Angle (Cos Φ)

Short Form Data
Transducer
for Frequency
FU 2.2
=
f
with mP
Inputs
input quantity AC voltage
measuring unit frequency f
E
f
Emin
≥ 14 Hz
f
Emax
≤ 500 Hz
measuring ranges f
Emin
... f
N
... f
Emax
Df class
45 ... 50 ... 55 Hz 10 Hz 0,2
48 ... 50 ... 52 Hz 4 Hz 0,3
55 ... 60 ... 65 Hz 10 Hz 0,2
58 ... 60 ... 62 Hz 4 Hz 0,5
360 ...400 ... 440 Hz 80 Hz 0,2
380 ...400 ... 420 Hz 40 Hz 0,2
other ratings on request (Df = f
Emax
–f
Emin
)
rated input voltage U
EN
100 V, 110 V, 115 V, 120 V, 230 V,
240 V, 380 V
,
400 V, 415 V
,
440 V
overload limit 1.2 U
EN
continuously
2 U
EN
1 s max.
current consumption ≤ 1 mA
Other Ratings
outputs refer to General Data
accuracy refer to measuring ranges
auxiliary voltage refer to General Data
dimensions WxHxL 45 mm x 80 mm x 115 mm
weight approx. 0.22 kg
for detailed information refer to Data Sheet No. 064.##
prices refer to Price Sheet No. 064.##
Short Form Data
Transducer for
Phase Angle (cos )
CU 2.2
=
with mP
Inputs
input quantity sinusoidal AC current / voltage
measuring unit phase angle ϕ (power factor) in
E single - phase AC system or
D 3 - phase 3 - wire balanced load system
measuring ranges
-37° ... 0 ... 37° corresponds to cos ϕ : cap 0.8 ... 1 ... 0.8 ind
-60° ... 0 ... 60° corresponds to cos ϕ : cap 0.5 ... 1 ... 0.5 ind
optional to be specified ranging from
-85° ... 0 ... 85° corresponds cos ϕ : cap 0.087 ... 1 ... 0.087 ind
rated input voltage U
EN
ranging from 50 V to 600 V
rated input current I
EN
1 A or 5 A (also for use on transformer)
or ranging from 0.5 to 5 A
modulation range 1.2 U
EN
and 1.5 I
EN
overload limits 1.2 U
EN
, 1.6 I
EN
continuously
2 U
EN
, 10 I
EN
1 s max.
frequency range 48 ... 62 Hz
power consumption <1 mA each voltage circuit
≤ 0.1 VA each current circuit for I
EN
= 1 A
≤ 1.6 VA each current circuit for I
EN
= 5 A
Other Ratings
outputs refer to General Data
accuracy class 0.5 (±0.5% of end value)
auxiliary voltage refer to General Data
dimensions WxHxL 45 mm x 80 mm x 115 mm
weight approx. 0.27 kg
for detailed information refer to Data Sheet No. 063.##
prices refer to Price Sheet No. 063.##
