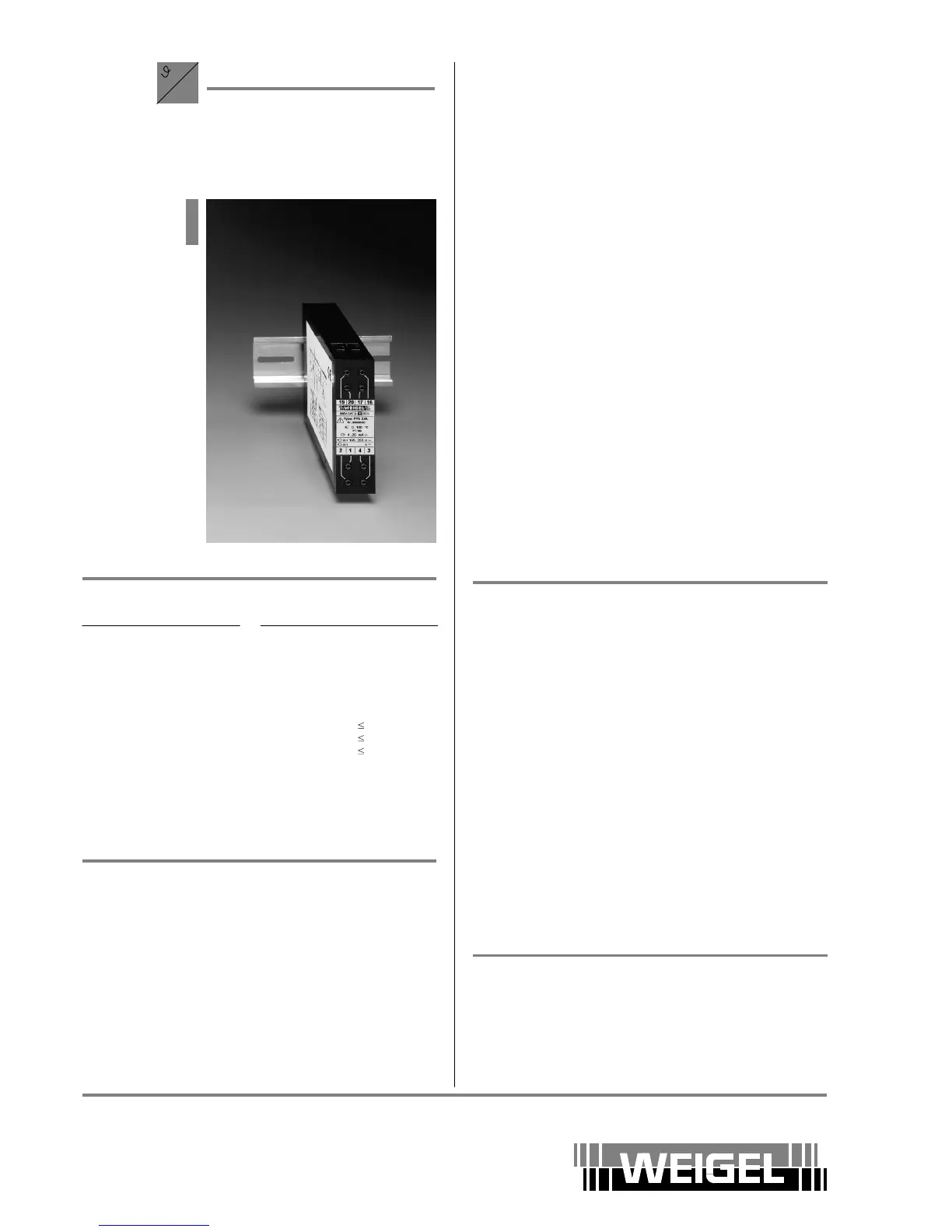

Weigel A1U 2.2 - Short Form Data: Transducers for Temperature (Pt 100)

=
Short Form Data
Transducers for
Temperature (Pt 100)
PTU 2.0 L
Inputs
input quantity temperature (for RTD Pt 100)
Initial Temperature T
E1
Spans DT
– 200 °C 100 K
– 150 °C 150 K
– 100 °C 200 K
– 50 °C 300 K
0 °C 400 K
+ 50 °C 500 K
+100 °C 600 K
+150 °C 700 K (for T
E1
100°C only)
+200 °C 800 K (for T
E1
0°C only)
900 K (for T
E1
–100°C only)
1000 K (for T
E1
= –200°C only)
or deviating from standard values in the range of 100 ... 1000 K
measuring range T
E1
... T
E2
= T
E1
+ DT
input potential–free differential input
connection 2–, 3– or 4–wire system
Outputs
current output
output current I
A
load independent DC current
rated current I
AN
4 ... 20 mA
load range R
A
0 ... 500 W (based on 20 mA)
load error ≤ 0.1% based on 50% load change
residual ripple ≤ 1%
rms
of I
AN
with load R
AN
idling voltage ≤ 16 V
response time ≤ 1 s based on R
A max
Other Ratings
accuracy ±0.5% referred to the span DT
auxiliary voltage refer to General Data
dimensions WxHxL 22.5 mm x 80 mm x 115 mm
weight approx. 0.12 kg
for detailed information refer to Data Sheet No. 050.##
prices refer to Price Sheet No. 050.##
